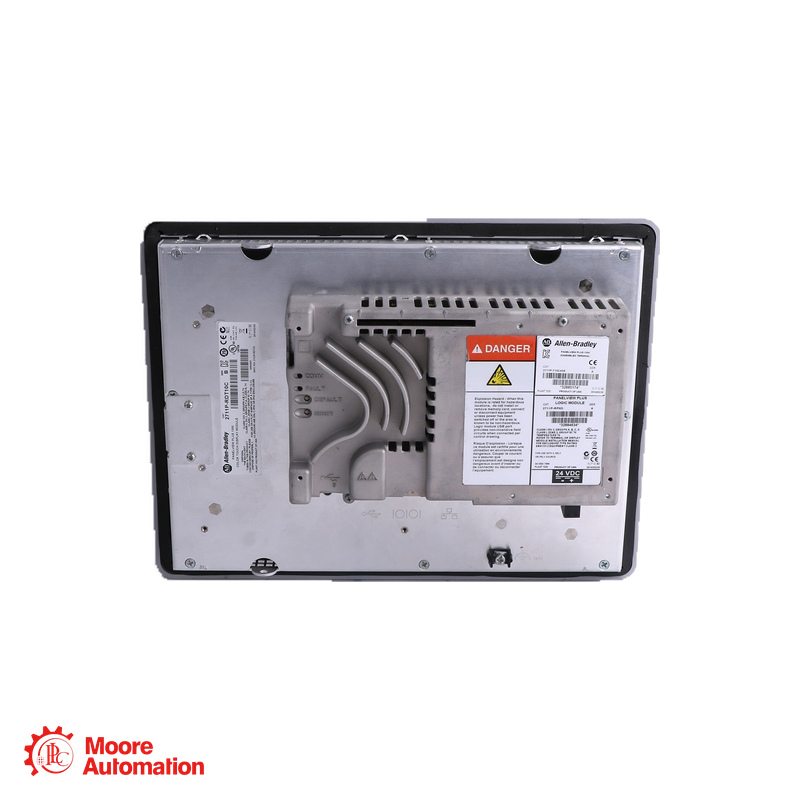

The 2711P-T10C4D8/A is a PanelView Plus 6 1000 color touch terminal. Rockwell lists a 10.4-inch TFT display, Ethernet and RS-232 communication, and 24 V DC nominal input for the base catalog number.
Brand :
Allen-BradleyPart Number :
2711P-T10C4D8/ADimension :
10.4 in color TFT; 640 × 480; Ethernet and RS-232; 24 V DC nominalHS Code :
PanelView Plus 6 1000 Color Touch TerminalDescription :
The 2711P-T10C4D8/A is a PanelView Plus 6 1000 color touch terminal with a 10.4-inch TFT display, Ethernet and RS-232 ports, and 24 V DC nominal input.Click “+” to expand more specifications.
Source: Rockwell Automation product details for base 2711P-T10C4D8 and PanelView Plus 6 technical data 2711P-TD005 support the family specifications shown here.
2711P-T10C4D8/A is supplied as a PanelView Plus 6 1000 color touch terminal for machine visualization and FactoryTalk View Machine Edition applications.
2711P-T10C4D8/A uses a 10.4-inch color active-matrix TFT screen with 640 × 480 resolution and touch input, as specified for the base catalog number.

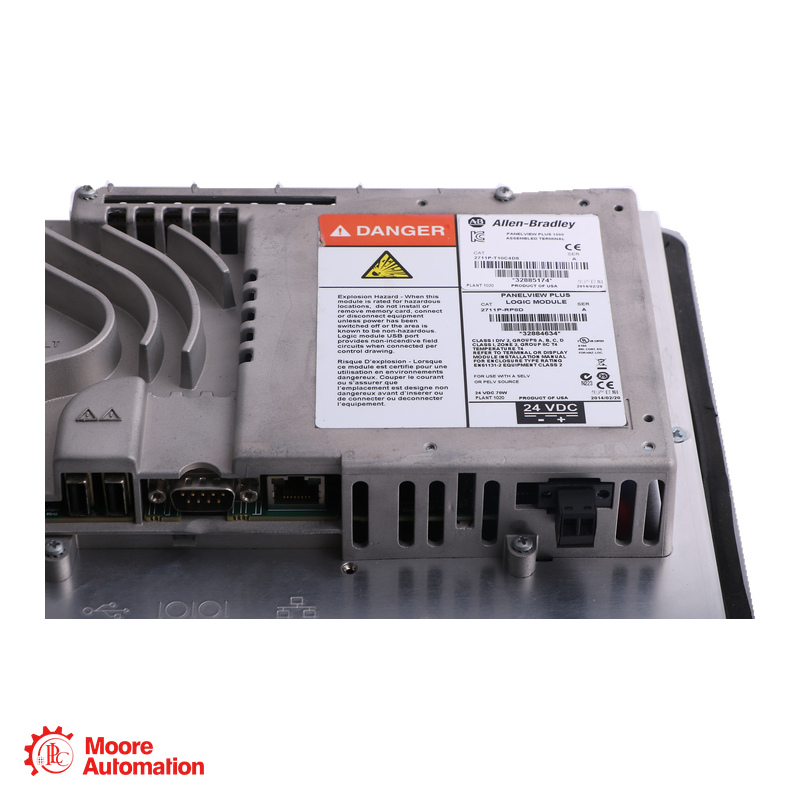

2711P-T10C4D8/A has built-in Ethernet and RS-232 communication. Rockwell also lists two USB host ports and an interface for optional communication modules.
2711P-T10C4D8/A uses 24 V DC nominal input. Match the installed power supply and wiring to the terminal nameplate and Rockwell installation instructions.
2711P-T10C4D8/A is associated with 512 MB RAM and 512 MB nonvolatile memory in Rockwell technical data for the base catalog number.
2711P-T10C4D8/A includes /A in the supplied identifier. Check the physical nameplate and revision when matching a replacement to the installed terminal.
2711P-T10C4D8/A belongs to the PanelView Plus 6 1000 family. Rockwell names 2711P-T10C22D9P as an engineering replacement for the base catalog number; check the display cutout, application and communications before migration.
Manufacturer reference information for 2711P-T10C4D8/A, a PanelView Plus 6 1000 color touch terminal.
Rockwell technical data 2711P-TD005 covers the PanelView Plus 6 1000 color touch family, including the 2711P-T10C4D8 base catalog number. It lists display, power, memory and port specifications.
OPEN OFFICIAL TECHNICAL PDFSend the complete model, quantity, nameplate photos and your technical or purchasing question.
Technical statements use Rockwell Automation product details for base 2711P-T10C4D8 and PanelView Plus 6 technical data 2711P-TD005; verify the /A marking against the supplied nameplate.
The supplied identifier 2711P-T10C4D8/A includes the /A marking. Rockwell Automation lists base 2711P-T10C4D8 as a PanelView Plus 6 1000 touch terminal with a 10.4-inch color TFT display. The official product record specifies Ethernet and RS-232 communication and 24 V DC nominal input.
The complete supplied identifier, including its /A marking.
The base catalog number has built-in Ethernet and RS-232 communication.
10.4-inch color TFT display with 640 × 480 pixels and touch input.
Match the /A marking to the installed unit nameplate when ordering.
The touch terminal runs FactoryTalk View Machine Edition operator applications.
The 1000 model uses a 224 × 305 mm panel cutout according to Rockwell product details.
The color TFT and resistive touch screen provide local display and operator input.
Check the /A marking, 24 V DC supply, installed communication paths and project application before replacement.
