Brand :
PLCPart Number :
1747-L514Weight :
0.3 kgDimension :
15.2x5.1x15.2 cmCountry of Origin :
USAHS Code :
8537101190Description :

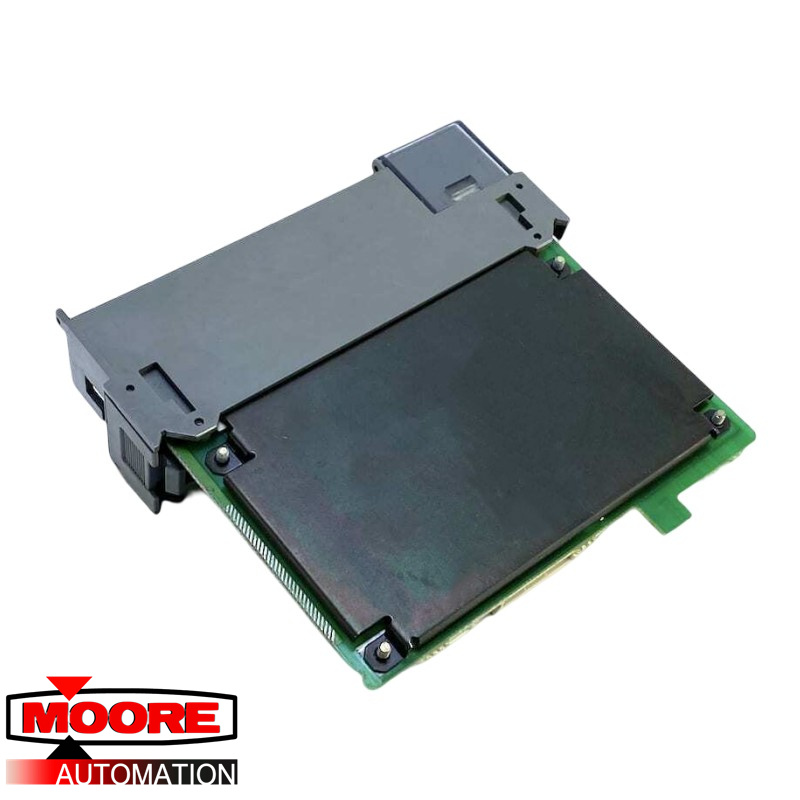

SLC 5/01 ControllerThe 1747-L514 by PLC is an SLC 500 modular processor that can hold up to a maximum of 4000 instructions in user memory. It has 960 input/output points maximum and 480 analog input/output points. At 5 Volts DC, the 1747-L514 processors require up to .09 Amps. It offers compatibility with the 1747-M1 and M2 memory modules and the M5 adapter socket. The local input/output chassis has a maximum of 30 slots, with a maximum of 3 chassis installable. It has a battery backup for the standard RAM with an expected lifespan of 2 years. An EEPROM backup is also available, but this is optional. The backplane current load at 5 Volts DC is 350 milliamps and 105 milliamps at 24 Volts DC.
