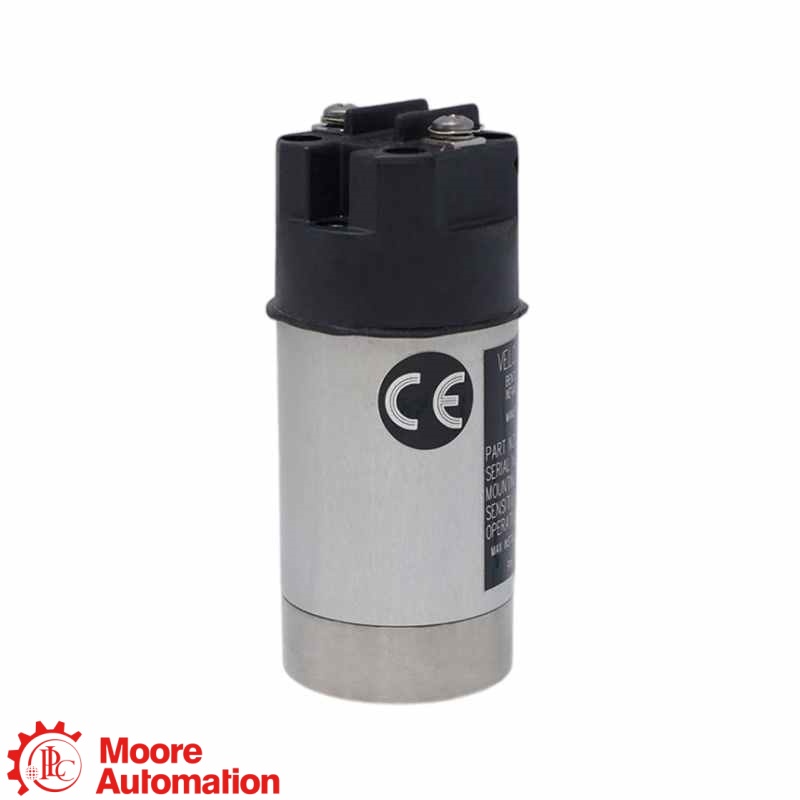

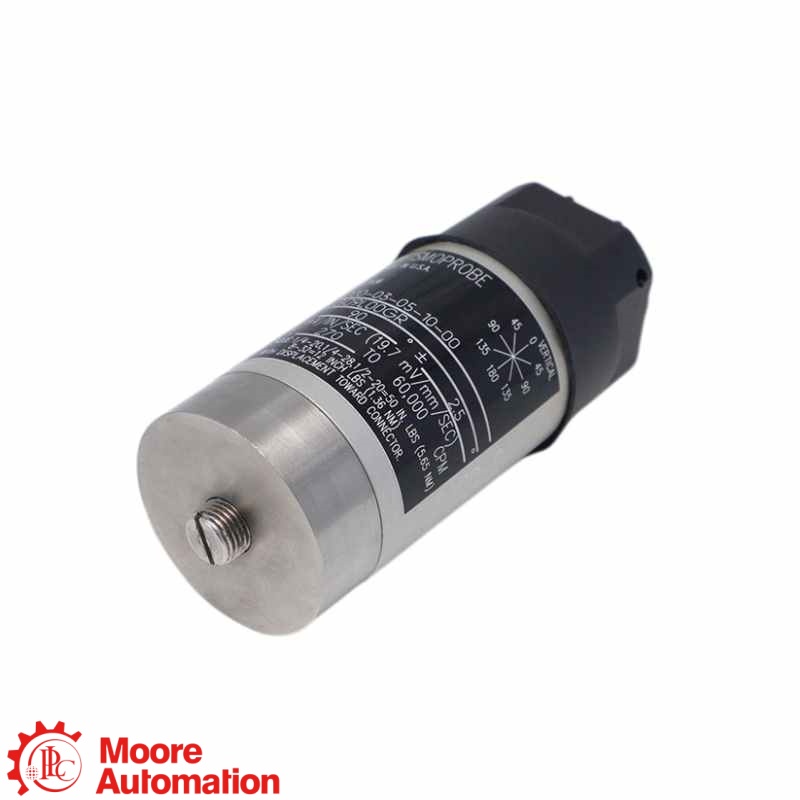

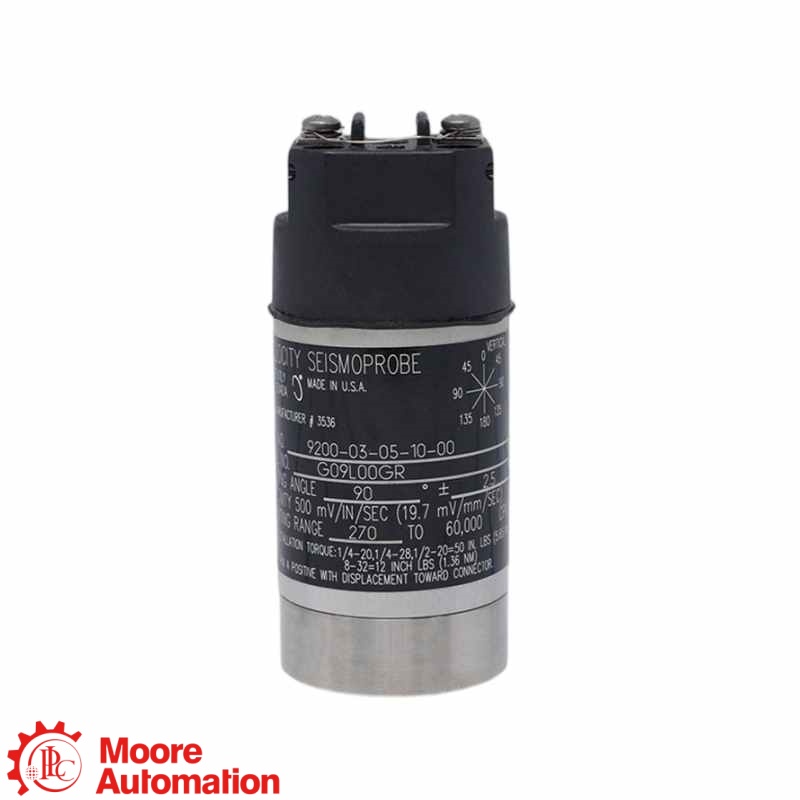

Bently Nevada 9200-03-02-02-00 Seismoprobe Velocity Transducer

TWO-WIRE · VELOCITY SENSOR

9200-03-02-02-00

9200-03-02-02-00 — A two-wire moving-coil Seismoprobe for bearing-housing, casing and structural vibration measurements.

MOUNTING ANGLE90° ±2.5°

CONNECTORSide mount

MOUNTING BASE1/4-28 UNF

APPROVALSNone

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● SEISMOPROBE 9200

SEISMOPROBE VELOCITY TRANSDUCER

9200-03-02-02-00

90° · SIDE MOUNT · 1/4-28 UNF · NO APPROVALS

Two-wire Moving-Coil Velocity Transducer

MEASUREMENT ROLE

9200-03-02-02-00 — A two-wire moving-coil transducer for absolute bearing-housing, casing and structural vibration measurement.

CONFIGURATION NOTE

03 = 90° mounting and 4.5 Hz minimum frequency; first 02 = side-mount connector; second 02 = circular 1/4-28 UNF base; 00 = no agency approvals.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 9200-03-02-02-00 order number is structured

9200

Transducer familyTwo-wire Seismoprobe velocity transducer

Mounting angle90° ±2.5°; 4.5 Hz minimum frequency

Connector optionSide mount; no integral cable

Mounting baseCircular base; 1/4-28 UNF stud

Agency approvalNo agency approvals

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

9200 Seismoprobe ↗

9200-03-02-02-00

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT102 mm typical

DIAMETER41 mm typical

WEIGHT300 g typical

FREQUENCY4.5–1000 Hz

Official Baker Hughes 9200 data; dimensions vary with connector option.

Configuration checkConfirm the complete 9200-03-02-02-00 reference, mounting orientation, connector, base, wiring and monitor input before ordering.

General Information −

BrandBently Nevada

Part number9200-03-02-02-00

Product typeTwo-wire moving-coil velocity transducer

Product familySeismoprobe 9200

MeasurementAbsolute bearing-housing, casing or structural vibration

OutputVoltage proportional to vibration velocity

Electrical and Performance ＋

Sensitivity20 mV/mm/s (500 mV/in/s) ±5%

Frequency response4.5 to 1000 Hz; +0, -3 dB typical

Calibration load10 kΩ across pins A and B

Velocity range25 mm/s (1 in/s) at stated conditions

Dynamic operating range2.54 mm peak-to-peak maximum displacement

Coil resistance1.25 kΩ ±5%

Mechanical Configuration ＋

Mounting angle option 0390° ±2.5°

Connector option 02Side mount; no integral cable

Mounting base option 02Circular base; 1/4-28 UNF stud

Height102 mm (4 in) typical

Diameter41 mm (1.6 in) typical

Weight300 g (10.5 oz) typical

Environment and Installation ＋

Operating and storage temperature-29°C to +121°C (-20°F to +250°F)

Relative humidityTo 95% noncondensing

Maximum altitude2000 m (6561 ft)

Lead-wire distanceUp to 305 m (1000 ft) to compatible monitor

Agency approval option 00No agency approvals

InstallationMount on the bearing housing or machine casing

Source: Bently Nevada 141626 Rev. V. Values shown are the manufacturer’s published 9200 data and the selected 03-02-02-00 ordering options.

FAQ

Questions Buyers Ask Most

What type of product is 9200-03-02-02-00?＋

9200-03-02-02-00 is a two-wire, self-powered moving-coil Seismoprobe velocity transducer for measuring absolute machine vibration.

What do the option groups in 9200-03-02-02-00 identify?＋

For 9200-03-02-02-00, 03 specifies 90° mounting with a 4.5 Hz minimum frequency; the first 02 is the side-mount connector; the second 02 is the circular 1/4-28 UNF base; and 00 means no agency approvals.

What frequency response applies to 9200-03-02-02-00?＋

9200-03-02-02-00 uses option 03, giving a 4.5 to 1000 Hz response of +0, -3 dB typical under the manufacturer’s stated conditions.

Where is 9200-03-02-02-00 applied?＋

9200-03-02-02-00 is used for bearing-housing, machine-casing and structural vibration measurements, including continuous monitoring or periodic diagnostic measurements.

What should be checked before ordering 9200-03-02-02-00?＋

Confirm the complete 9200-03-02-02-00 order code, 90° mounting orientation, side-mount connector, 1/4-28 base, wiring, monitor compatibility, installation environment and required approvals.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
9200-03-02-02-00

Official Bently Nevada documentation for the 9200 and 74712 Seismoprobe velocity transducer family, including the complete 9200 ordering table.

9200 and 74712 Seismoprobe Velocity Transducers

Bently Nevada 141626 Rev. V. Check the 9200 ordering table, specifications and installation guidance.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are limited to publicly available Bently Nevada / Baker Hughes manufacturer documentation. No third-party product sources were used.

SEISMOPROBE SYSTEM RELATIONSHIP

How 9200-03-02-02-00 Fits into a Vibration-Monitoring System

Bently Nevada is the manufacturer. 9200-03-02-02-00 is a self-powered two-wire moving-coil velocity transducer. Match it to the installed cable, monitor or portable diagnostic instrument.

Bently Nevada · BRAND

9200 SeismoprobeVELOCITY TRANSDUCER

SENSING COMPONENT

9200 Transducer

The moving-coil transducer generates a voltage directly proportional to vibration velocity.

INTERCONNECTION

Two-Wire Cable

Use the appropriate two-conductor cable and observe pin polarity and allowable lead length.

MONITORING

Monitor or Diagnostic Instrument

Connect to a compatible 3300 or 3500 monitor, test set or portable diagnostic instrument.

System relationship: verify mounting orientation, base, wiring, polarity, monitor input and measurement location before replacement.

APPLICATION AREAS

Application fields for 9200-03-02-02-00

Bearing Housing VibrationMeasures absolute vibration at bearing housings for machinery monitoring.

Machine Casing VibrationMeasures casing vibration where rotor motion is transmitted to the machine housing.

APPLICATION CENTER9200-03-02-02-00Two-wire Seismoprobe velocity transducer

Structural VibrationMeasures absolute vibration of suitable machinery structures.

Portable DiagnosticsSupports periodic measurements with compatible test or diagnostic instruments.
