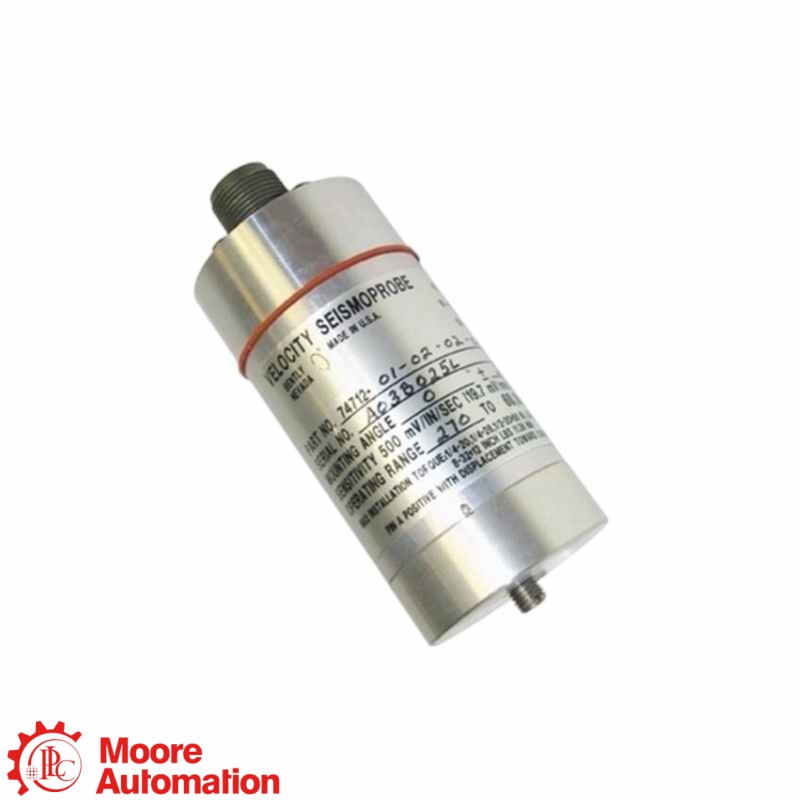

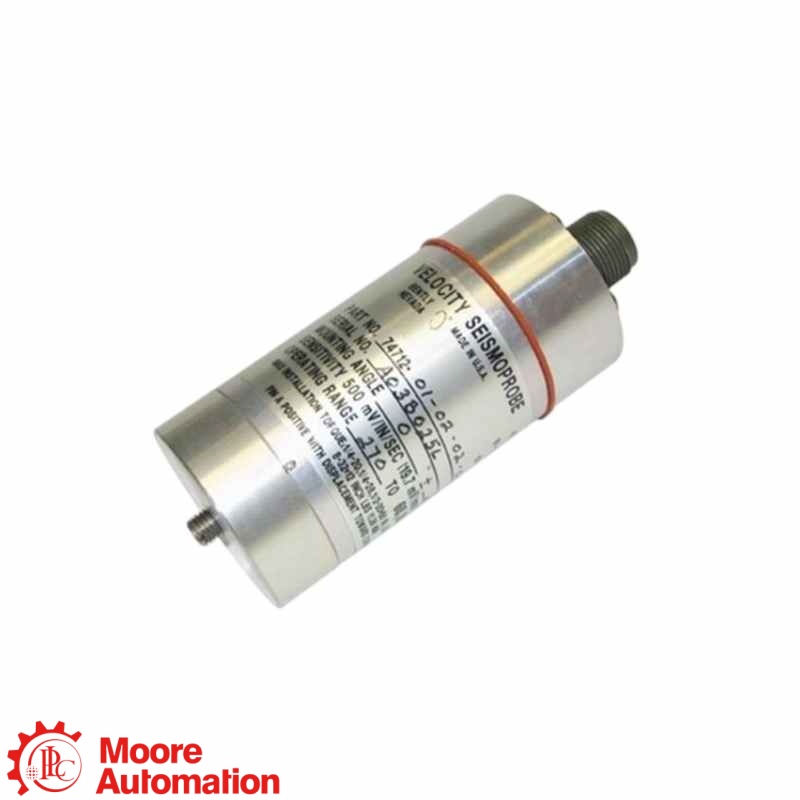

Bently Nevada 74712-06-03-04-00 High-Temperature Seismoprobe Velocity Transducer

HIGH-TEMPERATURE · VELOCITY

74712-06-03-04-00

74712-06-03-04-00 — A high-temperature moving-coil velocity transducer for absolute bearing-housing, casing and structural vibration measurement.

TYPEHigh-temp

FREQUENCY10–1000 Hz

MOUNTING BASERectangular flange

CONNECTORSide mount

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 74712 SEISMOPROBE

HIGH-TEMPERATURE SEISMOPROBE VELOCITY TRANSDUCER

74712-06-03-04-00

10–1000 Hz · Rectangular flange · Side mount

High-Temperature Seismoprobe Velocity Transducer

MEASUREMENT ROLE

74712-06-03-04-00 — A high-temperature two-wire moving-coil transducer for absolute bearing-housing, casing and structural vibration measurement.

CONFIGURATION NOTE

06 = 0° mounting orientation with 10 Hz minimum operating frequency; 03 = rectangular-flange mounting base; 04 = side-mount connector; 00 = no agency approvals.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

74712

Base modelhigh-temperature two-wire Seismoprobe

Orientation / frequency0° · 10 Hz minimum

Mounting baseRectangular flange

ConnectorSide mount

ApprovalNo approvals

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

9200 / 74712 Official PDF ↗

74712 SEISMOPROBE

Engineering data at a glance

Click “+” to expand more specifications.

TYPEHigh-temp

FREQUENCY10–1000 Hz

MOUNTING BASERectangular flange

CONNECTORSide mount

Configuration from manufacturer ordering data.

Configuration check Confirm mounting orientation, 10 Hz minimum frequency, rectangular-flange base, side-mount connector, temperature limits and monitor input before ordering.

General Information −

BrandBently Nevada

Part number74712-06-03-04-00

Product typehigh-temperature velocity transducer

Product family74712 Seismoprobe

Measurement principleMoving-coil · two-wire

OutputVelocity-proportional voltage

Detailed Measurement Data ＋

Sensitivity20 mV/mm/s (500 mV/in/s) ±5%

Frequency response10 to 1000 Hz (+0, -3 dB typical)

Coil resistance1.25 kΩ ±5%

Cable and Installation ＋

Mounting orientation0° mounting orientation

Minimum operating frequency10 Hz

Mounting baseRectangular flange

Connector optionSide mount

Agency approvalOption 00 · no approvals

Environment and Documentation ＋

Operating and storage temperature: -29°C to +204°C. Confirm orientation, cable, load, installation surface and monitoring input for the exact application.

Source: Bently Nevada 141626 Rev. V. System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.

FAQ

Questions Buyers Ask Most

What is 74712-06-03-04-00 used for?＋

74712-06-03-04-00 is a high-temperature two-wire Seismoprobe velocity transducer used to measure absolute bearing-housing, casing or structural vibration in compatible machinery-monitoring applications.

What does the 74712-06-03-04-00 code specify?＋

For 74712-06-03-04-00, 06 defines 0° orientation and 10 Hz minimum frequency; 03 is the rectangular-flange base; 04 is the side-mount connector; final 00 means no approvals.

Can 74712-06-03-04-00 be substituted with a similar part number?＋

Do not substitute 74712-06-03-04-00 by appearance or family name alone. Compare the full order code, mounting angle, minimum frequency, mounting base, connector, approvals and compatible monitor or diagnostic-instrument input.

Is 74712-06-03-04-00 a complete measurement system?＋

No. 74712-06-03-04-00 is the sensing transducer, not a complete display or protection system. Use a compatible interconnect cable and monitoring or diagnostic instrument input with the required termination.

What should I provide for a 74712-06-03-04-00 quotation?＋

Send the complete 74712-06-03-04-00 nameplate, quantity, mounting orientation, base and connector requirements, installed monitoring system and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
74712-06-03-04-00

Official manufacturer documentation for Bently Nevada high-temperature seismoprobe velocity transducer 74712-06-03-04-00.

Official manufacturer datasheet

Bently Nevada datasheet 141626 identifies the 74712 Seismoprobe and defines the 06, 03, 04 and 00 ordering options used in this complete reference.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use Bently Nevada / Baker Hughes datasheet 141626 Rev. V.

SEISMOPROBE MEASUREMENT RELATIONSHIP

How 74712-06-03-04-00 Fits into the Vibration Measurement Chain

Bently Nevada is the manufacturer. 74712-06-03-04-00 is a high-temperature two-wire Seismoprobe velocity transducer. It must be matched to compatible cabling and a suitable monitoring or diagnostic-instrument input.

Bently Nevada · BRAND

Seismoprobe Velocity SystemPRODUCT FAMILY · MEASUREMENT CHAIN

SENSING TRANSDUCER

Transducer

The 74712 moving-coil transducer produces a voltage output proportional to vibration velocity. Confirm the complete mounting and connector options.

INTERCONNECTION

Interconnect Cable

A suitable cable connects the two-wire transducer to the monitoring or diagnostic instrument while maintaining the required termination and environment rating.

MONITORING INPUT

Monitor / Instrument

The Monitor / Instrument conditions the probe signal into a voltage output for monitoring and machinery protection equipment.

System relationship: the transducer orientation, base, connector, cable, load and monitoring input must match the documented Seismoprobe requirements.

APPLICATION AREAS

Application areas for 74712-06-03-04-00

High-Temperature Vibration MonitoringMeasures absolute vibration where the 74712 high-temperature operating range is required.

Bearing Housing VibrationMeasures vibration velocity at compatible machine bearing housings.

APPLICATION CENTER 74712-06-03-04-00 High-Temperature Seismoprobe Velocity Transducer

Machine Casing VibrationSupports absolute casing-vibration measurement on compatible rotating machinery.

Structural VibrationSupports structural-vibration measurement at a suitable rigid mounting location.
