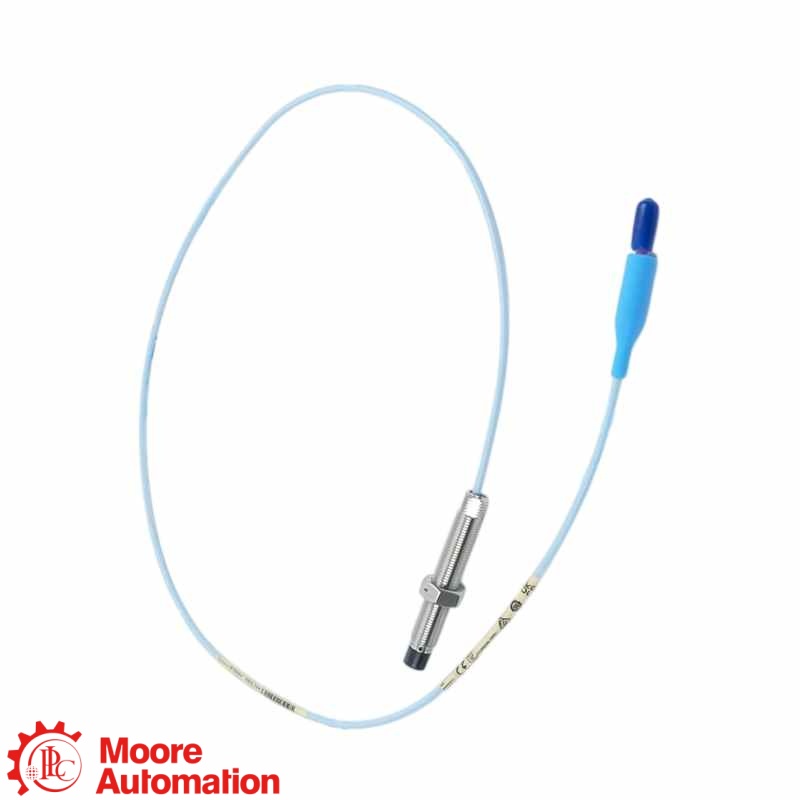

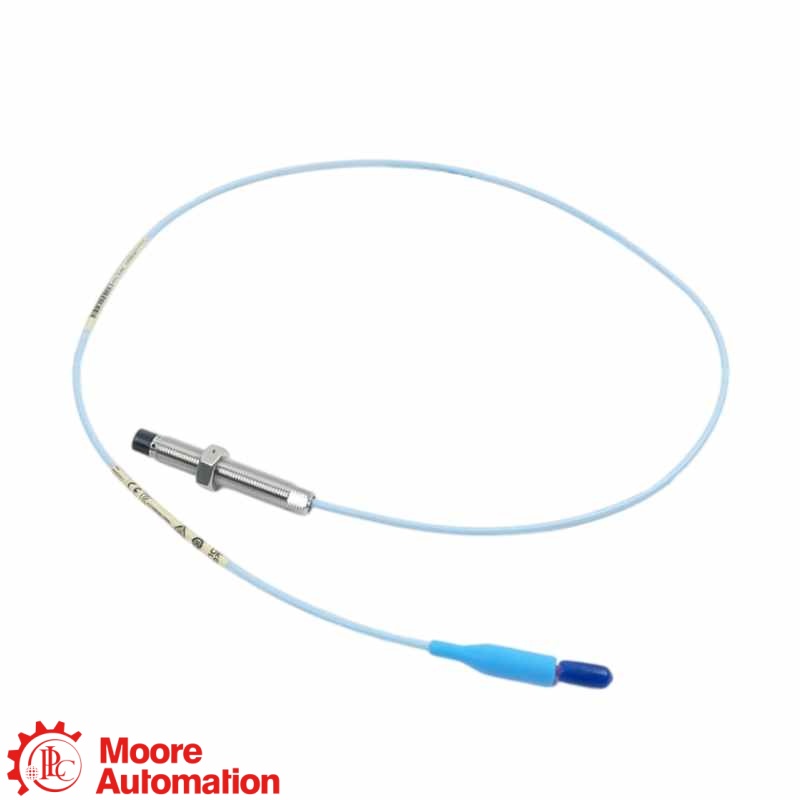

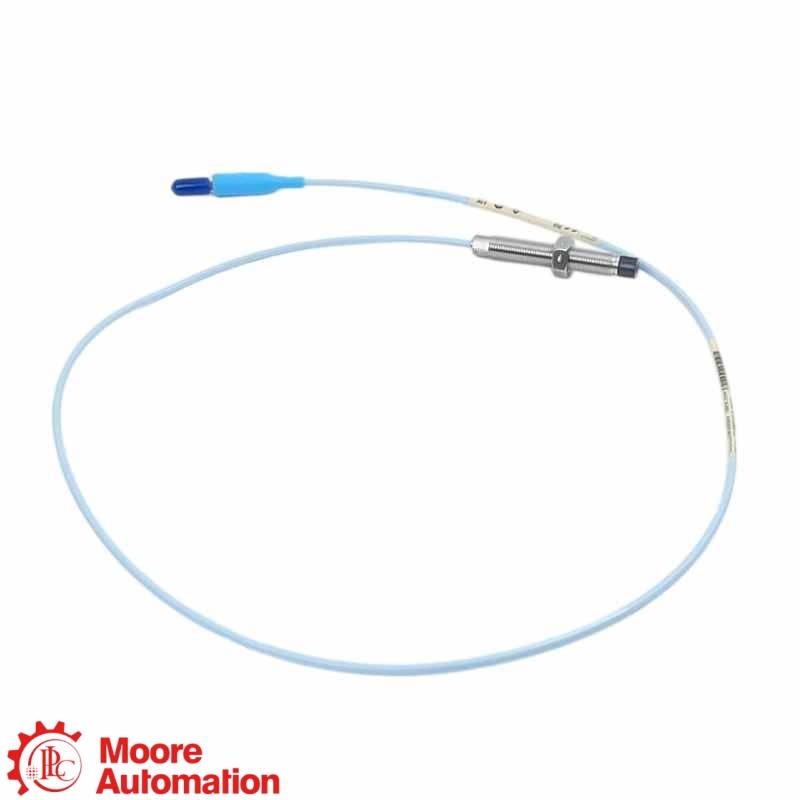

Bently Nevada 330701-00-25-90-02-00 3300 XL 11 mm Proximity Probe

11 mm · UNARMORED PROBE

330701-00-25-90-02-00

330701-00-25-90-02-00 — An unarmored 1/2-20 UNF proximity probe for Bently Nevada 3300 XL 11 mm machinery-monitoring systems.

TIP11 mm

THREAD1/2-20 UNF

CASE2.5 in

TOTAL LENGTH9.0 m

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3300 XL 11 MM

3300 XL 11 MM PROXIMITY TRANSDUCER SYSTEM

330701-00-25-90-02-00

11 mm · 1/2-20 UNF · 2.5 in · 9.0 m

3300 XL 11 mm Unarmored Proximity Probe

MEASUREMENT ROLE

330701-00-25-90-02-00 — An unarmored 1/2-20 UNF proximity probe for the Bently Nevada 3300 XL 11 mm Proximity Transducer System.

CONFIGURATION NOTE

00 = 0.0 in unthreaded length; 25 = 2.5 in overall case length; 90 = 9.0 m total length; 02 = miniature coaxial ClickLoc connector with standard cable; final 00 = no agency approvals.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

330701

Base model11 mm · 1/2-20 UNF · unarmored

Unthreaded0 mm

Case length2.5 in

Total length9.0 m

02-00

Connector / approvalClickLoc · standard cable · no approvals

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

3300 XL 11 mm Family ↗

3300 XL 11 MM FAMILY

Engineering data at a glance

Click “+” to expand more specifications.

TIP11 mm

THREAD1/2-20 UNF

CASE2.5 in

TOTAL LENGTH9.0 m

Configuration from manufacturer ordering data.

Configuration check Confirm the 1/2-20 UNF mounting, 2.5-inch case, 9-meter probe length, connector, approvals and compatible 3300 XL 11 mm system before ordering.

General Information −

BrandBently Nevada

Part number330701-00-25-90-02-00

Product type11 mm unarmored proximity probe

Product family3300 XL 11 mm

MountingStandard mount · unarmored cable

Thread1/2-20 UNF

Detailed Measurement Data ＋

System linear range4.0 mm (160 mil)

Nominal system scale factor3.94 V/mm (100 mV/mil)

Recommended system gap2.5 mm (100 mil)

Cable and Installation ＋

Unthreaded length0.0 in

Case length2.5 in

Total probe length9.0 m

Connector / approvalOption 02 ClickLoc with standard cable; option 00 no approvals

Thread and armor1/2-20 UNF standard mount; without armor

Environment and Documentation ＋

Verify the 9.0 m probe with compatible 3300 XL 11 mm extension-cable and Proximitor Sensor lengths, installation geometry, target material and monitoring configuration.

Source: Bently Nevada 146256 Rev. T. System values require the complete compatible transducer configuration and the manufacturer’s stated conditions.

FAQ

Questions Buyers Ask Most

What is 330701-00-25-90-02-00 used for?＋

330701-00-25-90-02-00 is an unarmored 1/2-20 UNF proximity probe for the 3300 XL 11 mm system, used for radial or axial position, vibration, differential expansion, rod-position, tachometer and Keyphasor measurements.

What does the 330701-00-25-90-02-00 code specify?＋

For 330701-00-25-90-02-00, 00 = 0.0 in unthreaded length; 25 = 2.5 in case length; 90 = 9.0 m total length; 02 = ClickLoc with standard cable; and final 00 = no agency approvals.

Can 330701-00-25-90-02-00 be substituted with a similar part number?＋

Do not substitute 330701-00-25-90-02-00 by appearance or family name alone. Compare the full order code, 1/2-20 UNF thread, unarmored construction, 2.5 in case, 9.0 m length, connector/cable type and installed system configuration.

Is 330701-00-25-90-02-00 a complete measurement system?＋

No. 330701-00-25-90-02-00 is not a complete system. It must be used with compatible 3300 XL 11 mm extension-cable, Proximitor Sensor and monitoring components; confirm that the complete system length matches the installed configuration.

What should I provide for a 330701-00-25-90-02-00 quotation?＋

Send the complete 330701-00-25-90-02-00 nameplate, quantity, installed 3300 XL 11 mm system length, target material, required approvals and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete label and system details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330701-00-25-90-02-00

Official manufacturer documentation for Bently Nevada 3300 XL 11 mm proximity probe 330701-00-25-90-02-00.

Official manufacturer datasheet

Bently Nevada datasheet 146256 identifies 330701 as an unarmored 1/2-20 UNF 3300 XL 11 mm probe and defines the 00, 25, 90, 02 and final 00 ordering options.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use Bently Nevada / Baker Hughes datasheet 146256 Rev. T.

3300 XL SYSTEM RELATIONSHIP

How 330701-00-25-90-02-00 Fits into the Measurement System

Bently Nevada is the manufacturer. 330701-00-25-90-02-00 is a 3300 XL 11 mm unarmored 1/2-20 UNF proximity probe. It must be matched to compatible 3300 XL 11 mm system components.

Bently Nevada · BRAND

3300 XL 11 mm SystemPRODUCT FAMILY · COMPLETE SYSTEM

SENSING COMPONENT

Probe

The 330701 probe is the sensing component. Confirm the 1/2-20 UNF thread, unarmored construction, 2.5 in case, 9.0 m length and full suffix before replacement.

INTERCONNECTION

Extension Cable

The extension cable links the probe to the Proximitor Sensor and helps establish the required electrical system length.

SIGNAL CONDITIONING

Proximitor Sensor

The Proximitor Sensor conditions the probe signal into a voltage output for monitoring and machinery protection equipment.

System relationship: compatible component types and total system length must match the Bently Nevada 3300 XL 11 mm system requirements.

APPLICATION AREAS

Application areas for 330701-00-25-90-02-00

Axial Position MeasurementMeasures axial or thrust position where the longer 11 mm system linear range is required.

Ramp Differential ExpansionSupports ramp differential-expansion measurement on compatible steam-turbine applications.

APPLICATION CENTER 330701-00-25-90-02-00 3300 XL 11 mm Unarmored Proximity Probe

Rod Position or Rod DropSupports rod-position or rod-drop measurement on compatible reciprocating compressors.

Tachometer and Zero SpeedSupports tachometer and zero-speed measurement in a compatible 3300 XL 11 mm system.
