Products

Home /

Bently Nevada

/Bently Nevada 330193-00-02-15-00 3300 XL 8 mm ETR Proximity Probe

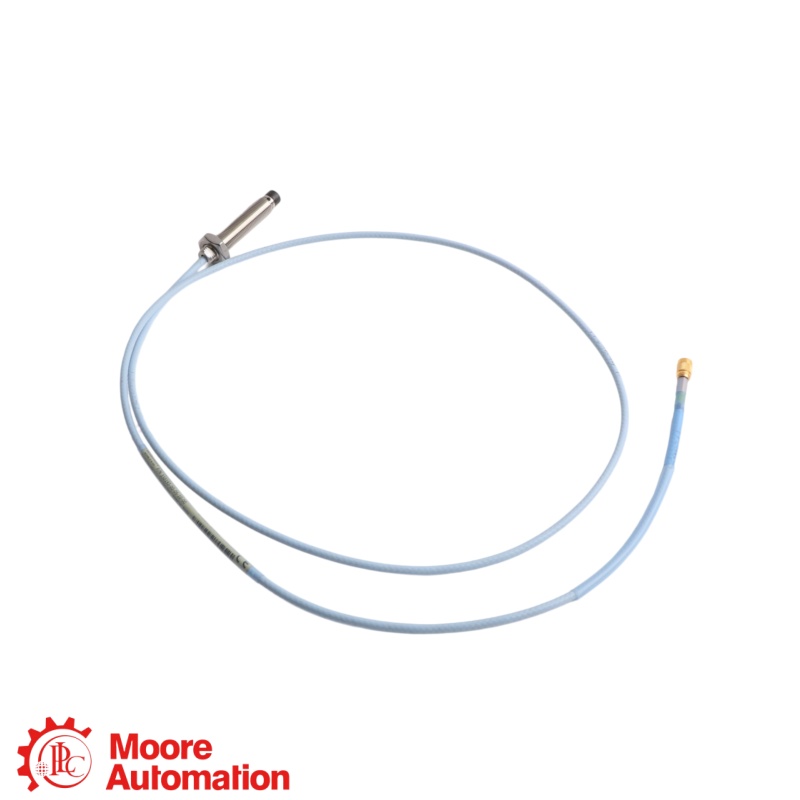

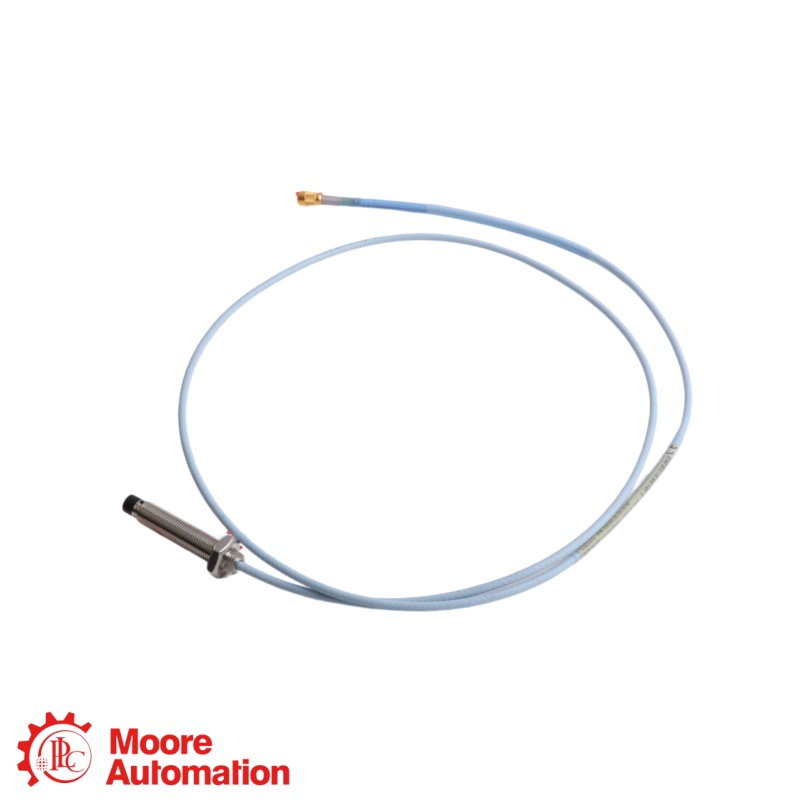

Bently Nevada 330193-00-02-15-00 3300 XL 8 mm ETR Proximity Probe

3300 XL 8 MM · ETR PROXIMITY PROBE

330193-00-02-15-00

330193-00-02-15-00 — a Bently Nevada 3300 XL 8 mm extended-temperature-range probe with M10 x 1 case thread, no armor, 0 mm unthreaded length, 20 mm case length, 1.5 m total length and approval option 00.

UNTHREADED0 mm

CASE LENGTH20 mm

TOTAL LENGTH1.5 m

THREADM10 x 1

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3300 XL 8 MM ETR PROXIMITY PROBE

3300 XL 8 MM ETR PROXIMITY PROBE

330193-00-02-15-00

M10 x 1 · 1.5 m · ETR

3300 XL 8 mm ETR Proximity Probe

EXTENDED-TEMPERATURE PROXIMITY MEASUREMENT

330193-00-02-15-00 — A Bently Nevada 3300 XL 8 mm extended-temperature-range probe with M10 x 1 case thread, no armor, 0 mm unthreaded length, 20 mm case length, 1.5 m total length and approval option 00.

CONFIGURATION NOTE

330193 identifies the 3300 XL 8 mm unarmored ETR M10 x 1 probe; 00 and 02 specify 0 mm unthreaded and 20 mm overall case lengths; 15 gives 1.5 m total length; final 00 means agency approval is not required.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

330193

Base probe3300 XL 8 mm ETR · M10 x 1 · no armor

Unthreaded length0 mm

Overall case length20 mm

Total probe length1.5 m

Agency approvalNot required

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗

3300 XL 8 MM ETR PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

UNTHREADED0 mm

CASE LENGTH20 mm

TOTAL LENGTH1.5 m

THREADM10 x 1

Exact-model configuration and engineering data.

Configuration note 330193 identifies the 3300 XL 8 mm unarmored ETR M10 x 1 probe; 00 and 02 specify 0 mm unthreaded and 20 mm overall case lengths; 15 gives 1.5 m total length; final 00 means agency approval is not required.

General Information −

BrandBently Nevada

Part number330193-00-02-15-00

Product typeETR Proximity Probe

Product family3300 XL 8 mm Transducer System

Case threadM10 x 1

ArmorNone

Probe Geometry and Length ＋

Unthreaded length00 · 0 mm

Overall case length02 · 20 mm

Probe total length15 · 1.5 m

Temperature and Approval ＋

ETR probe ratingUp to 218 °C

System compatibility3300 XL standard / ETR components

Agency approval00 · Not required

Transducer System Role ＋

This extended-temperature-range probe is the sensing end of a compatible 3300 XL 8 mm system. Select a compatible extension cable and Proximitor Sensor so the combined probe and cable lengths match the selected system length; any ETR component limits system accuracy to ETR-system accuracy.

Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194.

FAQ

Questions Buyers Ask Most

What does 330193-00-02-15-00 identify?＋

330193-00-02-15-00 is an unarmored M10 x 1 3300 XL 8 mm ETR proximity probe, rated by the manufacturer for probe-lead temperatures up to 218 °C.

What mounting geometry is coded by 00 and 02 on 330193-00-02-15-00?＋

330193-00-02-15-00 has 0 mm unthreaded length and a 20 mm overall case length; verify the M10 x 1 installation thread and available clearance.

What does 15 mean in 330193-00-02-15-00?＋

The 15 field makes 330193-00-02-15-00 a 1.5 m total-length probe. Select extension cable and Proximitor Sensor lengths for the complete matched system.

What approval status is selected for 330193-00-02-15-00?＋

The final 00 on 330193-00-02-15-00 is the manufacturer option for approval not required. If the installation requires agency approval, check the exact permitted ordering option and supplied marking.

What should be sent with a 330193-00-02-15-00 order?＋

Send the complete 330193-00-02-15-00 code, M10 x 1 mounting details, 20 mm case fit, required matched system length, ETR application, quantity and destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330193-00-02-15-00 label, mounting geometry, matched Proximitor Sensor selection, site approval requirement and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330193-00-02-15-00

Manufacturer ordering information for the metric 330193 extended-temperature-range 3300 XL 8 mm probe and this complete configuration.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 lists the unarmored M10 x 1 330193 ETR probe and defines its 00, 02, 15 and 00 ordering fields.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM RELATIONSHIP

How 330193-00-02-15-00 Fits into the 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330193-00-02-15-00 is the 8 mm ETR sensing probe. Its tip faces a conductive shaft surface; use compatible extension cable and Proximitor Sensor components for the required total system length.

Bently Nevada · BRAND

Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM

SENSING TARGET

Conductive Shaft Surface

The probe tip senses shaft-to-tip distance without contact.

EXTENSION CABLE

Match System Length

Select the extension cable for the intended overall system length.

PROXIMITOR SENSOR

Signal Conditioning

A compatible 3300 XL Proximitor Sensor converts the probe signal for monitoring.

System relationship: the 1.5 m ETR probe and compatible extension cable must together match the Proximitor Sensor total system length.

APPLICATION AREAS

Functions and application roles for 330193-00-02-15-00

Shaft VibrationUse within a matched 3300 XL 8 mm system for non-contact shaft-vibration measurement.

Shaft PositionUse the transducer system to measure static shaft position at a conductive target.

APPLICATION CENTER 330193-00-02-15-00 3300 XL 8 mm ETR Proximity Probe

Keyphasor ReferenceA properly installed proximity system can provide speed or phase-reference signals.

Fluid-Film BearingsThe 3300 XL 8 mm system is applied to vibration and position measurement on fluid-film bearing machines.
