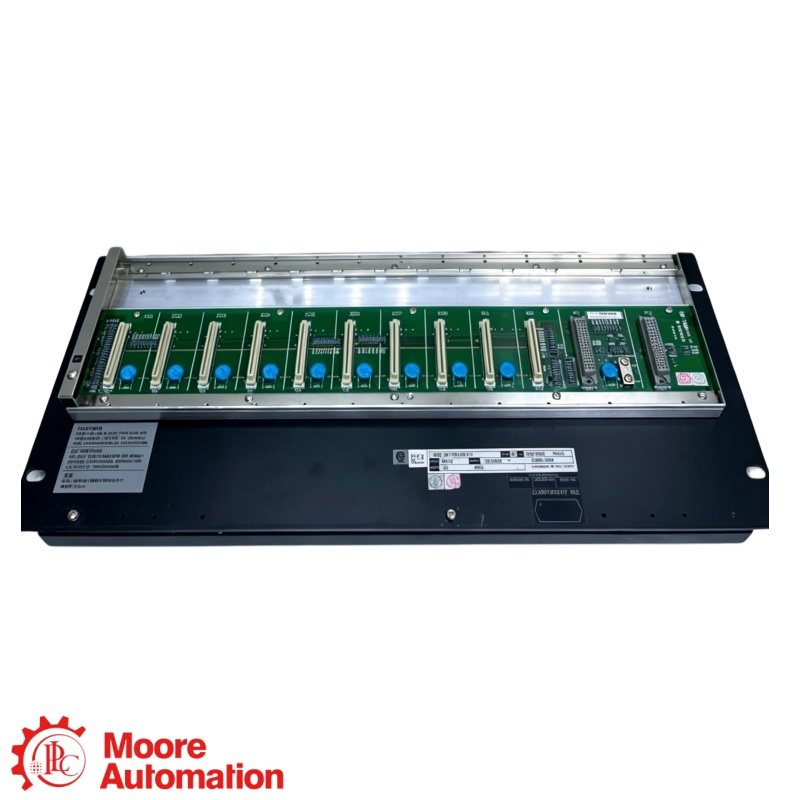

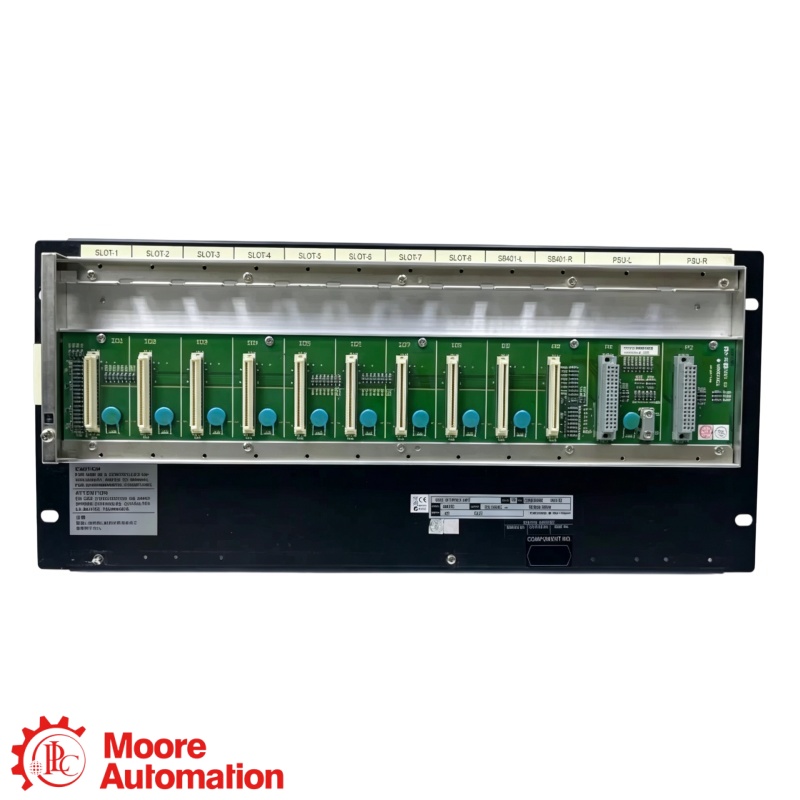

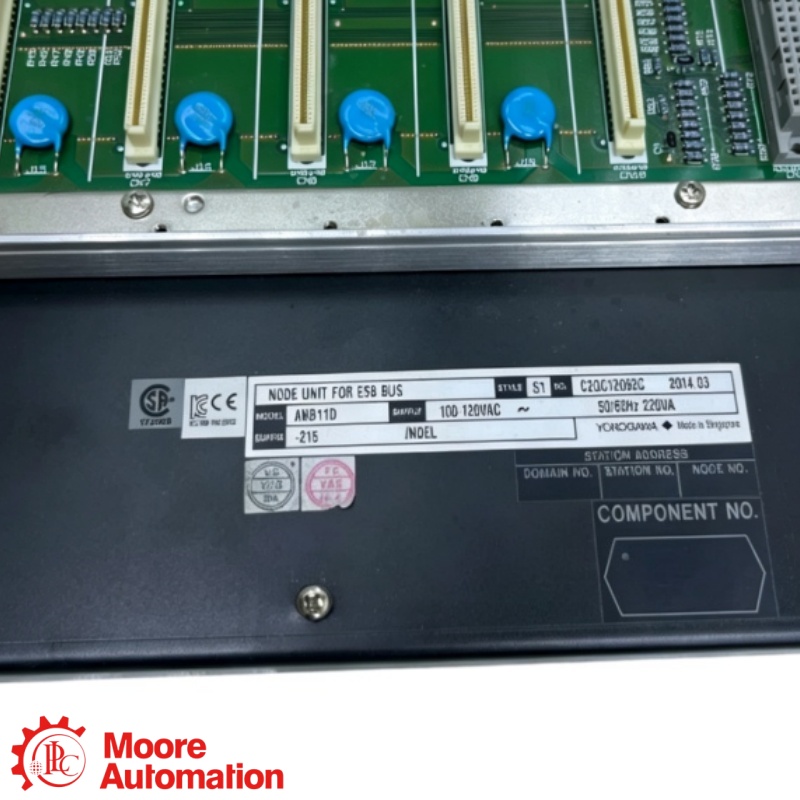

Yokogawa ANB11D Duplexed Optical ESB Bus Node Unit
Yokogawa ANB11D Duplexed Optical ESB Bus Node Unit
Yokogawa ANB11D Duplexed Optical ESB Bus Node Unit

Yokogawa ANB11D Duplexed Optical ESB Bus Node Unit

PRODUCT REFERENCE VERIFICATION

ANB11D

The ANB11D is a Yokogawa Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater. Confirm the complete suffix, installed system, interface layout, power/protection option and documented configuration before ordering.

CATALOGANB11D
IDENTITYExact label
SYSTEMDual-redundant optical ESB bus · N-IO/FIO
STATUSOfficial data available
BRANDYokogawa
PRODUCT TYPEOptical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater
CONDITION / WARRANTYOriginal New · One-Year Warranty
VERIFICATIONPhotos and video after inquiry
REQUEST A QUOTE

  • Brand :

    Yokogawa

  • Part Number :

    ANB11D

  • Description :

    Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
PRODUCT INFORMATION● OFFICIAL DATASHEET
PRODUCT REFERENCE VERIFICATION

ANB11D

CONFIGURATION VERIFICATION

EXACT MODEL · DUAL-REDUNDANT OPTICAL ESB BUS · N-IO/FIO · COMPLETE CONFIGURATION

PRODUCT ROLE
ANB11D is Yokogawa’s Dual-redundant optical ESB Bus Node Unit that relays field I/O to a remote Yokogawa FCU and supplies I/O-module power. It interfaces the FCS with the applicable ESB/ER bus Node Units; confirm the complete suffix, LFS1500 control function, power supply and protection option before use.
INSTALLATION CHECK
Confirm both ANB11D optical paths, ANT522, fiber type/distance, FCU, dual-redundant power/protection option, HKU interface and connector wiring before replacement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.comWHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the ANB11D configuration and suffix codes are structured

ANB11D
Model identifierANB11D Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater identifier
suffix options
Suffix and option codesRetain the complete ANB11D suffix and documented option codes when ordering
OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

OPEN OFFICIAL DATASHEET
ANB11D

Verified ANB11D data at a glance

Confirmed values from Yokogawa GS 33J60F30-01EN and applicable system specifications.

Complete referenceANB11D
Identity evidenceANB11D model and suffix
System evidenceDual-redundant optical ESB bus · N-IO/FIO system record
CompatibilityCheck complete suffix and system fit
Verified configuration

Yokogawa GS 33J60F30-01EN covers ANB11D as the dual-redundant optical ESB Bus Node Unit for N-IO/FIO. Both optical paths, ANT522, power/protection suffix and optional HKU hardware must match the installed design.

General Information −
BrandYokogawa
ModelANB11D
Product categoryOptical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater
Verification statusOfficial ANB11D datasheet available
Official Documentation ＋
Official datasheet statusGS 33J60F30-01EN official datasheet available
Exact catalog matchANB11D model and suffix confirmed
Required confirmationProvide both ANB11D labels and suffixes, ANT522/fiber details, FCU model, optical connector options, redundant power/protection/HKU codes, photographs and quantity.
Ordering Check ＋
Lifecycle and replacement statusDo not replace ANB11D with ANB11S or copper-bus ANB10D without checking the optical distance, redundancy, connector, cabinet and FCU compatibility.
Quotation evidenceProvide both ANB11D labels and suffixes, ANT522/fiber details, FCU model, optical connector options, redundant power/protection/HKU codes, photographs and quantity.
Source: Yokogawa GS 33J60F30-01EN and applicable Yokogawa system specifications; no third-party product specifications are used.
FAQ

ANB11D Compatibility, Installation and Ordering FAQ

What is ANB11D and what does it do?＋

ANB11D is Yokogawa’s Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater. Its function is dual-redundant optical esb bus node unit that relays field i/o to a remote yokogawa fcu and supplies i/o-module power; the complete label, suffix and installed system must match before use.

Which system and interface are required for ANB11D?＋

ANB11D is designed for Dual-redundant optical ESB bus · N-IO/FIO. Confirm the documented bus path, FCU relationship, connector arrangement and suffix rather than treating ANB11D as a generic module.

What configuration or performance data applies to ANB11D?＋

ANB11D is a dual-redundant optical ESB Node Unit with ANT522. It relays I/O over two optical paths to the FCU and is not a standalone controller.

Which electrical, network or protection options must be confirmed for ANB11D?＋

Confirm both fibers, ANT522, dual optical paths, suffix-coded redundant supply/protection, connectors/terminators and optional HKU interface before commissioning.

What must be checked before installing or replacing ANB11D?＋

Match both ANB11D labels, optical module/fiber records, FCU, redundant power, connector, grounding and cabinet/environment records before replacement.

How is ANB11D different from a related model?＋

ANB11D is dual-redundant optical ESB. ANB11S is single optical ESB; ANB10D is dual copper ESB. The network medium and redundancy design decide the model.

What identification and ordering evidence is needed for ANB11D?＋

Provide both ANB11D labels and suffixes, ANT522/fiber details, FCU model, optical connector options, redundant power/protection/HKU codes, photographs and quantity. Use the official GS 33J60F30-01EN document to confirm the ordered configuration; do not infer a suffix or substitute from a similar model.

CONTACT PRODUCT SPECIALIST

Check ANB11D configuration with Frida

Provide both ANB11D labels and suffixes, ANT522/fiber details, FCU model, optical connector options, redundant power/protection/HKU codes, photographs and quantity. Share the installed-system photographs and destination for verification.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Manuals and Official References for
ANB11D

Official manufacturer-reference information for the Yokogawa ANB11D Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater.

Official datasheet status

Yokogawa GS 33J60F30-01EN is the official ANB11D datasheet. It documents the ANB11D dual-redundant optical ESB Bus Node Unit for N-IO/FIO, including redundant optical relay and optional HKU functions.

OPEN OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

Technical statements on this page are derived from Yokogawa GS 33J60F30-01EN and applicable Yokogawa system specifications.

DUPLEXED OPTICAL ESB BUS NODE UNIT

How ANB11D Fits a Yokogawa Control System

Yokogawa is the brand; ANB11D is Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeater; and the complete suffix identifies the applicable configuration.

Yokogawa · BRAND
Optical ESB Bus Node Unit for N-IO/FIO, dual-redundant bus with optical repeaterVNET/IP · FIO · RACK-MOUNTABLE
SYSTEM ROLE

ANB11D · FCS NODE

ANB11D interfaces a Yokogawa Field Control Station with applicable ESB/ER bus Node Units over the documented Vnet/IP and FIO architecture.

RACK / BUS FIT

19-INCH · VNET/IP / FIO

Verify both ANT522/fiber paths, multimode distance, dual optical connectors/terminators, FCU compatibility, redundant supply and optional HKU monitoring.

CONFIGURATION DATA

8 MODULES · 4000 WORDS/FCS

For the cited turbomachinery I/O configuration, Yokogawa specifies up to 8 modules (4 dual-redundant sets) and 4000 words/FCS with LFS1500; LFS1550-V11 can extend to up to 16 modules (8 sets).

System relationship: verify the complete ANB11D label and suffix, power supply, protection option, rack fit, Vnet/IP/FIO wiring, Node Unit compatibility and LFS1500/LFS1550 configuration before installation or replacement.
VERIFICATION EVIDENCE

Evidence needed to verify ANB11D correctly

Product Identity

Match ANB11D to the complete Yokogawa product label, suffix and installed hardware record.

Installation Context

Document the Dual-redundant optical ESB bus · N-IO/FIO host system, rack position, adjacent Node Units/modules, connector layout and wiring.

PRODUCT REFERENCEANB11DComplete ANB11D product reference
Configuration Evidence

Use the complete suffix, GS 33J60F30-01EN official datasheet, installation photographs and system record to verify identity.

Replacement Check

Do not substitute another catalog number until identity, interface, power/protection, mechanical fit and configuration are verified.
