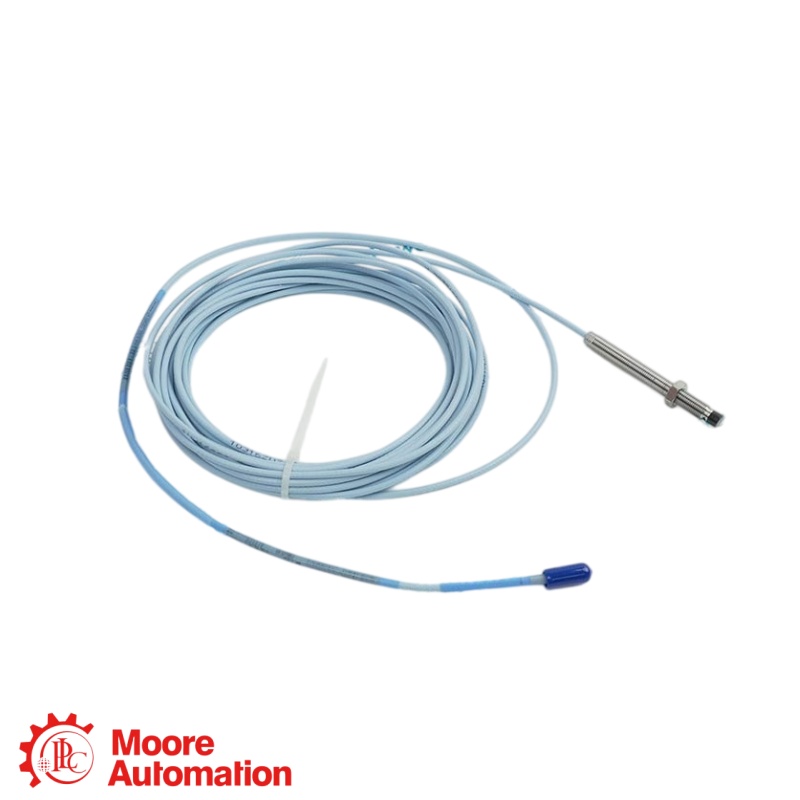

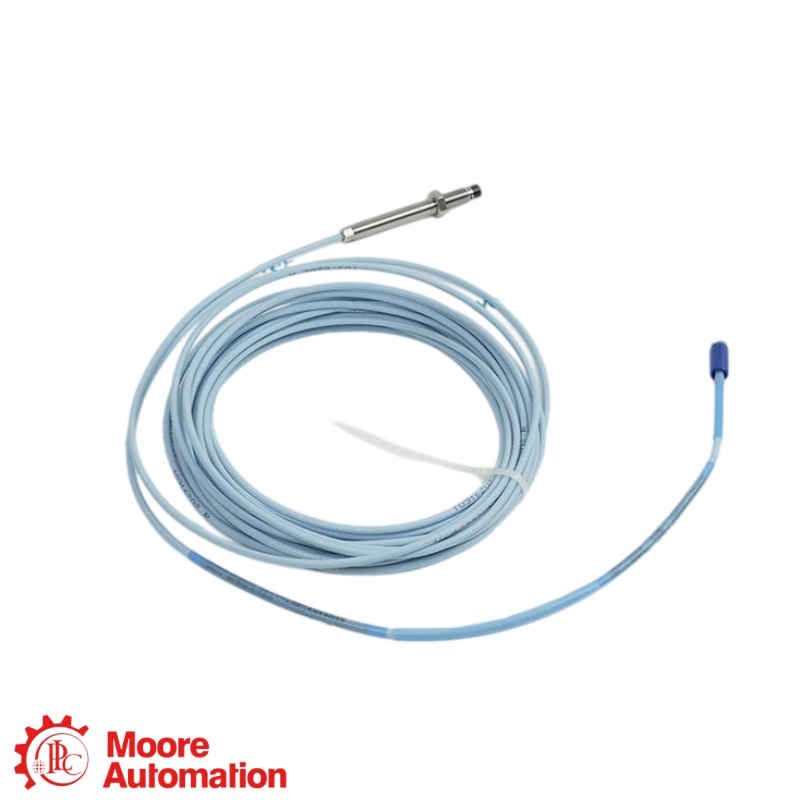

Bently Nevada 330191-00-70-10-00 3300 XL 8 mm ETR Proximity Probe

3300 XL 8 MM · ETR PROXIMITY PROBE

330191-00-70-10-00

330191-00-70-10-00 — a Bently Nevada 3300 XL 8 mm extended-temperature-range probe with 3/8-24 UNF case thread, no armor, 0.0 in unthreaded length, 7.0 in case length, 1.0 m total length and approval option 00.

UNTHREADED0.0 in

CASE LENGTH7.0 in

TOTAL LENGTH1.0 m

THREAD3/8-24 UNF

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3300 XL 8 MM ETR PROXIMITY PROBE

3300 XL 8 MM ETR PROXIMITY PROBE

330191-00-70-10-00

3/8-24 UNF · 1.0 m · ETR

3300 XL 8 mm ETR Proximity Probe

EXTENDED-TEMPERATURE PROXIMITY MEASUREMENT

330191-00-70-10-00 — A Bently Nevada 3300 XL 8 mm extended-temperature-range probe with 3/8-24 UNF case thread, no armor, 0.0 in unthreaded length, 7.0 in case length, 1.0 m total length and approval option 00.

CONFIGURATION NOTE

330191 identifies the 3300 XL 8 mm unarmored ETR probe with 3/8-24 UNF thread; 00 and 70 specify 0.0 in unthreaded and 7.0 in overall case lengths; 10 gives 1.0 m total length; final 00 means agency approval is not required.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

330191

Base probe3300 XL 8 mm ETR · 3/8-24 UNF · no armor

Unthreaded length0.0 in

Overall case length7.0 in

Total probe length1.0 m

Agency approvalNot required

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗

3300 XL 8 MM ETR PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

UNTHREADED0.0 in

CASE LENGTH7.0 in

TOTAL LENGTH1.0 m

THREAD3/8-24 UNF

Exact-model configuration and engineering data.

Configuration note 330191 identifies the 3300 XL 8 mm unarmored ETR probe with 3/8-24 UNF thread; 00 and 70 specify 0.0 in unthreaded and 7.0 in overall case lengths; 10 gives 1.0 m total length; final 00 means agency approval is not required.

General Information −

BrandBently Nevada

Part number330191-00-70-10-00

Product typeETR Proximity Probe

Product family3300 XL 8 mm Transducer System

Case thread3/8-24 UNF

ArmorNone

Probe Geometry and Length ＋

Unthreaded length00 · 0.0 in

Overall case length70 · 7.0 in

Probe total length10 · 1.0 m

Temperature and Approval ＋

ETR probe ratingUp to 218 °C

System compatibility3300 XL standard / ETR components

Agency approval00 · Not required

Transducer System Role ＋

This extended-temperature-range probe is the sensing end of a compatible 3300 XL 8 mm system. For a 1.0 m system, use a matched 1.0 m Proximitor Sensor without an extension cable; any ETR component limits system accuracy to ETR-system accuracy.

Source: Bently Nevada 3300 XL 8 mm Proximity Transducer System Datasheet, 141194.

FAQ

Questions Buyers Ask Most

What does 330191-00-70-10-00 identify?＋

330191-00-70-10-00 is an unarmored 3/8-24 UNF 3300 XL 8 mm ETR proximity probe. The manufacturer rates the ETR probe for temperatures up to 218 °C.

How should the 00 and 70 geometry fields be read on 330191-00-70-10-00?＋

330191-00-70-10-00 has 0.0 in unthreaded length and a 7.0 in overall case length. Verify the installed thread and mechanical clearance.

What does length code 10 specify for 330191-00-70-10-00?＋

Code 10 gives 330191-00-70-10-00 a 1.0 m total probe length. A 1.0 m transducer system uses a matched 1.0 m Proximitor Sensor without an extension cable.

Is agency approval included in 330191-00-70-10-00?＋

The final 00 on 330191-00-70-10-00 means agency approval is not required in the manufacturer ordering table; check whether the installation requires a different approval option.

What should be checked when replacing 330191-00-70-10-00?＋

Confirm the exact 330191-00-70-10-00 marking, 3/8-24 UNF thread, 7.0 in case, 1.0 m system, ETR temperature need, compatible Proximitor Sensor and quantity before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 330191-00-70-10-00 label, mounting geometry, matched Proximitor Sensor selection, site approval requirement and quantity for configuration checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330191-00-70-10-00

Manufacturer ordering information for the 330191 extended-temperature-range 3300 XL 8 mm probe and this complete configuration.

Official manufacturer datasheet

Bently Nevada Datasheet 141194 lists the unarmored 3/8-24 UNF 330191 ETR probe and defines its 00, 70, 10 and 00 ordering fields.

VIEW OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use the linked Bently Nevada manufacturer datasheet.

3300 XL 8 MM SYSTEM RELATIONSHIP

How 330191-00-70-10-00 Fits into the 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330191-00-70-10-00 is the 8 mm ETR sensing probe. Its tip faces a conductive shaft surface; for a 1.0 m system, use the matched 1.0 m Proximitor Sensor without an extension cable.

Bently Nevada · BRAND

Bently Nevada 3300 XL 8 mm SystemPRODUCT FAMILY · PROXIMITY TRANSDUCER SYSTEM

SENSING TARGET

Conductive Shaft Surface

The probe tip senses shaft-to-tip distance without contact.

EXTENSION CABLE

No Cable for 1 m System

A one-meter system uses the matching probe and Proximitor Sensor without an extension cable.

PROXIMITOR SENSOR

Signal Conditioning

A compatible 3300 XL Proximitor Sensor converts the probe signal for monitoring.

System relationship: this 1.0 m ETR probe is used with a matching 1.0 m Proximitor Sensor; one-meter systems do not use an extension cable.

APPLICATION AREAS

Functions and application roles for 330191-00-70-10-00

Shaft VibrationUse within a matched 3300 XL 8 mm system for non-contact shaft-vibration measurement.

Shaft PositionUse the transducer system to measure static shaft position at a conductive target.

APPLICATION CENTER 330191-00-70-10-00 3300 XL 8 mm ETR Proximity Probe

Keyphasor ReferenceA properly installed proximity system can provide speed or phase-reference signals.

Fluid-Film BearingsThe 3300 XL 8 mm system is applied to vibration and position measurement on fluid-film bearing machines.
