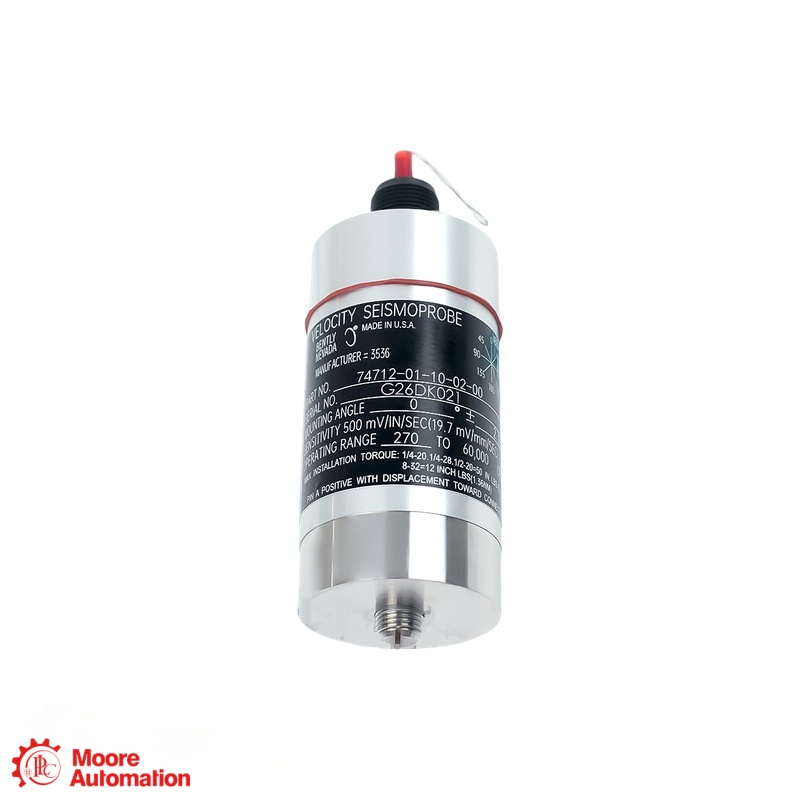

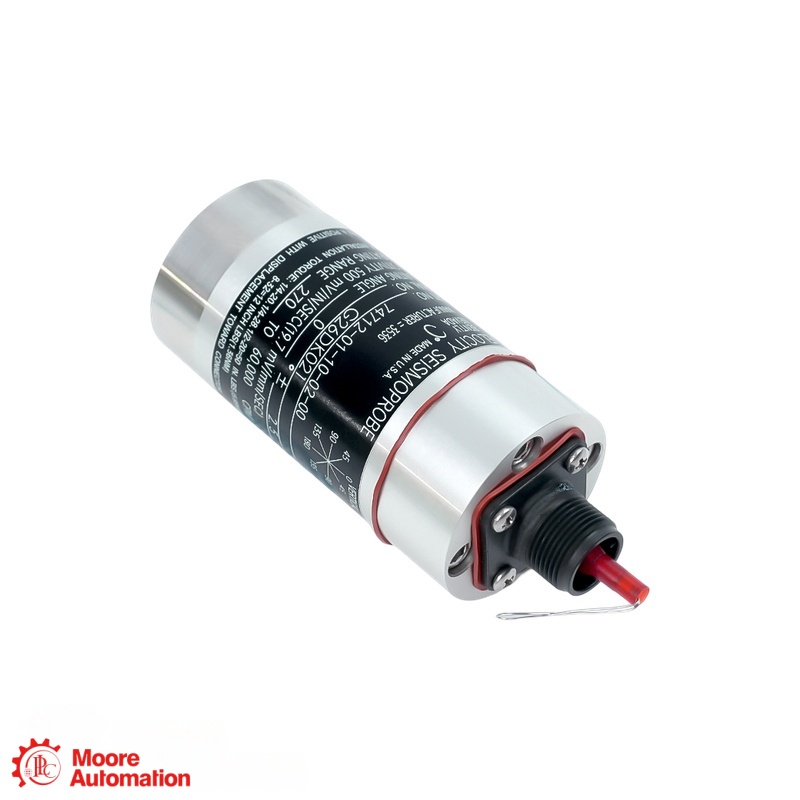

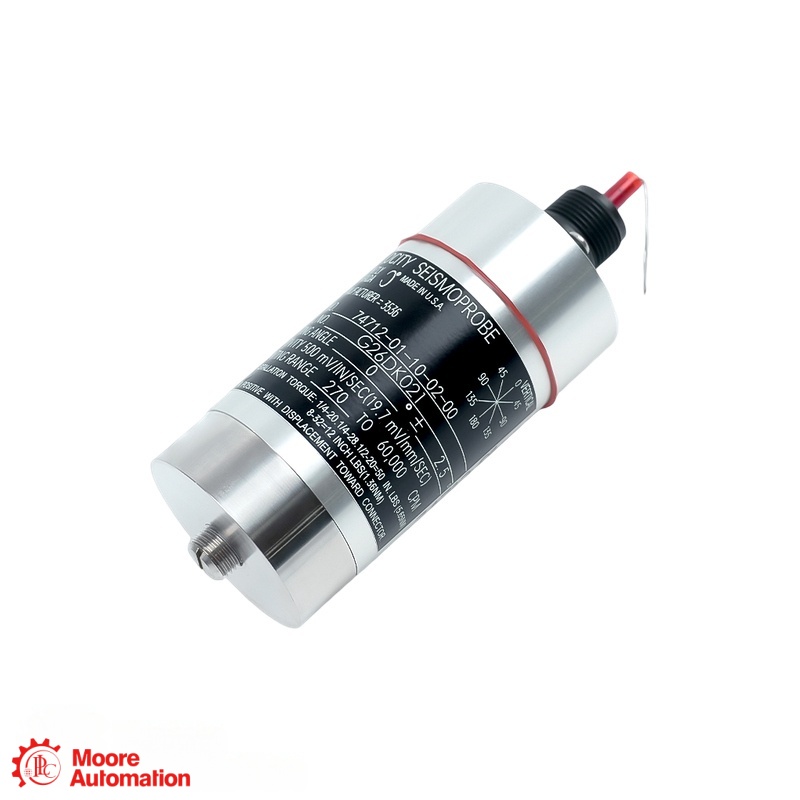

Bently Nevada 74712-01-10-03-00 High-Temperature Seismoprobe Velocity Transducer

SEISMOPROBE · HIGH-TEMPERATURE VELOCITY TRANSDUCER

74712-01-10-03-00

74712-01-10-03-00 — a Bently Nevada high-temperature, two-wire moving-coil velocity transducer. The ordering code specifies a vertical mounting angle, M10 x 1 circular base, top terminal block, and no agency approvals.

PRODUCT TYPEVibration velocity

SYSTEMSeismoprobe system

MOUNTINGM10 x 1 base

OPERATING TEMP.−29 to +204 °C

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 74712 HIGH-TEMPERATURE SEISMOPROBE

74712 HIGH-TEMPERATURE SEISMOPROBE

74712-01-10-03-00

Moving-coil velocity sensor · M10 x 1 base · terminal block

High-temperature two-wire Seismoprobe velocity transducer

HIGH-TEMPERATURE VIBRATION MEASUREMENT

74712-01-10-03-00 — A passive moving-coil Seismoprobe that measures machine casing or bearing-housing vibration velocity. Its two-wire output does not require external power.

CONFIGURATION NOTE

The 01 option specifies vertical mounting and 4.5 Hz minimum operating frequency; 10 is a circular M10 x 1 base; 03 is a top-mounted terminal block; 00 specifies no approvals.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

74712

Base modelHigh-temperature two-wire Seismoprobe

Mounting angle0° ±2.5°; 4.5 Hz minimum

Mounting baseCircular M10 x 1 stud

ConnectorTop-mounted terminal block

Agency approvalNo Approvals

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Bently Nevada Official Site ↗

74712 HIGH-TEMPERATURE SEISMOPROBE

Engineering data at a glance

Click “+” to expand more specifications.

HEIGHT102 mm typical

DIAMETER41 mm typical

WEIGHT480 g typical

TEMPERATURE−29 to +204 °C

Manufacturer ordering-code and sensor specifications.

Configuration note The 01 option specifies vertical mounting and 4.5 Hz minimum operating frequency; 10 is a circular M10 x 1 base; 03 is a top-mounted terminal block; 00 specifies no approvals.

General Information −

BrandBently Nevada

Part number74712-01-10-03-00

Product typeHigh-temperature Seismoprobe velocity transducer

Operating temperature−29 to +204 °C

Sensitivity20 mV/mm/s ±5%

Typical weight480 g

Measurement and Output ＋

MeasurementBearing-housing or machine-casing vibration velocity

OutputPassive two-wire moving-coil voltage

Calibration load10 kΩ

Mounting and Connector ＋

Mounting orientation0° ±2.5°; 4.5 Hz minimum

Mounting baseCircular base with M10 x 1 stud

Connector / approvalTop terminal block; 00 No Approvals

Application ＋

Bently Nevada 74712-01-10-03-00 measures absolute bearing-housing, casing or structural vibration. Match mounting orientation, terminal wiring and the intended monitor input before commissioning.

Source: Bently Nevada 9200 and 74712 Seismoprobe Datasheet 141626 Rev. V.

FAQ

Questions Buyers Ask Most

What does 74712-01-10-03-00 measure?＋

Bently Nevada 74712-01-10-03-00 measures absolute bearing-housing, machine-casing or structural vibration velocity. Its passive two-wire moving-coil output is proportional to velocity, so match the monitor input and cable arrangement to a Seismoprobe transducer.

How are mounting angle and base defined for 74712-01-10-03-00?＋

For 74712-01-10-03-00, option 01 specifies a 0° ±2.5° mounting orientation and 4.5 Hz minimum operating frequency. Option 10 selects a circular M10 x 1 mounting base; use that orientation and base when checking the machine installation.

What connection does 74712-01-10-03-00 use?＋

The 03 connector option on 74712-01-10-03-00 is a top-mounted terminal block. This high-temperature 74712 version has no integral cable; select a compatible interconnection cable and verify the terminal wiring and monitor connection during installation.

What temperature and approval option apply to 74712-01-10-03-00?＋

Bently Nevada lists an operating and storage range of −29 °C to +204 °C for the 74712 transducer. The final 00 on 74712-01-10-03-00 means No Approvals; do not treat this ordering option as a hazardous-area-approved version.

What should be supplied to order 74712-01-10-03-00?＋

Provide the complete 74712-01-10-03-00 code, quantity, machine mounting orientation, required interconnection-cable length, intended monitor, and installation-area approval requirement. The code specifies a vertical sensor, circular M10 x 1 base, top terminal block and No Approvals.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete 74712-01-10-03-00 ordering code, mounting orientation, cable requirement, intended monitor and site approval requirement for configuration checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Product Information for
74712-01-10-03-00

Bently Nevada Datasheet 141626 Rev. V lists the 74712 ordering fields used in 74712-01-10-03-00 and provides Seismoprobe performance, temperature and mounting data.

Official manufacturer datasheet

Bently Nevada Datasheet 141626 Rev. V includes the complete 74712 ordering pattern and the 01, 10, 03 and 00 option definitions for 74712-01-10-03-00. Review the manufacturer PDF for performance and installation details.

OPEN OFFICIAL MANUAL PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Official source: Bently Nevada 9200 and 74712 Seismoprobe Velocity Transducers Datasheet, 141626 Rev. V.

SEISMOPROBE VELOCITY SENSOR RELATIONSHIP

How 74712-01-10-03-00 Fits into a Velocity Monitoring System

Bently Nevada is the manufacturer. 74712-01-10-03-00 is a high-temperature Seismoprobe velocity transducer. Its passive two-wire moving-coil output measures absolute bearing-housing, casing or structural vibration; match the selected cable and receiving monitor input.

Bently Nevada · BRAND

Bently Nevada SeismoprobePRODUCT FAMILY · VELOCITY TRANSDUCER

MACHINE MOUNTING

Casing Vibration Sensor

The 01 option specifies 0° ±2.5° orientation and a 4.5 Hz minimum operating frequency.

TWO-WIRE OUTPUT

Moving-Coil Signal

The moving-coil sensor produces a velocity-proportional voltage without external power.

HIGH-TEMPERATURE ROLE

Velocity Measurement

The 74712 version is specified for operation from −29 °C to +204 °C.

System relationship: the sensor uses a circular M10 x 1 mounting base and a top-mounted terminal block; a suitable interconnection cable connects it to the receiving instrument.

APPLICATION AREAS

Applications and operating roles for 74712-01-10-03-00

Bearing-Housing VibrationMeasures absolute vibration velocity at bearing housings on rotating machinery.

Machine-Casing MonitoringMeasures machine-casing vibration where casing motion reflects machine condition.

APPLICATION CENTER 74712-01-10-03-00 High-Temperature Velocity Transducer

Structural VibrationMeasures absolute vibration velocity on suitable machine structures.

Periodic DiagnosticsIts passive two-wire output can be used with suitable portable diagnostic instruments.
