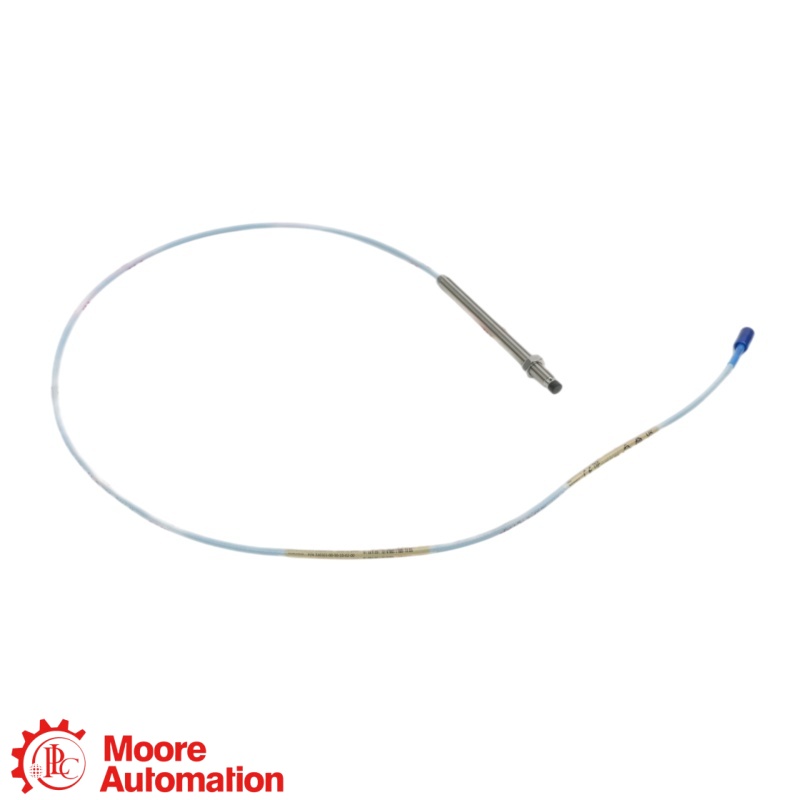

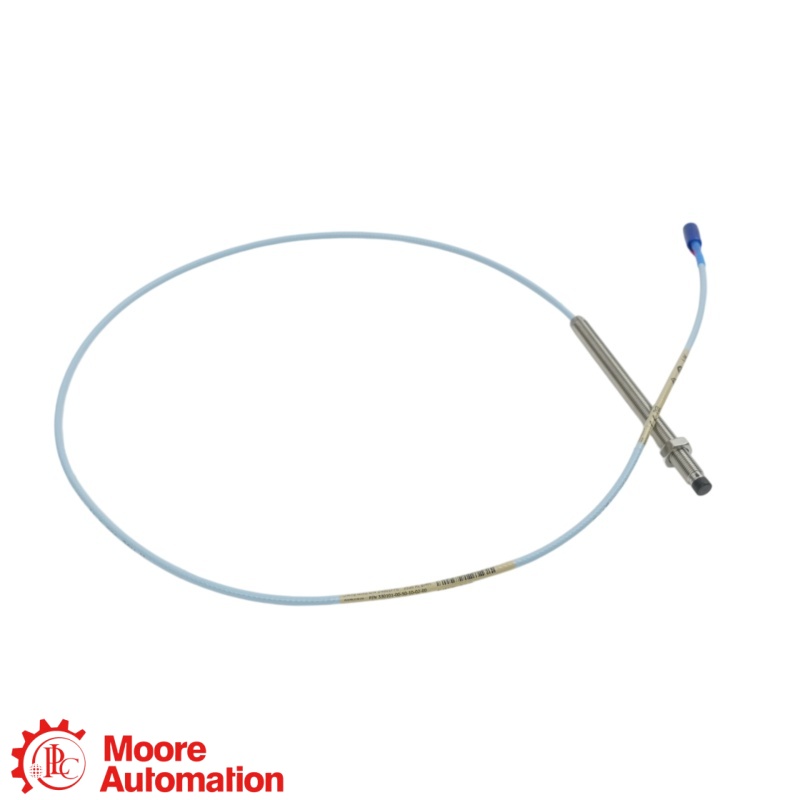

Bently Nevada 330101-00-50-05-02-00 3300 XL 8 mm Proximity Probe

3300 XL · 8 MM PROXIMITY PROBE

330101-00-50-05-02-00

330101-00-50-05-02-00 - A 3/8-24 UNF, unarmored 3300 XL 8 mm proximity probe for static position and dynamic vibration measurement.

PRODUCT3300 XL 8 mm probe

THREAD3/8-24 UNF

TOTAL LENGTH0.5 m (1.6 ft)

USEVibration · position · Keyphasor

MANUFACTURERBently Nevada · Baker Hughes

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

BENTLY NEVADA ● 3300 XL 8 MM SYSTEM

PROXIMITY PROBE

330101-00-50-05-02-00

3/8-24 UNF · 5.0 in case · 0.5 m total length

3300 XL 8 mm Proximity Probe

MEASUREMENT ROLE

330101-00-50-05-02-00 - Non-contacting eddy-current probe for static position and dynamic vibration measurements in a compatible 3300 XL 8 mm system.

ORDERED CONFIGURATION

Options 00-50-05-02-00 specify 0.0 in unthreaded length, 5.0 in overall case length, 0.5 m total length, a standard-cable ClickLoc connector without protector, and no agency approval option.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

CONFIGURATION DECODING

Model code at a glance

330101

Probe model3300 XL 8 mm probe, 3/8-24 UNF thread, without armor

Unthreaded length0.0 in

Overall case length5.0 in

Total length0.5 m (1.6 ft)

Connector and cableMiniature coaxial ClickLoc connector, standard cable, no connector protector

Agency approvalNo agency approval required

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

3300 XL 8 mm Official Datasheet PDF ↗

3300 XL 8 MM PROXIMITY PROBE

Engineering data at a glance

Click “+” to expand more specifications.

THREAD3/8-24 UNF

CASE LENGTH5.0 in

TOTAL LENGTH0.5 m (1.6 ft)

CONNECTORClickLoc · standard cable

Ordering-code dimensions and connector type from the manufacturer datasheet.

System matching Use with compatible 3300 XL extension cable and Proximitor Sensor components for the required total system length.

General Information −

BrandBently Nevada

Part number330101-00-50-05-02-00

Product type3300 XL 8 mm Proximity Probe

Product family3300 XL 8 mm Proximity Transducer System

Thread / construction3/8-24 UNF · forward mount · without armor

Measurement principleEddy-current non-contact displacement sensing

Ordering Configuration ＋

Unthreaded length0.0 in

Overall case length5.0 in

Total probe length0.5 m (1.6 ft)

Connector and System Details ＋

Connector / cableMiniature coaxial ClickLoc · standard cable

Agency approval optionNot required

Probe tip materialPolyphenylene sulfide (PPS)

Probe case materialAISI 303 or 304 stainless steel

Standard temperature range-52°C to +177°C (-62°F to +350°F)

System Performance and Installation ＋

A complete 3300 XL 8 mm system can measure static position and dynamic vibration. The standard system has a 2 mm (80 mil) linear range and 7.87 V/mm (200 mV/mil) nominal scale factor under manufacturer-stated conditions.

Source: Bently Nevada 141194 Rev. AN. Verification values are relative to the actual compatible transducer system under the manufacturer stated conditions.

FAQ

Questions Buyers Ask Most

What is 330101-00-50-05-02-00 used for?＋

330101-00-50-05-02-00 is an unarmored, forward-mount 3300 XL 8 mm proximity probe with 3/8-24 UNF thread for a compatible eddy-current transducer system.

What mechanical configuration does 330101-00-50-05-02-00 use?＋

For 330101-00-50-05-02-00, options 00 and 50 specify 0.0 in unthreaded length and 5.0 in overall case length.

What cable and connector are supplied on 330101-00-50-05-02-00 ?＋

The 330101-00-50-05-02-00 has a 0.5 m total probe length and a miniature coaxial ClickLoc connector with standard cable and no connector protector.

Does 330101-00-50-05-02-00include armor or an agency approval option?＋

The 330101-00-50-05-02-00 is the without-armor 330101 probe; option 00 specifies that an agency approval option is not required.

What should I provide for a 330101-00-50-05-02-00 quotation?＋

Send the complete 330101-00-50-05-02-00 part number, quantity, required system length, extension cable, Proximitor Sensor and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete part number, transducer system and adapter requirement for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
330101-00-50-05-02-00

Official manufacturer documentation for the Bently Nevada 3300 XL 8 mm Proximity Probe 330101-00-50-05-02-00.

Official manufacturer datasheet

Bently Nevada datasheet 141194 Rev. AN defines 330101 as a 3/8-24 UNF 3300 XL 8 mm probe without armor and supports options 00-50-05-02-00.

OPEN OFFICIAL DATASHEET PDF

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements and ordering-code meanings use Bently Nevada / Baker Hughes datasheet 141194 Rev. AN.

3300 XL MEASUREMENT WORKFLOW

How 330101-00-50-05-02-00 Fits a 3300 XL 8 mm Transducer System

Bently Nevada is the manufacturer. 330101-00-50-05-02-00 is the non-contacting probe that senses the distance to a conductive target in a compatible 3300 XL 8 mm system.

Bently Nevada · BRAND

3300 XL 8 mm Transducer SystemPRODUCT FAMILY · MEASUREMENT WORKFLOW

TARGET SENSING

3300 XL 8 mm Probe

The probe senses the gap to the observed conductive surface using the eddy-current measurement principle.

SYSTEM CONNECTION

Extension Cable

Match the probe total length with the correct 3300 XL extension cable for the required system length.

SIGNAL CONDITIONING

Proximitor Sensor

The compatible Proximitor Sensor converts probe gap into an output voltage proportional to distance.

System relationship: the probe, extension cable and Proximitor Sensor must form a compatible 3300 XL 8 mm system with the intended total length.

APPLICATION AREAS

Applications for 330101-00-50-05-02-00

Radial Vibration MeasurementMeasures dynamic shaft vibration on fluid-film bearing machines as part of a compatible transducer system.

Axial Position MeasurementMeasures static shaft position when installed with the correct target geometry and system configuration.

APPLICATION CENTER 330101-00-50-05-02-00 3300 XL 8 mm Proximity Probe

Keyphasor ReferenceSupports phase-reference measurement when used in a compatible Keyphasor installation.

Speed MeasurementCan support speed measurement applications when the complete system and overspeed requirements are properly engineered.
