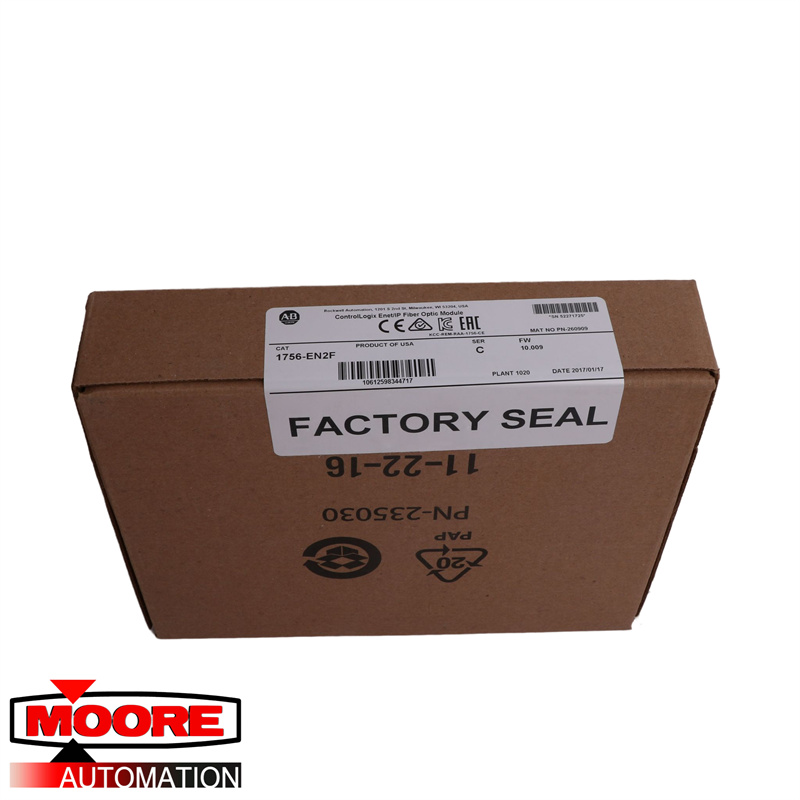

AB | 1756-EN2F | ControlLogix Enet/IP Fiber Optic Module

The 1756-EN2F bridge also has a CIP safety standard for allowing simultaneous transfer of safety and control data and diagnostics information. It uses advanced communication chips and physical media. The 1756-EN2F Module has 100 Mbps EtherNet/IP communication rates and uses fiber. It supports 256 Logix and 128 TCP/IP communication connections. It can support a maximum of 8 axes for integrated motion on the Ethernet/IP Network. It draws 1.2 A current at 5.1V DC and 3 mA at 24V DC. It has a maximum power dissipation of 6.2 W and thermal dissipation of 21.28 BTU/hr. It can be installed in any ControlLogix Chassis slot. For wiring, it uses unshielded RJ45, category 5, twisted-pair cable connectors to interface with the controller. To operate EtherNet/IP network parameters such as IP address, Subnet masks, Gateway etc. must be defined. The 1756-EN2F bridge has various functions like providing support for messaging, distributed I/O, and tags. It encapsulates messages within standard TCP/IP protocol.
