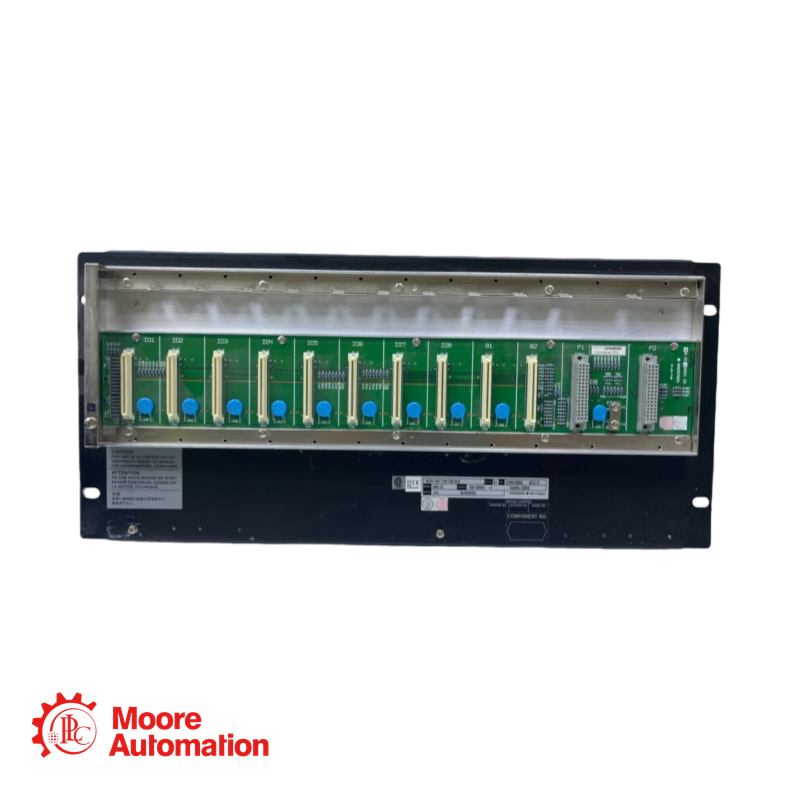

Yokogawa ANB10D-415/CU2T ESB Bus Node Unit

Description

Specification

The ANB10D-415/CU2T is a dual-redundant ESB Bus Node Unit designed for reliable field I/O signal communication with a Field Control Unit (FCU) in FIO systems. It features a dual-redundant power supply configuration (24V DC indicated), supports up to 8 I/O modules, and includes connector units with terminators for ESB bus connection. This unit is rack-mountable, complies with various international safety and EMC standards, and is suitable for integration into industrial control architectures like Vnet/IP and Vnet.

Power Supply Voltage and Type: 1: 100-120 V AC, 50/60 Hz
Suffix Code (Primary): 4: 24 V DC power supply
Suffix Code (Secondary): 1: 100-120 V AC power supply (Note: Conflicting data.  Based on model structure "-415", the "4" likely indicates 24V DC primary.  For precise configuration, confirm ordering specs.)
Suffix Code (Protection Class): 5: Basic type with no explosion protection
Optional Suffix Codes Available: 6: With ISA Standard G3 option, temperature (-20°C to 70°C) option, and no explosion protection;  7: With ISA Standard G3 option and no explosion protection;  E: Basic type with explosion protection;  F: With ISA Standard G3 option, temperature (-20°C to 70°C) option, and explosion protection;  G: With ISA Standard G3 option and explosion protection
Option Code: /CU2T: Connector Unit with Terminator for ESB Bus (Part Number: S9564FA, quantity: 2 pieces)
Other Option Codes Available: /CU2N: Connector Unit for ESB Bus;  /ATDOC: Explosion Protection Manual;  /NDEL: Software License for Node Expansion (required for connection with AFV10D, AFV30D, AFV40D, AFF50D)
Connectable to Field Control Unit (FCU) via: ESB Bus, requires ESB Bus Coupler Module (EC401 or EC402) installed in FCU slots 7/8
Maximum I/O Modules Installable: 8
Typical Module Configuration: Power Supply Module (PW481, PW482, or PW484): 2 modules for dual-redundant config;  ESB Bus Interface Slave Module (SB401): 2 modules for dual-redundant config;  I/O Modules: up to 8
Electric Power Consumption (24V DC): 5.5 A
Electric Power Consumption (100-120V AC): 200 VA, 120 W
Electric Power Consumption (220-240V AC): 230 VA, 120 W
