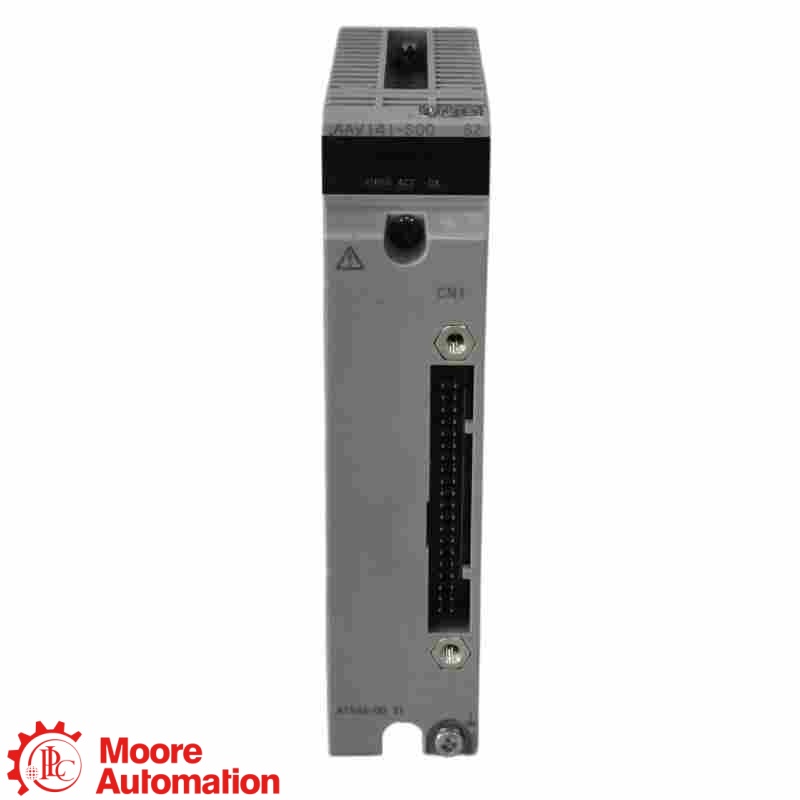

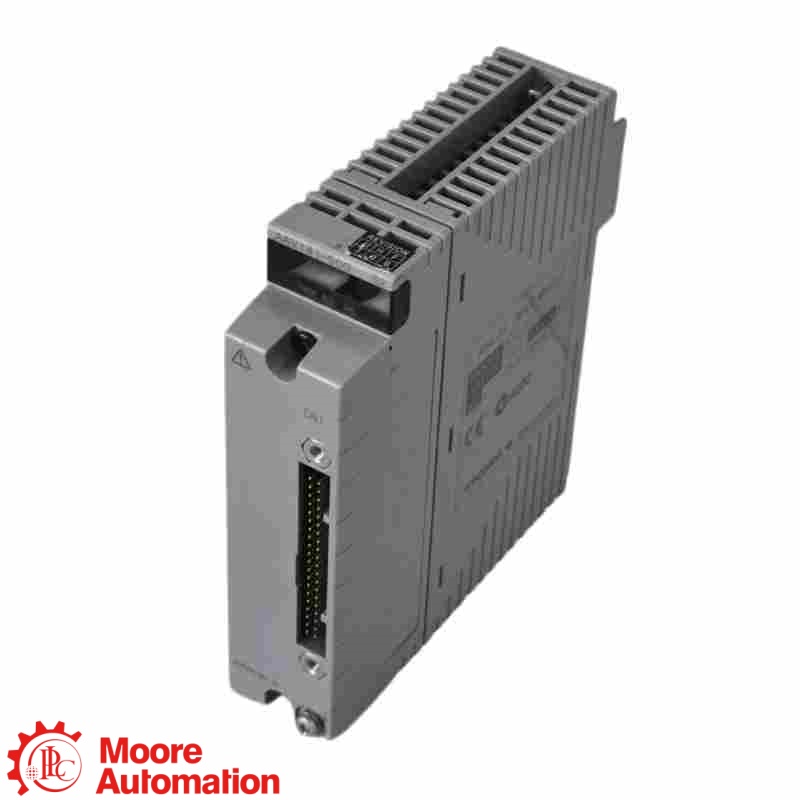

Yokogawa AAV141 1 to 5 V 16-Channel Analog Input Module

1 TO 5 V ANALOG INPUT MODULE

AAV141

The AAV141 is a Yokogawa analog input module for 16 non-isolated differential 1 to 5 V DC inputs. Official Yokogawa specifications list 10 ms data updating, 100 ms step response and KS-cable field connection.

MODELAAV141

SIGNAL1 to 5 V DC

CHANNELS16 inputs

ISOLATIONNon-isolated

BRANDYokogawa

PRODUCT TYPEAnalog Input Module

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATIONConfirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.

REQUEST A QUOTE

EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Brand :
Yokogawa
Part Number :
AAV141
Weight :
0.20 kg
Description :
Analog Input Module

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE

PRODUCT REFERENCE VERIFICATION

AAV141

1 TO 5 V ANALOG INPUT MODULE

1 to 5 V DC · 16 INPUTS · NON-ISOLATED

PRODUCT ROLE

AAV141 is a Yokogawa Analog Input Module (1 to 5 V, 16-channel, Non-Isolated). Receives sixteen 1 to 5 V DC field signals for compatible Yokogawa FIO systems.

INSTALLATION CHECK

Confirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFY COMPLETE MODULE CONFIGURATION

AAV141 ANALOG INPUT MODULE

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEAnalog Input Module

SIGNAL1 to 5 V DC

CHANNELS16 inputs

ISOLATIONNon-isolated

Use the official Yokogawa module specification and the complete installed-system record.

General Information−

ManufacturerYokogawa

ModelAAV141

Product typeAnalog Input Module (1 to 5 V, 16-channel, Non-Isolated)

Channel configuration16 inputs

Signal and Performance＋

Signal range1 to 5 V DC

Accuracy±4 mV

Data update period10 ms

Step response100 ms

Input / load limit±7.5 V

Connection and Verification＋

IsolationNon-isolated

External connectionKS cable

Maximum current consumption350 mA at 5 V DC

WeightApprox. 0.20 kg

HART communicationNot available

Confirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.

Official source: Yokogawa GS 33J60F60-01EN — Analog I/O Modules (for FIO).

FAQ

AAV141 Technical, Compatibility and Replacement FAQ

What type of product is AAV141?＋

AAV141 is a Yokogawa Analog Input Module (1 to 5 V, 16-channel, Non-Isolated).

What signal range does AAV141 use?＋

AAV141 uses 1 to 5 V DC.

How many channels does AAV141 provide?＋

AAV141 provides 16 inputs.

Is AAV141 isolated?＋

AAV141 is non-isolated according to the official Yokogawa specification.

What is the data update period for AAV141?＋

AAV141 has a 10 ms data update period.

What connection and power data apply to AAV141?＋

AAV141 uses KS cable; maximum current consumption is 350 mA at 5 V DC, and listed weight is Approx. 0.20 kg.

What must be checked before replacing AAV141?＋

Confirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.

CONTACT PRODUCT SPECIALIST

Check AAV141 configuration with Frida

Provide the complete AAV141 suffix code, node-unit model, terminal hardware, signal range, channel wiring, quantity and destination for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
AAV141

Official Yokogawa references identify AAV141 as a Analog Input Module (1 to 5 V, 16-channel, Non-Isolated).

AAV141 official module documentation

Yokogawa GS 33J60F60-01EN provides the official hardware specifications, signal range, channel count, response data, current consumption, weight, connection options and ordering-code information for AAV141.

OPEN OFFICIAL MODULE SPECIFICATION ↗

Contact to Get Support

Send the complete model, quantity, terminal hardware, system release and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

The reference above is an official Yokogawa module specification. Confirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.

YOKOGAWA FIO · ANALOG I/O MODULE

How AAV141 Fits a Yokogawa FIO System

Yokogawa is the brand; AAV141 is a Analog Input Module (1 to 5 V, 16-channel, Non-Isolated) used with compatible Yokogawa FIO node and field-control systems.

Yokogawa · BRAND

AAV141 Analog Input Module1 to 5 V DC · 16 INPUTS · NON-ISOLATED

SYSTEM ROLE

ANALOG INPUT MODULE

Receives sixteen 1 to 5 V DC field signals for compatible Yokogawa FIO systems.

SIGNAL RANGE

1 TO 5 V DC

Verify the signal range and channel wiring against the installed field circuit.

TERMINAL CONNECTION

KS CABLE

Confirm the terminal block or cable, node unit and complete suffix code before installation.

System relationship: verify the exact AAV141 label, compatible FIO node unit, terminal hardware, channel configuration and configured signal range before replacement.

VERIFICATION EVIDENCE

Evidence needed to verify AAV141 correctly

Product Identity

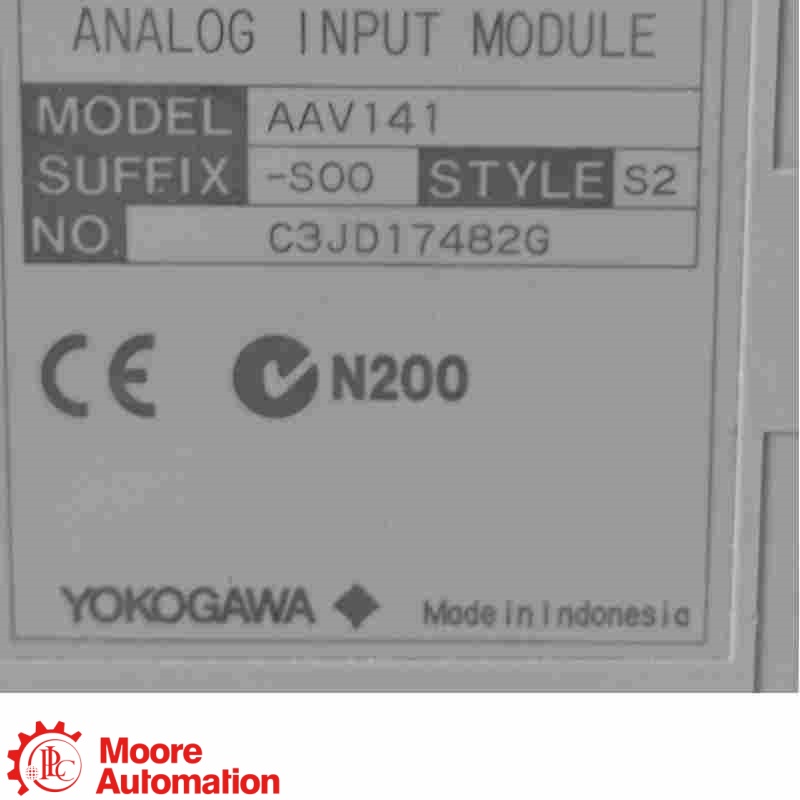

Match AAV141 to the complete Yokogawa label, suffix code and installed I/O record.

Installation Context

Document the node unit, slot, terminal hardware, signal range and field wiring.

PRODUCT REFERENCEAAV141Complete model, suffix code and module identity

Configuration Evidence

Confirm the configured signal range, channel allocation, terminal hardware and redundant-module arrangement.

Replacement Check

Do not substitute by appearance. Confirm the complete AAV141 suffix code, node unit, terminal hardware, KS cable and channel wiring before replacement.
