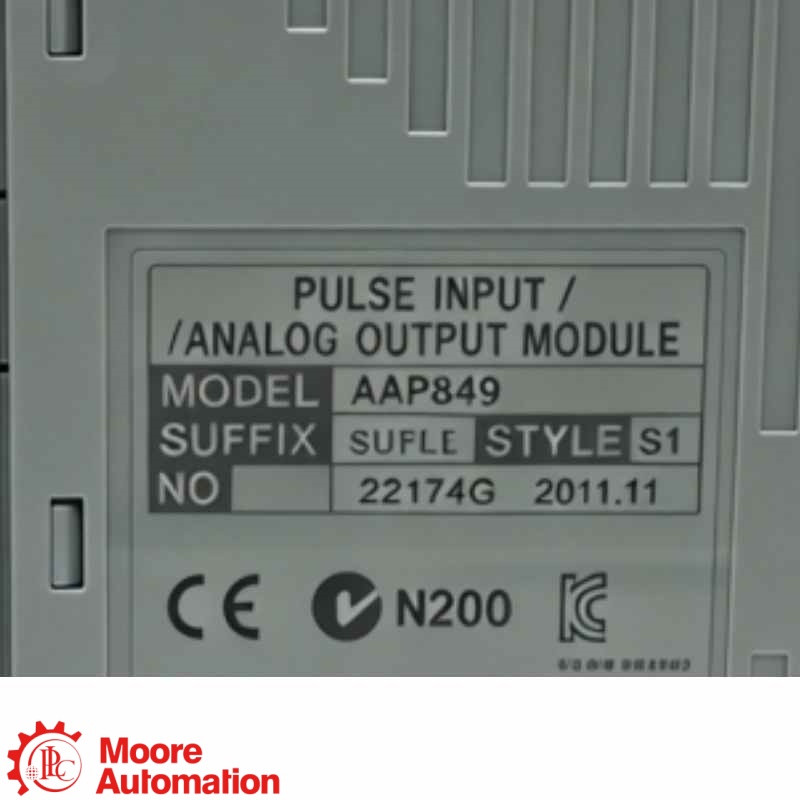

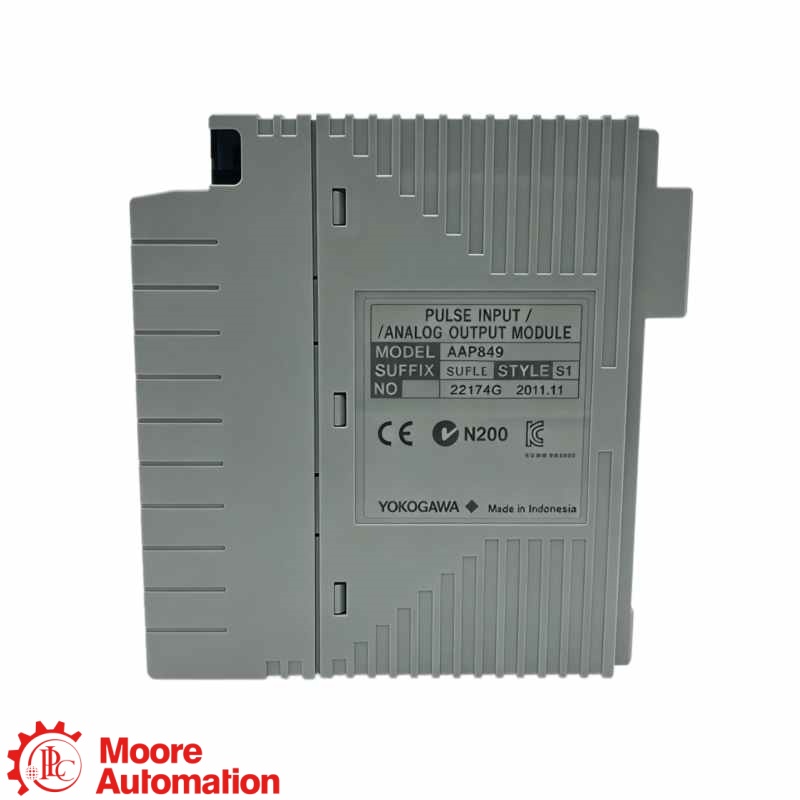

Yokogawa AAP849 8-Channel Pulse Input and Analog Output Module

8-CHANNEL PULSE INPUT / 8-CHANNEL ANALOG OUTPUT MODULE

AAP849

The AAP849 is a Yokogawa pulse input and analog output module that combines eight pulse-train input channels with eight 4 to 20 mA analog output channels. Official Yokogawa specifications list open-collector transistor-contact input, a 0 to 12 kHz input frequency and non-isolated circuitry.

WIDTH32.8 mm

HEIGHT130 mm

DEPTH127.2 mm overall

WEIGHT0.30 kg

BRANDYokogawa

PRODUCT TYPEPulse Input / Analog Output Module

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATIONConfirm the complete AAP849 suffix code, compatible FIO node unit, KS1 cable, pulse input frequency, analog output load, channel wiring and configured ranges before replacement.

REQUEST A QUOTE

EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Brand :
Yokogawa
Part Number :
AAP849
Weight :
0.30 kg
Description :
Pulse Input / Analog Output Module

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE

PRODUCT REFERENCE VERIFICATION

AAP849

8-CHANNEL PULSE INPUT / 8-CHANNEL ANALOG OUTPUT MODULE

0 TO 12 kHz · 8 INPUTS / 8 OUTPUTS · NON-ISOLATED

PRODUCT ROLE

AAP849 is a Yokogawa Pulse Input / Analog Output Module (8 input / 8 output, Non-Isolated). Combines eight pulse-train input channels with eight 4 to 20 mA analog output channels for compatible Yokogawa FIO systems.

INSTALLATION CHECK

Confirm the complete AAP849 suffix code, compatible FIO node unit, KS1 cable, pulse input frequency, analog output load, channel wiring and configured ranges before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFY COMPLETE MODULE CONFIGURATION

AAP849

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEPulse Input / Analog Output Module

SIGNALInput: transistor contact / open collector; Output: 4 to 20 mA

CHANNELS8 inputs / 8 outputs

ISOLATIONNon-isolated

Configuration verification
Use the official Yokogawa module specification and the complete installed-system record.

GENERAL INFORMATION

ManufacturerYokogawa

ModelAAP849

Product typePulse Input / Analog Output Module (8 input / 8 output, Non-Isolated)

Channel configuration8 inputs / 8 outputs

SIGNAL AND PERFORMANCE

Signal rangeInput: transistor contact / open collector; Output: 4 to 20 mA

Input frequency / output signal0 to 12 kHz / 4 to 20 mA

Data update periodInput 1 ms / Output 10 ms

Pulse detection edgeTrailing edge

Output load resistance0 to 750 Ω

Output accuracy±48 µA

Output response time40 ms

Circuit-open detection<0.65 mA

ApplicationPulse input and analog output for FIO

CONNECTION AND VERIFICATION

IsolationNon-isolated

External connectionDedicated cable (KS1)

Maximum current consumption310 mA at 5 V DC; 250 mA at 24 V DC

WeightApprox. 0.30 kg

Input sourcePulse train input and analog output field circuits

FAQ

AAP849 Technical, Compatibility and Replacement FAQ

What type of product is AAP849?＋

AAP849 is a Yokogawa Pulse Input / Analog Output Module (8 input / 8 output, Non-Isolated).

What signal range does AAP849 use?＋

AAP849 uses Input: transistor contact / open collector; Output: 4 to 20 mA.

How many channels does AAP849 provide?＋

AAP849 provides 8 inputs / 8 outputs.

Is AAP849 isolated?＋

AAP849 is non-isolated according to the official Yokogawa specification.

What are the update periods for AAP849?＋

AAP849 has a 1 ms input update period and a 10 ms output update period.

What connection and power data apply to AAP849?＋

AAP849 uses Dedicated cable (KS1); maximum current consumption is 310 mA at 5 V DC; 250 mA at 24 V DC, and listed weight is Approx. 0.30 kg.

What must be checked before replacing AAP849?＋

Confirm the complete AAP849 suffix code, compatible FIO node unit, KS1 cable, pulse input frequency, analog output load, channel wiring and configured ranges before replacement.

CONTACT PRODUCT SPECIALIST

Check AAP849 configuration with Frida

Provide the complete AAP849 suffix code, node-unit model, KS1 cable, pulse input frequency, analog output load, channel wiring, quantity and destination for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
AAP849

Official Yokogawa references identify AAP849 as a Pulse Input / Analog Output Module (8 input / 8 output, Non-Isolated).

AAP849 official module documentation

Yokogawa GS 33J60F60-01EN provides the official hardware specifications, signal range, channel count, response data, current consumption, weight, connection options and ordering-code information for AAP849.

OPEN OFFICIAL MODULE SPECIFICATION ↗

Contact to Get Support

Send the complete model, quantity, terminal hardware, system release and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

The reference above is an official Yokogawa module specification. Confirm the complete AAP849 suffix code, compatible FIO node unit, KS1 cable, pulse input frequency, analog output load, channel wiring and configured ranges before replacement.

YOKOGAWA FIO · PULSE INPUT / ANALOG OUTPUT MODULE

How AAP849 Fits a Yokogawa FIO System

Yokogawa is the brand; AAP849 is a Pulse Input / Analog Output Module (8 input / 8 output, Non-Isolated) used with compatible Yokogawa FIO node and field-control systems.

Yokogawa · BRAND

AAP849 Pulse Input / Analog Output Module0 TO 12 kHz · 8 INPUTS / 8 OUTPUTS · NON-ISOLATED

SYSTEM ROLE

PULSE INPUT / ANALOG OUTPUT MODULE

Combines eight pulse-train input channels with eight 4 to 20 mA analog output channels for compatible Yokogawa FIO systems.

INPUT / OUTPUT SIGNAL

TRANSISTOR CONTACT / OPEN COLLECTOR · 4 TO 20 mA

Verify the signal range and channel wiring against the installed field circuit.

TERMINAL CONNECTION

DEDICATED CABLE (KS1)

Confirm the terminal block or cable, node unit and complete suffix code before installation.

System relationship: verify the exact AAP849 label, compatible FIO node unit, terminal hardware, channel configuration and configured signal range before replacement.

VERIFICATION EVIDENCE

Evidence needed to verify AAP849 correctly

Product Identity

Match AAP849 to the complete Yokogawa label, suffix code and installed I/O record.

Installation Context

Document the node unit, slot, terminal hardware, signal range and field wiring.

PRODUCT REFERENCEAAP849Complete model, suffix code and module identity

Configuration Evidence

Confirm the configured signal range, channel allocation, terminal hardware and redundant-module arrangement.

Replacement Check

Do not substitute by appearance. Confirm the complete AAP849 suffix code, compatible FIO node unit, KS1 cable, pulse input frequency, analog output load, channel wiring and configured ranges before replacement.
