/Yokogawa AAP149 16-Channel PM1-Compatible Pulse Input Module

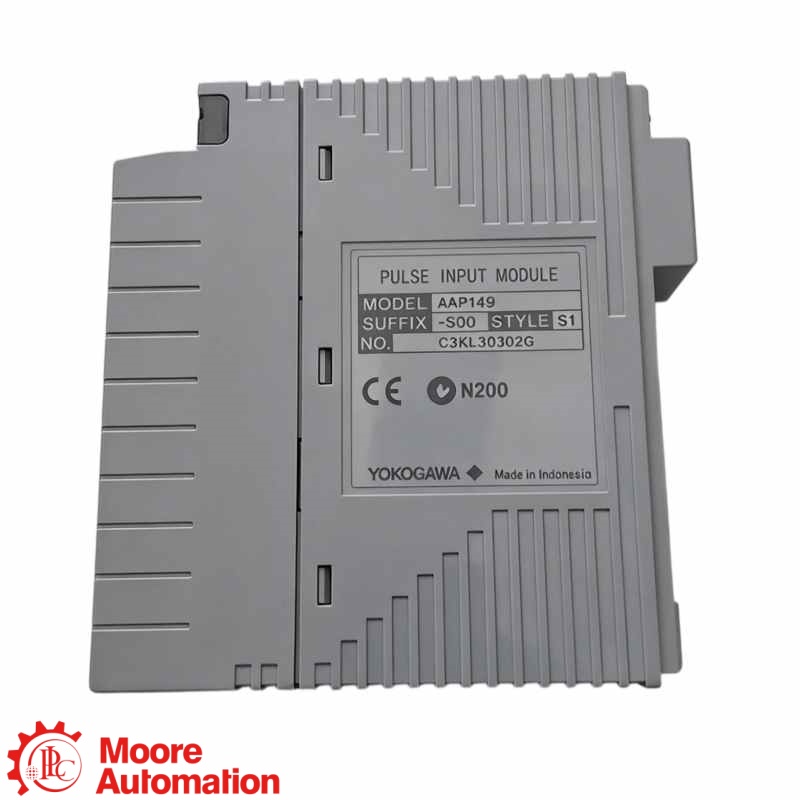

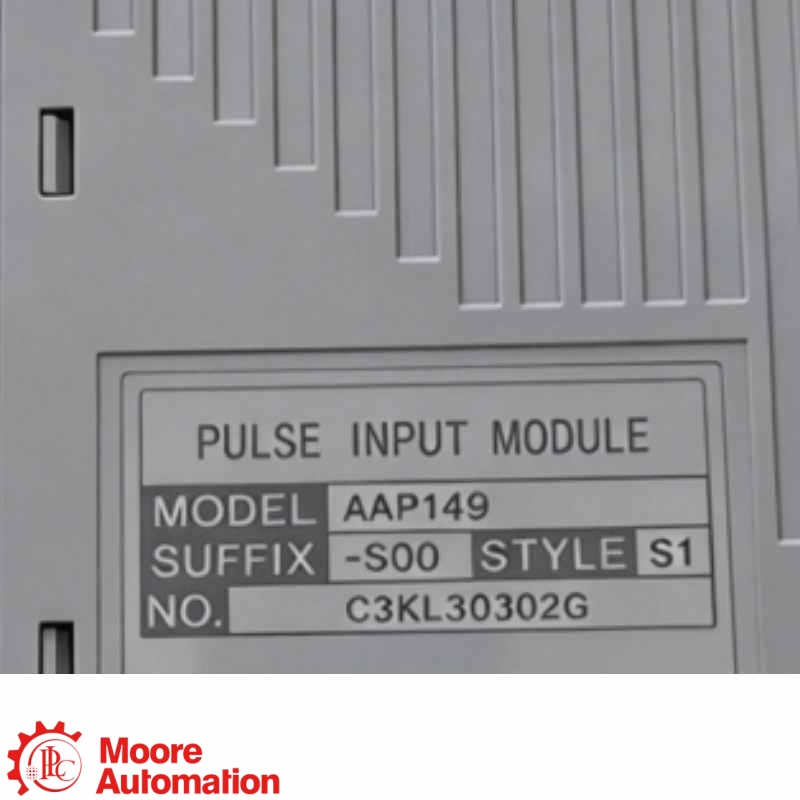

Yokogawa AAP149 16-Channel PM1-Compatible Pulse Input Module

PM1-COMPATIBLE 16-CHANNEL PULSE INPUT MODULE

AAP149

The AAP149 is a Yokogawa PM1-compatible pulse input module that counts pulse-train signals across 16 non-isolated channels. Official Yokogawa specifications list open-collector transistor-contact input and a 0 to 6 kHz input frequency.

WIDTH32.8 mm

HEIGHT130 mm

DEPTH127.2 mm overall

WEIGHT0.30 kg

BRANDYokogawa

PRODUCT TYPEPulse Input Module

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATIONConfirm the complete AAP149 suffix code, compatible FIO node unit, KS2 cable, pulse conditioner card, frequency range and channel wiring before replacement.

REQUEST A QUOTE

EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Brand :
Yokogawa
Part Number :
AAP149
Weight :
0.30 kg
Description :
Pulse Input Module

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE

PRODUCT REFERENCE VERIFICATION

AAP149

PM1-COMPATIBLE 16-CHANNEL PULSE INPUT MODULE

0 TO 6 kHz · 16 INPUTS · NON-ISOLATED

PRODUCT ROLE

AAP149 is a Yokogawa Pulse Input Module (PM1-Compatible, 16-channel, Non-Isolated). Counts sixteen channels of pulse-train signals from compatible pulse input signal conditioner cards.

INSTALLATION CHECK

Confirm the complete AAP149 suffix code, compatible FIO node unit, KS2 cable, pulse conditioner card, frequency range and channel wiring before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFY COMPLETE MODULE CONFIGURATION

AAP149

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEPulse Input Module

SIGNALTransistor contact (open collector)

CHANNELS16 inputs

ISOLATIONNon-isolated

Configuration verification
Use the official Yokogawa module specification and the complete installed-system record.

GENERAL INFORMATION

ManufacturerYokogawa

ModelAAP149

Product typePulse Input Module (PM1-Compatible, 16-channel, Non-Isolated)

Channel configuration16 inputs

SIGNAL AND PERFORMANCE

Signal rangeTransistor contact (open collector)

Input frequency0 to 6 kHz

Data update period10 ms

Pulse detection edgeTrailing edge

ApplicationPM1-compatible pulse count input

CONNECTION AND VERIFICATION

IsolationNon-isolated

External connectionDedicated cable (KS2)

Maximum current consumption400 mA at 5 V DC

WeightApprox. 0.30 kg

Input sourcePulse train input signal conditioner cards

FAQ

AAP149 Technical, Compatibility and Replacement FAQ

What type of product is AAP149?＋

AAP149 is a Yokogawa Pulse Input Module (PM1-Compatible, 16-channel, Non-Isolated).

What signal range does AAP149 use?＋

AAP149 uses Transistor contact (open collector).

How many channels does AAP149 provide?＋

AAP149 provides 16 inputs.

Is AAP149 isolated?＋

AAP149 is non-isolated according to the official Yokogawa specification.

What is the data update period for AAP149?＋

AAP149 has a 10 ms data update period.

What connection and power data apply to AAP149?＋

AAP149 uses Dedicated cable (KS2); maximum current consumption is 400 mA at 5 V DC, and listed weight is Approx. 0.30 kg.

What must be checked before replacing AAP149?＋

Confirm the complete AAP149 suffix code, compatible FIO node unit, KS2 cable, pulse conditioner card, frequency range and channel wiring before replacement.

CONTACT PRODUCT SPECIALIST

Check AAP149 configuration with Frida

Provide the complete AAP149 suffix code, node-unit model, terminal hardware, signal range, channel wiring, quantity and destination for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
AAP149

Official Yokogawa references identify AAP149 as a Pulse Input Module (PM1-Compatible, 16-channel, Non-Isolated).

AAP149 official module documentation

Yokogawa GS 33J60F60-01EN provides the official hardware specifications, signal range, channel count, response data, current consumption, weight, connection options and ordering-code information for AAP149.

OPEN OFFICIAL MODULE SPECIFICATION ↗

Contact to Get Support

Send the complete model, quantity, terminal hardware, system release and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

The reference above is an official Yokogawa module specification. Confirm the complete AAP149 suffix code, compatible FIO node unit, KS2 cable, pulse conditioner card, frequency range and channel wiring before replacement.

YOKOGAWA FIO · ANALOG I/O MODULE

How AAP149 Fits a Yokogawa FIO System

Yokogawa is the brand; AAP149 is a Pulse Input Module (PM1-Compatible, 16-channel, Non-Isolated) used with compatible Yokogawa FIO node and field-control systems.

Yokogawa · BRAND

AAP149 Pulse Input Module0 TO 6 kHz · 16 INPUTS · NON-ISOLATED

SYSTEM ROLE

PULSE INPUT MODULE

Counts sixteen channels of pulse-train signals from compatible pulse input signal conditioner cards.

SIGNAL RANGE

TRANSISTOR CONTACT (OPEN COLLECTOR)

Verify the signal range and channel wiring against the installed field circuit.

TERMINAL CONNECTION

DEDICATED CABLE (KS2)

Confirm the terminal block or cable, node unit and complete suffix code before installation.

System relationship: verify the exact AAP149 label, compatible FIO node unit, terminal hardware, channel configuration and configured signal range before replacement.

VERIFICATION EVIDENCE

Evidence needed to verify AAP149 correctly

Product Identity

Match AAP149 to the complete Yokogawa label, suffix code and installed I/O record.

Installation Context

Document the node unit, slot, terminal hardware, signal range and field wiring.

PRODUCT REFERENCEAAP149Complete model, suffix code and module identity

Configuration Evidence

Confirm the configured signal range, channel allocation, terminal hardware and redundant-module arrangement.
