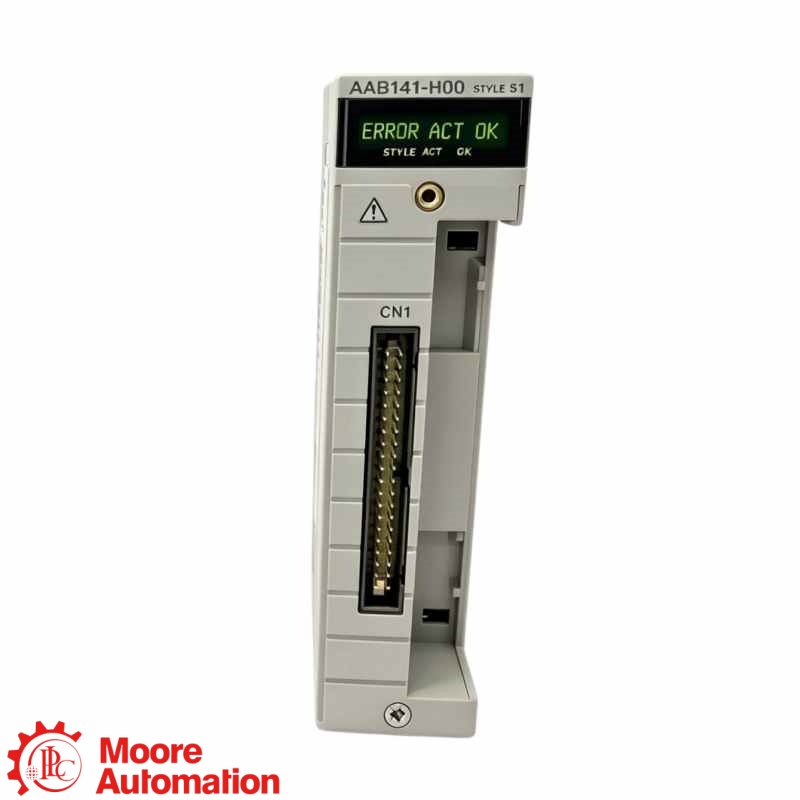

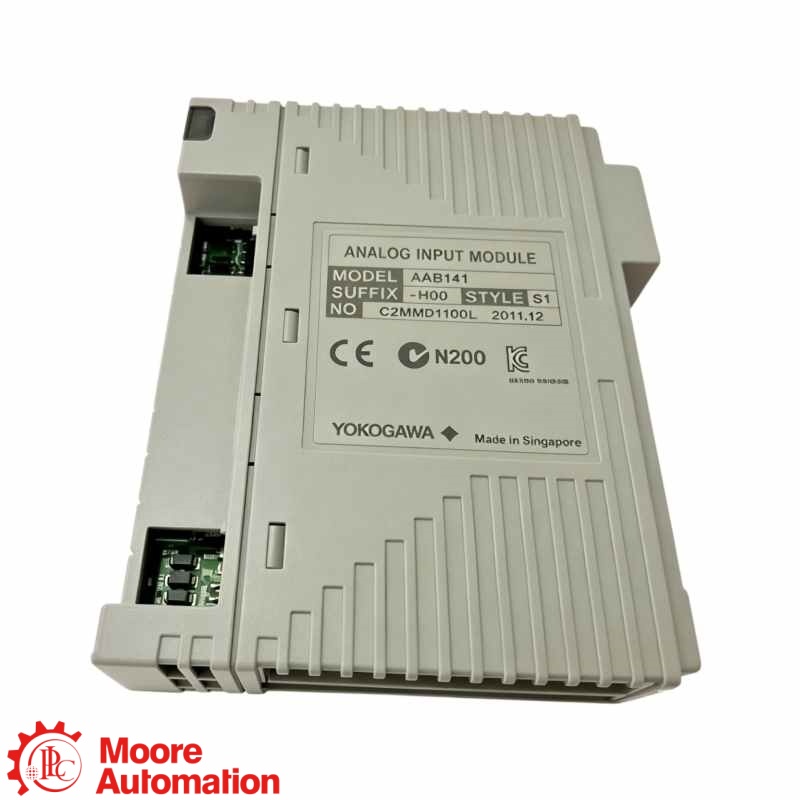

Yokogawa AAB141 16-Channel Analog Input Module

16-CHANNEL ANALOG INPUT MODULE

AAB141

The AAB141 is a Yokogawa analog input module with 16 non-isolated channels. Each channel is software-selectable for 1 to 5 V DC or 4 to 20 mA or 4 to 20 mA input, and HART communication is available for current input.

MODELAAB141

SIGNAL1 to 5 V DC or 4 to 20 mA

CHANNELS16 inputs

ISOLATIONNon-isolated

BRANDYokogawa

PRODUCT TYPEAnalog Input Module

CONDITION / WARRANTYOriginal New · One-Year Warranty

VERIFICATIONConfirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.

REQUEST A QUOTE

EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Brand :
Yokogawa
Part Number :
AAB141
Weight :
0.30 kg
Description :
Analog Input Module

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

PRODUCT INFORMATION● OFFICIAL YOKOGAWA REFERENCE

PRODUCT REFERENCE VERIFICATION

AAB141

16-CHANNEL ANALOG INPUT MODULE

1 TO 5 V OR 4 TO 20 mA · 16 INPUTS · NON-ISOLATED

PRODUCT ROLE

AAB141 is a Yokogawa Analog Input Module (1 to 5 V or 4 to 20 mA, 16-channel, Non-Isolated). Receives sixteen analog field signals; each channel is software-selectable for 1 to 5 V DC or 4 to 20 mA or 4 to 20 mA.

INSTALLATION CHECK

Confirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

OFFICIAL YOKOGAWA REFERENCE

Technical Specifications

VERIFY COMPLETE MODULE CONFIGURATION

AAB141 ANALOG INPUT MODULE

Engineering data at a glance

Click “+” to expand more specifications.

PRODUCT TYPEAnalog Input Module

SIGNAL1 to 5 V DC or 4 to 20 mA

CHANNELS16 inputs

ISOLATIONNon-isolated

Use the official Yokogawa module specification and the complete installed-system record.

General Information−

ManufacturerYokogawa

ModelAAB141

Product typeAnalog Input Module (1 to 5 V or 4 to 20 mA, 16-channel, Non-Isolated)

Channel configuration16 inputs

Signal and Performance＋

Signal range1 to 5 V DC or 4 to 20 mA

Accuracy±4 mV or ±16 µA

Data update period10 ms

Step response100 ms

Input / load limit±7.5 V or 25 mA

Connection and Verification＋

IsolationNon-isolated

External connectionKS cable

Maximum current consumption480 mA at 5 V DC and 120 mA at 24 V DC

WeightApprox. 0.30 kg

HART communicationAvailable at current input

Confirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.

Official source: Yokogawa GS 33J60F60-01EN — Analog I/O Modules (for FIO).

FAQ

AAB141 Technical, Compatibility and Replacement FAQ

What type of product is AAB141?＋

AAB141 is a Yokogawa Analog Input Module (1 to 5 V or 4 to 20 mA, 16-channel, Non-Isolated).

What signal range does AAB141 use?＋

AAB141 uses 1 to 5 V DC or 4 to 20 mA.

How many channels does AAB141 provide?＋

AAB141 provides 16 inputs.

Is AAB141 isolated?＋

AAB141 is non-isolated according to the official Yokogawa specification.

What is the data update period for AAB141?＋

AAB141 has a 10 ms data update period.

What connection and power data apply to AAB141?＋

AAB141 uses KS cable; maximum current consumption is 480 mA at 5 V DC and 120 mA at 24 V DC, and listed weight is Approx. 0.30 kg.

What must be checked before replacing AAB141?＋

Confirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.

CONTACT PRODUCT SPECIALIST

Check AAB141 configuration with Frida

Provide the complete AAB141 suffix code, node-unit model, terminal hardware, signal range, channel wiring, quantity and destination for compatibility checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
AAB141

Official Yokogawa references identify AAB141 as a Analog Input Module (1 to 5 V or 4 to 20 mA, 16-channel, Non-Isolated).

AAB141 official module documentation

Yokogawa GS 33J60F60-01EN provides the official hardware specifications, signal range, channel count, response data, current consumption, weight, connection options and ordering-code information for AAB141.

OPEN OFFICIAL MODULE SPECIFICATION ↗

Contact to Get Support

Send the complete model, quantity, terminal hardware, system release and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

The reference above is an official Yokogawa module specification. Confirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.

YOKOGAWA FIO · ANALOG I/O MODULE

How AAB141 Fits a Yokogawa FIO System

Yokogawa is the brand; AAB141 is a Analog Input Module (1 to 5 V or 4 to 20 mA, 16-channel, Non-Isolated) used with compatible Yokogawa FIO node and field-control systems.

Yokogawa · BRAND

AAB141 Analog Input Module1 TO 5 V OR 4 TO 20 mA · 16 INPUTS · NON-ISOLATED

SYSTEM ROLE

ANALOG INPUT MODULE

Receives sixteen analog field signals; each channel is software-selectable for 1 to 5 V DC or 4 to 20 mA or 4 to 20 mA.

SIGNAL RANGE

1 TO 5 V DC OR 4 TO 20 MA

Verify the signal range and channel wiring against the installed field circuit.

TERMINAL CONNECTION

KS CABLE

Confirm the terminal block or cable, node unit and complete suffix code before installation.

System relationship: verify the exact AAB141 label, compatible FIO node unit, terminal hardware, channel configuration and configured signal range before replacement.

VERIFICATION EVIDENCE

Evidence needed to verify AAB141 correctly

Product Identity

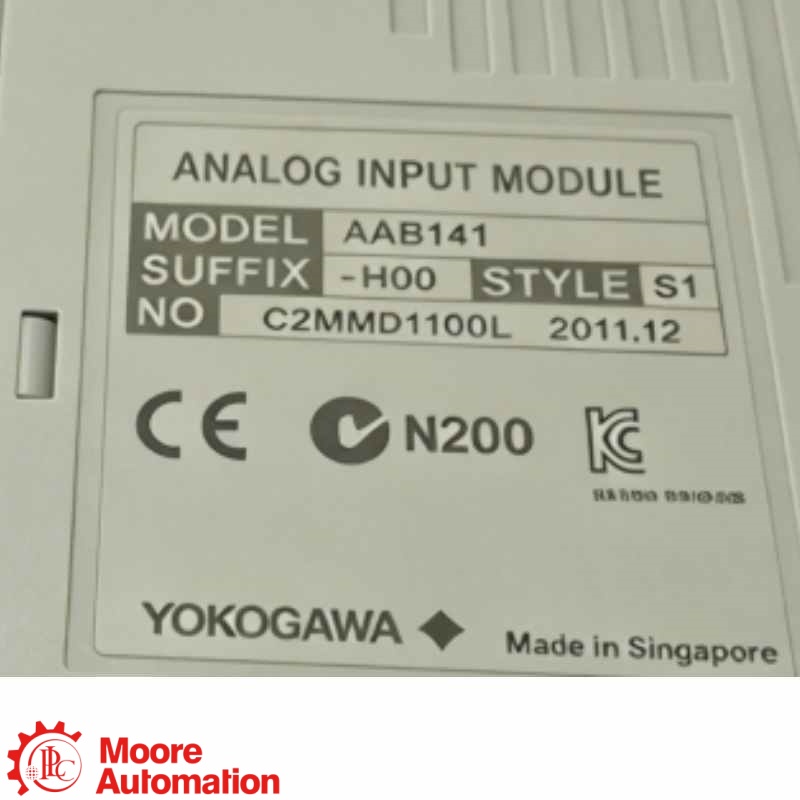

Match AAB141 to the complete Yokogawa label, suffix code and installed I/O record.

Installation Context

Document the node unit, slot, terminal hardware, signal range and field wiring.

PRODUCT REFERENCEAAB141Complete model, suffix code and module identity

Configuration Evidence

Confirm the configured signal range, channel allocation, terminal hardware and redundant-module arrangement.

Replacement Check

Do not substitute by appearance. Confirm the complete AAB141 suffix code, compatible FIO node unit, KS cable, terminal hardware, channel mode and HART requirements before replacement.
