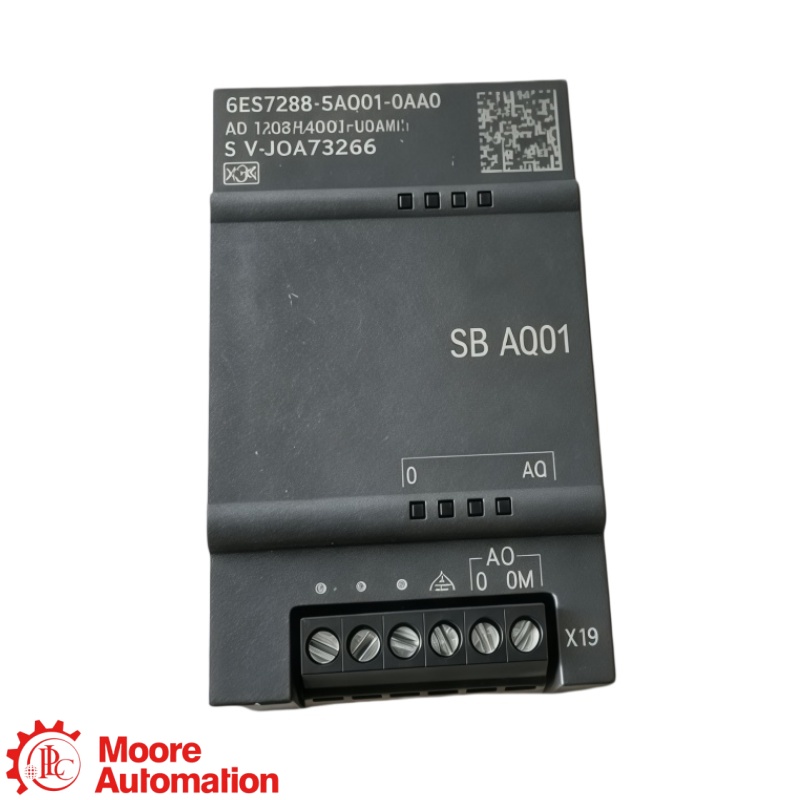

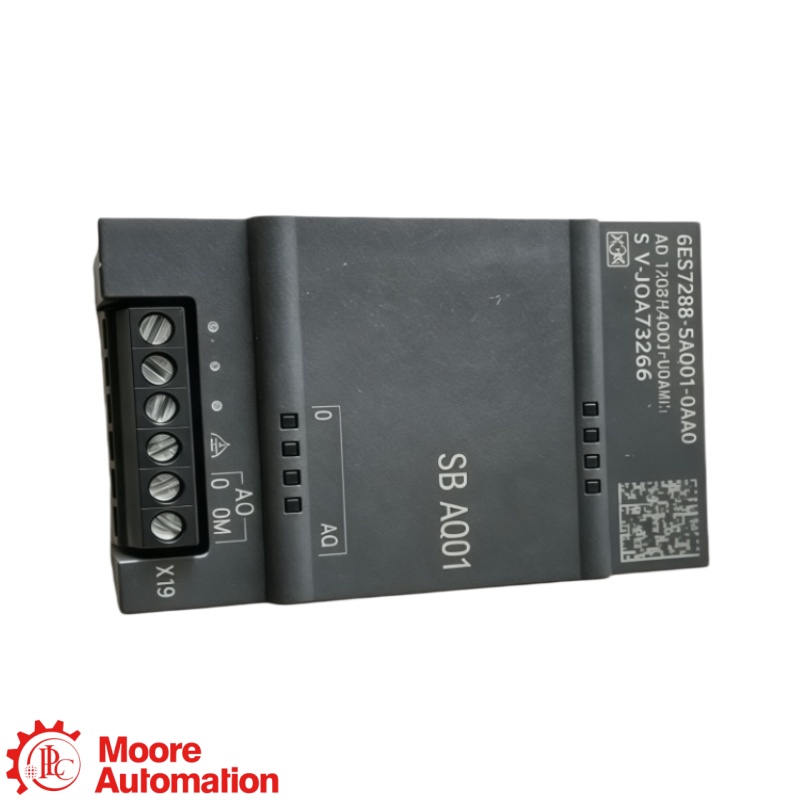

/Siemens 6ES7288-5AQ01-0AA0 SIMATIC S7-200 SMART SB AQ01 Analog Output Signal Board

Siemens 6ES7288-5AQ01-0AA0 SIMATIC S7-200 SMART SB AQ01 Analog Output Signal Board

SIMATIC S7-200 SMART · SB AQ01

6ES7288-5AQ01-0AA0

The 6ES7288-5AQ01-0AA0 is a Siemens SIMATIC S7-200 SMART SB AQ01 analog output signal board with one voltage or current output.

ANALOG OUTPUT1 AO

VOLTAGE±10 V

CURRENT0–20 mA

RESOLUTION12 / 11 bit

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● ANALOG OUTPUT SIGNAL BOARD

SIMATIC S7-200 SMART MODULE

6ES7288-5AQ01-0AA0

SB AQ01

Analog Output · 1 AO

MODULE ROLE

6ES7288-5AQ01-0AA0 is a SIMATIC S7-200 SMART SB AQ01 analog output signal board providing one current or voltage output.

CONFIGURATION NOTE

For 6ES7288-5AQ01-0AA0, Siemens specifies one analog output, ±10 V voltage mode, 0–20 mA current mode, 12-bit maximum resolution and typical power loss of 1.5 W.

👩‍💼
