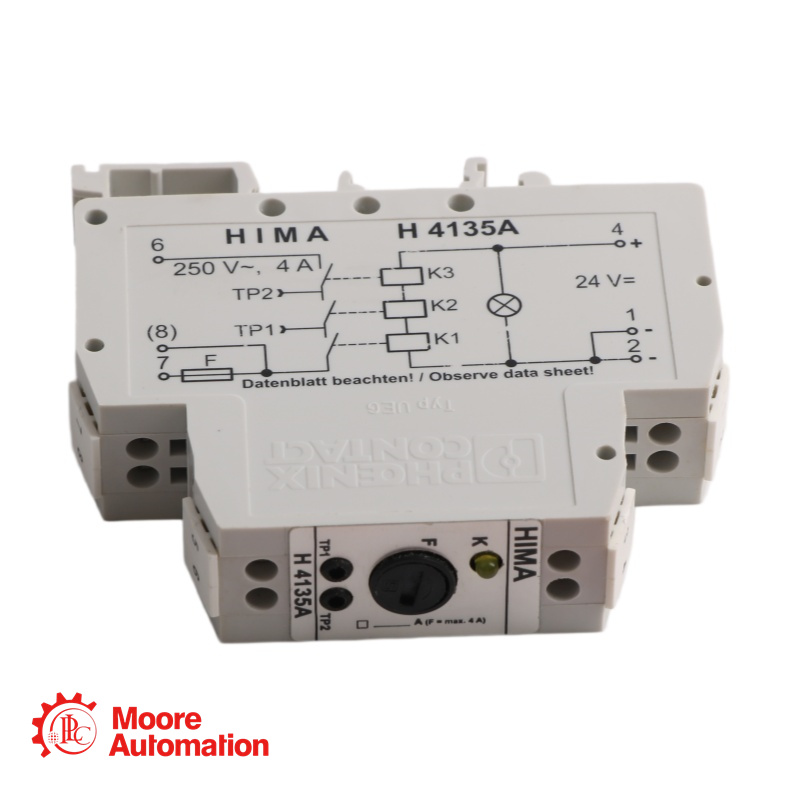

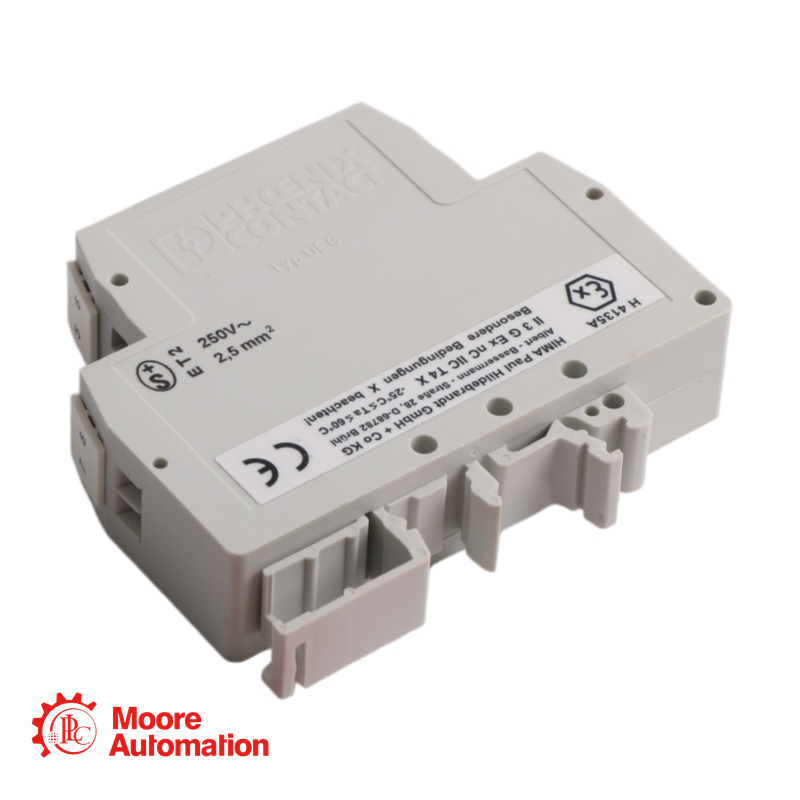

H4135A HIMA SAFETY-RELATED RELAY

The HIMA H4135A is a safety-related relay in an electronic housing.
  • Brand :

    HIMA
  • Part Number :

    H4135A
  • Weight :

    0.08kg
  • Dimension :

    2x7x8cm
  • Country of Origin :

    USA
  • HS Code :

    8537101190
  • Description :

    SAFETY-RELATED RELAY

Click Here To Get Price: Frida Zhang (Sales Champion)

sales5@mooreplc.com

+86 15359408275


PRODUCT
INTRODUCTION

Basic Information

Product Name: H4135A
Manufacturer: HIMA Paul Hildebrandt GmbH + Co. KG
Product Type: Safety-Related Relay Module (Planar F System)
Safety Integrity Level: Up to SIL 3 (IEC 61508) / AK 5, 6 (DIN V 19250)
Intended Application: Safety shutdown in process control, Burner Management Systems (BMS), Emergency Shutdown (ESD)
Safe State: De-energized state
Relay Configuration: Diversity relays

Product Specification

Nominal Input Voltage: 24 VDC
Input Voltage Tolerance: -15% to +20%
Maximum Input Current: ≤ 40 mA
Input Type: Floating (galvanically isolated)
Switching Voltage Range: ≥ 5 V to ≤ 250 VAC / ≤ 127 VDC
Switching Current Range: ≥ 10 mA to ≤ 4 A
Ambient Temperature Range: -25 °C to +60 °C


OUR
PRODUCT
INTRODUCTION

Product Description

The HIMA H4135A is a safety-related relay in an electronic housing, certified for use in safety instrumented systems up to Safety Integrity Level 3 (SIL 3) according to IEC 61508, and AK 5/6 according to DIN V 19250.
