SIMATIC S7-200 SMART, PROFIBUS DP Slave module, 9.6 KB to 12 MB, 1 interface PROFIBUS-DP/MPI
Brand :
SiemensPart Number :
6DR5013-0FN00-0AA3Weight :
1.6 kgDimension :
10.2x21.3x11cmCountry of Origin :
GermanyHS Code :
8537101190Description :
Electropneumatic Positioner

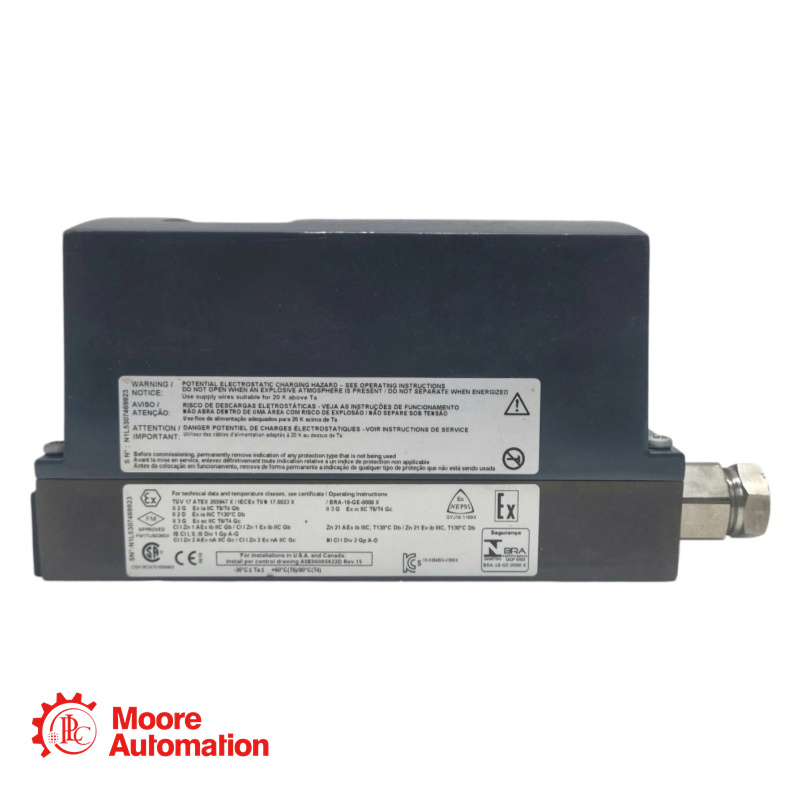

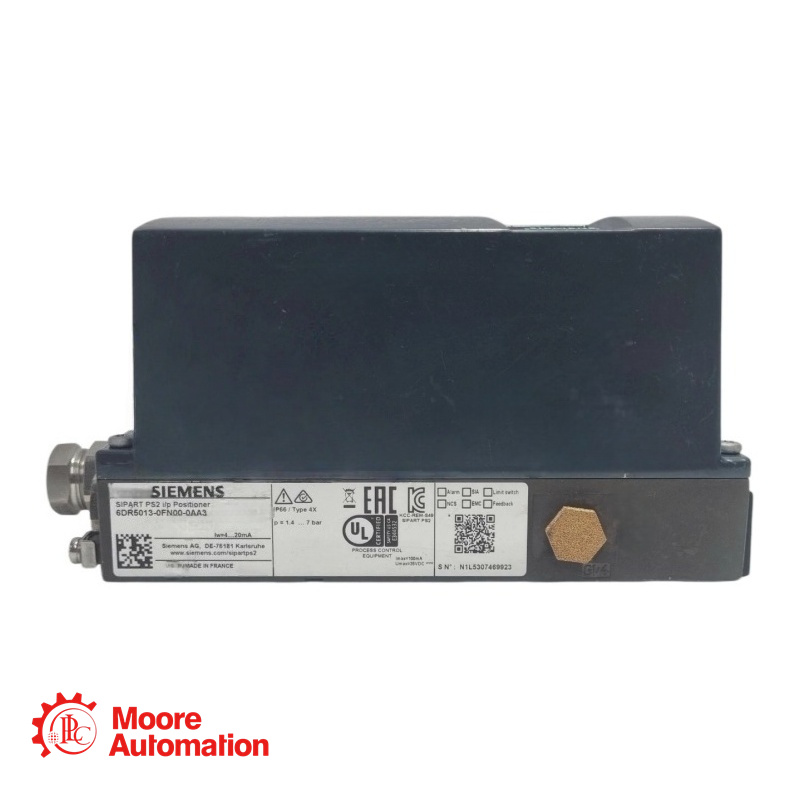

6DR5013-0FN00-0AA3 At A Glance
SIPART PS2 Smart, electropneumatic positioner, 4...20mA, Ex/nEx, single-acting, aluminum enclosure, for pneumatic linear and part-turn actuators. Non-contacting (wear-free) position detection (NCS).
Brand
Siemens
Origin
Germany
Product Family
SIPART PS2
Product lifecycle
Active Product
Net weight
1.6 kg
Condition
Original New
Warranty
12 Months
6DR5013-0FN00-0AA3 Specification
Parameter
Specification
Part Number
6DR5013-0FN00-0AA3
Product Type
SIPART PS2 Electropneumatic Positioner
Enclosure Material
Polycarbonate (glass-fiber reinforced)
Pneumatic System
Single-acting
Communication
Without HART
Limit Monitor
With limit monitor module (for position feedback)
Manometer Block
With manometer block (for displaying supply and output pressures)
Manometer Block
With manometer block (for displaying supply and output pressures)
Electrical Connection
Cable gland M20 x 1.5 or ½-14 NPT
Pneumatic Connection
Female thread G¼ or ¼-18 NPT
Input Signal
4 to 20 mA (2-wire)
Power Supply (2-wire)
≥ 3.6 mA to maintain auxiliary power; load voltage: 6.36 V typical (318 Ω at 20 mA)
Auxiliary Power (Air Supply)
1.4 to 7 bar (20.3 to 101.5 psi); clean, dry instrument air or natural gas (with restrictions)
Ambient Temperature (Operation)
-30 to +80 °C (-22 to +176 °F) (T4); -30 to +50 °C (T6)
▶Chemical Industry: Control of valves in chemical processing plants requiring precise positioning in non-hazardous or Zone 2 hazardous areas.
▶Oil and Gas: Valve positioning in upstream, midstream, and downstream applications where non-incendive equipment is required.|
|
|
|
|
|
|
Q: What is the primary function of the 6DR5013-0FN00-0AA3 positioner?
▶A: It is an electropneumatic positioner that converts a 4-20 mA setpoint signal into a pneumatic output to accurately position a pneumatic actuator (linear or part-turn) in a control valve.
Q: What type of explosion protection does this device have?
▶A: It has Ex ec IIC T6/T4 Gc protection, which is non-incendive (increased safety) for use in Zone 2 hazardous areas (gases, vapors, mists) . It is not certified for Zone 0 or Zone 1.
Q: Does this positioner support HART communication?
▶A: No. This version (6DR5013) is without HART. HART versions are identified by different part number positions (e.g., 6DR51xx or 6DR52xx).
Q: Can this positioner be operated with natural gas as the actuator medium?
▶A: Yes, but with strict safety precautions. It is only permitted with intrinsically safe (Ex ia) power supplies, not in enclosed spaces, and requires adequate ventilation. The mechanical limit switch module must not be used . For this model (Ex ec), natural gas operation is not permitted because it requires Ex ia power supplies.
