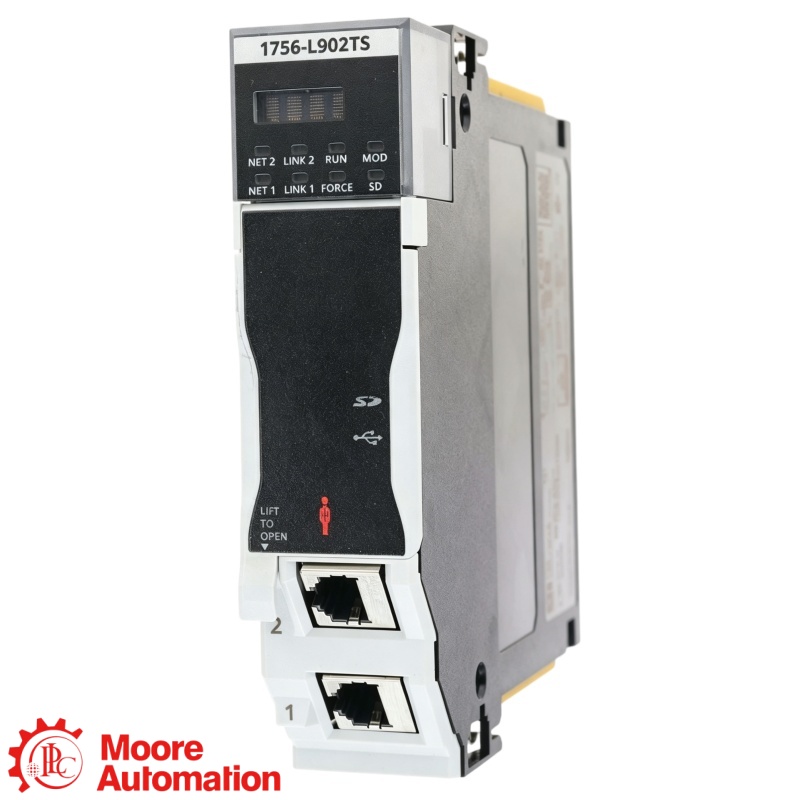

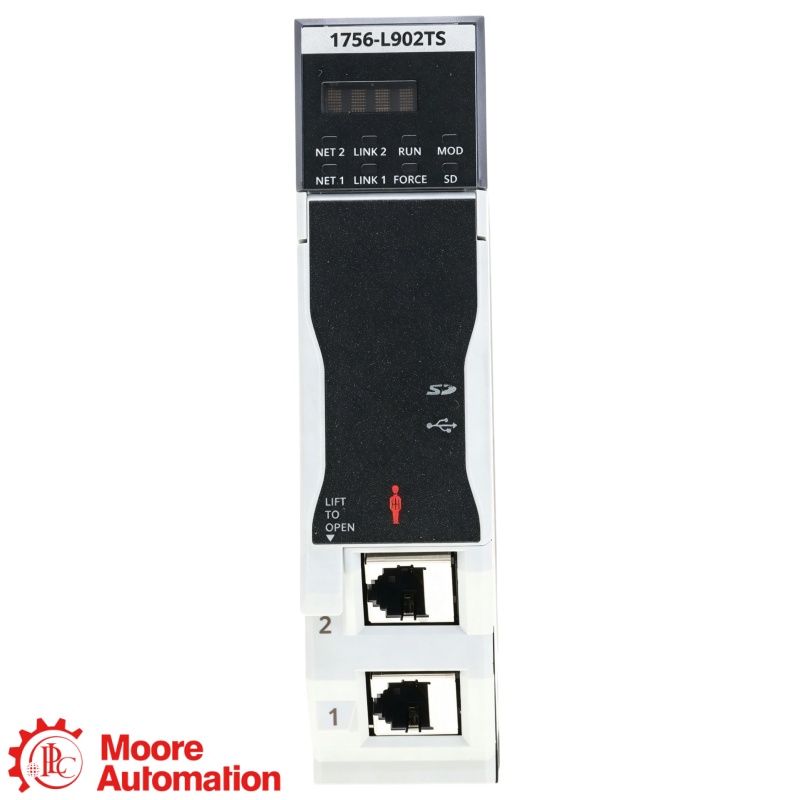

5590 SAFETY CONTROLLER

1756-L902TS

5590 SAFETY CONTROLLER

2 MB STANDARD + 2 MB SAFETY · 30 ETHERNET/IP DEVICES · 300 OPC UA NODES

PRODUCT ROLE

1756-L902TS is a 5590 controller with safety capability for machine and process applications. It provides separate 2 MB standard and 2 MB safety memory areas.

INSTALLATION CHECK

Confirm a compatible 1756 chassis and power supply, Series B or C chassis temperature limits, controller firmware, safety project configuration and network architecture before installation.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1756-L902TS order number is structured

1756

Platform identifier1756 chassis-based 5590 controller platform

L902TS

Exact ordered suffixRetain the complete suffix when ordering

OFFICIAL MANUFACTURER REFERENCE

Technical Specifications

1756 TECHNICAL DATA ↗

1756-L902TS

Engineering data at a glance

Click “+” to expand the verified information.

Standard / safety memory2 MB / 2 MB

EtherNet/IP devices30

OPC UA nodes300

Ethernet interfaces2 × 1 Gb

Verified configuration

Official product data lists 1756-L902TS with 2 MB standard memory, 2 MB safety memory, 30 EtherNet/IP devices, 300 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

General Information −

BrandPLC

Model1756-L902TS

Product category5590 safety controller

Verification statusExact catalog number listed in official product documentation

Official Documentation ＋

1756-TD001 technical data1756-TD001

Exact catalog match1756-L902TS listed

Required confirmationSeries A nameplate, chassis series, firmware, safety project, network and power requirements

Ordering Check ＋

Safety configuration and orderingOrder 1756-L902TS only after confirming the complete catalog number, Series A nameplate, 2 MB standard and safety memory requirement, chassis series, firmware and required safety integrity configuration.

Quotation evidenceExact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements

Source: official manufacturer product page and publication 1756-TD001, which list the exact 1756-L902TS configuration.

FAQ

Questions Buyers Ask Most

What control role does 1756-L902TS perform?＋

1756-L902TS is a chassis-based 5590 controller with safety capability. It executes standard and safety control tasks; use requires a compatible 1756 chassis, supported firmware and a correctly validated safety project.

How is memory configured in 1756-L902TS?＋

1756-L902TS provides 2 MB of standard user memory and 2 MB of safety memory. Confirm that both the standard application and the safety task fit within their respective memory areas before migration or commissioning.

What network capacity does 1756-L902TS support?＋

1756-L902TS supports 30 EtherNet/IP devices and 300 OPC UA nodes through two integrated 1 Gb Ethernet ports. Actual use must remain within controller connections, task loading and the approved network architecture.

What chassis temperature limits apply to 1756-L902TS?＋

1756-L902TS is specified for 0…60 °C in a Series C standard chassis and 0…50 °C in a Series B standard chassis. Verify the chassis series, enclosure temperature and ventilation before installation.

How should the USB-C interface on 1756-L902TS be used?＋

The USB-C interface on 1756-L902TS is intended for temporary local programming and maintenance access. It is not a substitute for the permanent EtherNet/IP control network.

Can a project for another 5590 controller be loaded directly into 1756-L902TS?＋

A project must be checked for controller catalog, firmware, standard and safety memory, safety signature, I/O connections and network capacity before use with 1756-L902TS. Do not assume another 5590 configuration is directly interchangeable.

What ordering data is required for 1756-L902TS?＋

Provide the complete 1756-L902TS catalog number, quantity, Series A nameplate, chassis series, firmware revision, safety application level, EtherNet/IP device count, OPC UA node requirement and destination.

CONTACT PRODUCT SPECIALIST

Check 1756-L902TS configuration with Frida

Exact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements for compatibility and availability checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

OFFICIAL DATASHEET

Manuals and Official References for 1756-L902TS

Official product data lists 1756-L902TS with 2 MB standard memory, 2 MB safety memory, 30 EtherNet/IP devices, 300 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

1756-L902TS Official Technical Data

Official product data lists 1756-L902TS with 2 MB standard memory, 2 MB safety memory, 30 EtherNet/IP devices, 300 OPC UA nodes, two 1 Gb Ethernet ports and USB-C local access.

1756 TECHNICAL DATA ↗

Contact to Get Support

Exact model, Series A nameplate, firmware, chassis, safety project, quantity and EtherNet/IP/OPC UA requirements.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Source: official manufacturer product page and publication 1756-TD001, which list the exact 1756-L902TS configuration.

MODEL IDENTIFICATION

How the 1756-L902TS reference should be verified

1756-L902TS is the complete product reference. Match it to the nameplate, supported platform, firmware and documented application.

PLATFORM / TYPE1756 chassis-based 5590 controller platform

→

COMPLETE MODEL1756-L902TS

→

CONFIGURATION / SYSTEMSeries A nameplate, chassis series, firmware, safety project, network and power requirements

Installed System

Record the installed platform, slot or base, power supply, firmware or series, and application revision.

Network Evidence

Record Ethernet ports, EtherNet/IP device count, OPC UA nodes and network topology.

Power Evidence

Confirm chassis power capacity and the official module current requirements before installation.

Migration Limit

Do not replace or migrate until the exact catalog, platform, firmware, connections and environmental limits are verified.

VERIFICATION EVIDENCE

Evidence needed to verify 1756-L902TS correctly

Product Identity

Match 1756-L902TS to the complete nameplate and documented product record.

Installation Context

Document the platform, installed position, power supply, firmware or series, enclosure and all connected devices.

PRODUCT REFERENCE1756-L902TSComplete 5590 safety controller reference

Configuration Evidence

Use the complete nameplate, 1756-TD001 and installed-system records to verify identity and configuration.

Replacement Check

Match the platform, firmware or series, connections, application and environmental requirements before replacement.
