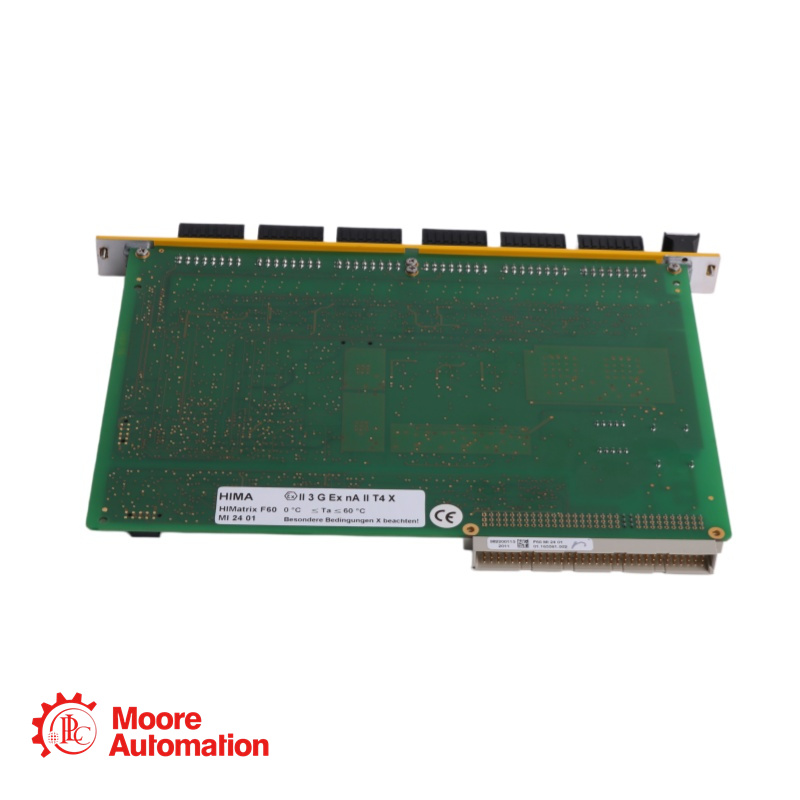

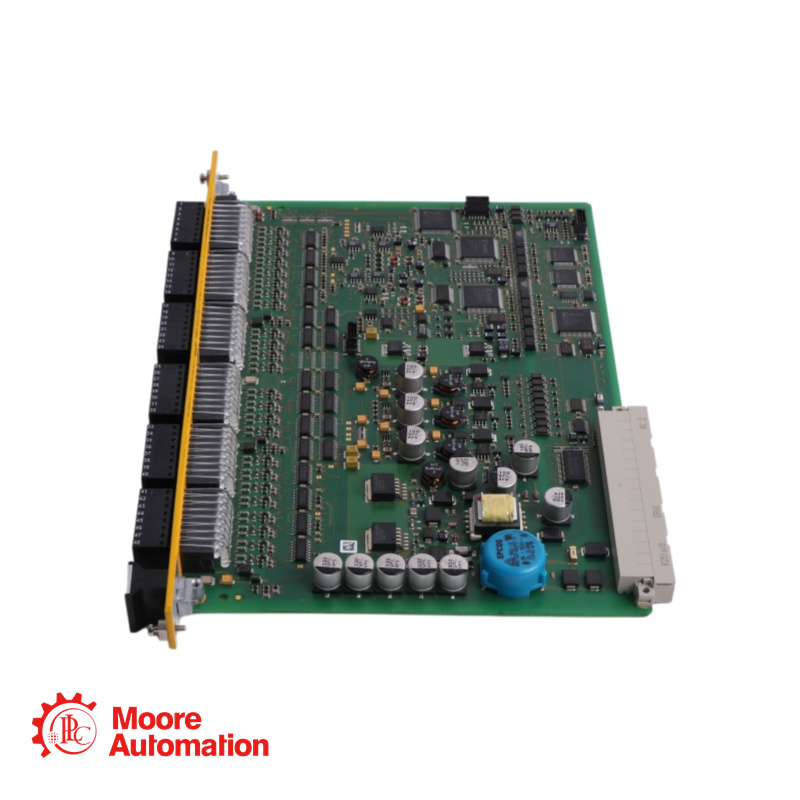

Hima F60 CPU 01 Safety-Related Controller

Contact Here!

Sales Manager Frida ★★★★★

Description

• The F60 CPU 01 module is the central processing unit of the HIMatrix F60 system, responsible for executing the operating system, running the user application, and managing all communication interfaces.

Specification

●Response time:≥ 20 ms
●Ethernet interfaces:4 x RJ-45, 10BASE-T/100BASE-Tx with integrated switch
●Operating voltage:24 VDC
●Operating data:3.3 VDC / 1.5 A
●Ambient temperature:0...+60 °C
●Storage temperature:-40...+85 °C
●Space requirement:6 RU, 4 HP

Application

The F60 CPU 01 is widely used in:

Process Industry:Chemical, petrochemical, pharmaceutical

Oil & Gas:Fire and gas detection systems, pipeline monitoring, wellhead control

Power Generation:Turbine control, boiler protection, burner management

Railway:Signal control, level crossing protection, rolling stock safety systems

Building Automation:Fire alarm systems

FAQ for F60 CPU 01

• Q1: How do I reset the CPU if I forgot the administrator password?

A: Use the reset key:
Unplug all fieldbus connectors
Insert an insulated pin into the small round hole on the front plate
Reboot the controller while holding the pin for at least 20 seconds
After reboot, default settings apply (IP: 192.168.0.99, Administrator without password)
Configure new parameters and reboot again without the reset key engaged

• Q2: What do the different LED states indicate?

A: RUN (Green ON) → Controller in STOP or RUN, normal operation
ERR (Red ON) → ERROR STOP, internal system fault, or missing license
ERR (Red Blinking) → Operating system fault or boot loader waiting for new OS
FORCE (Yellow Blinking) → Forcing active (at least one variable forced)
PROG (Yellow ON) → Configuration or OS loading in progress
All LEDs briefly light simultaneously during power-on self-test.
