GE IS220PAOCH1B Mark VIe Analog Output Pack

GE MARK VIE · 8-CHANNEL ANALOG OUTPUT

IS220PAOCH1B

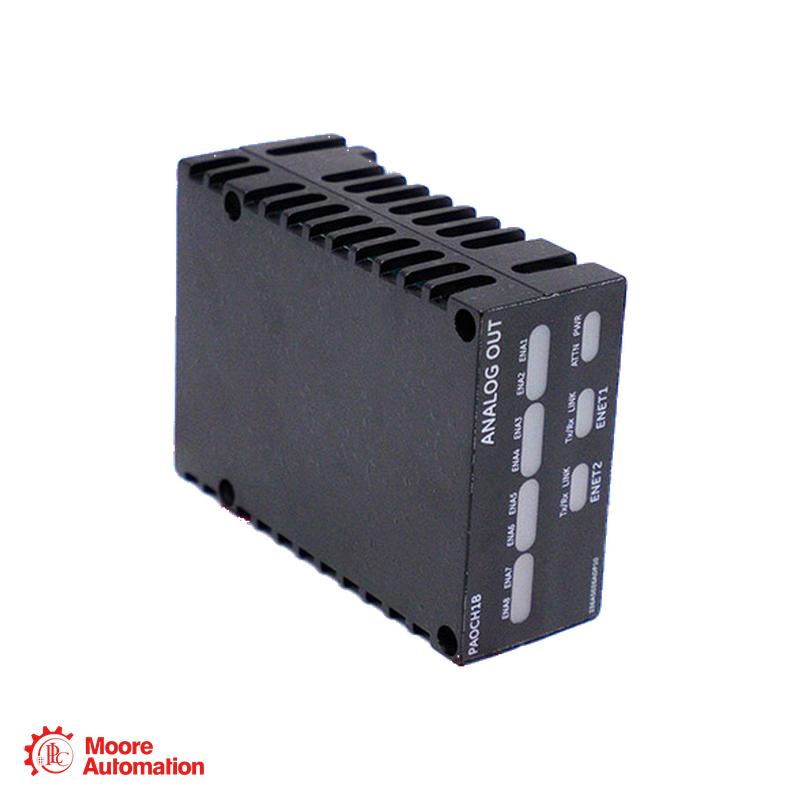

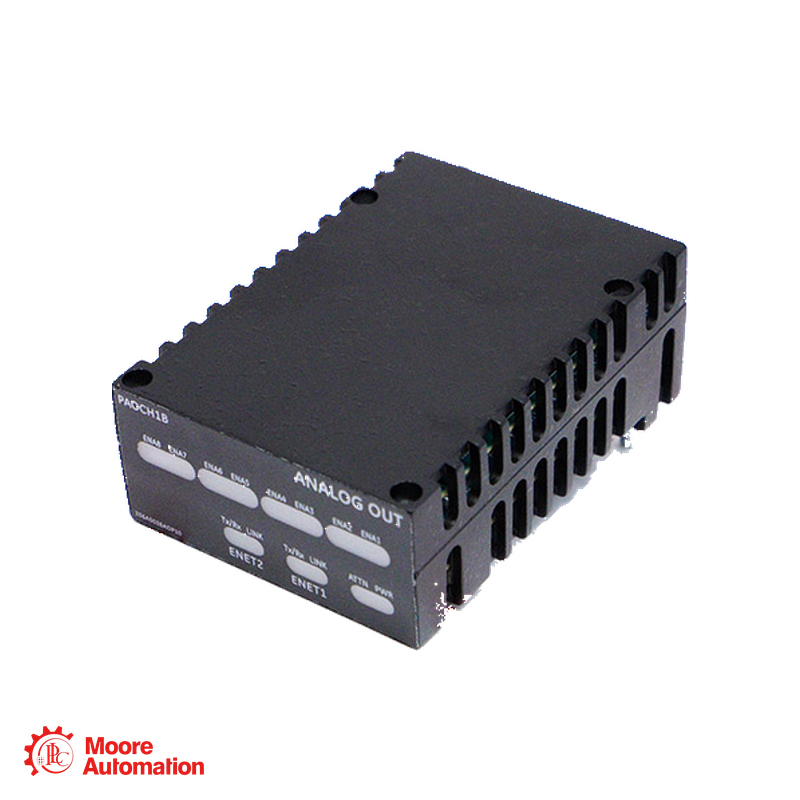

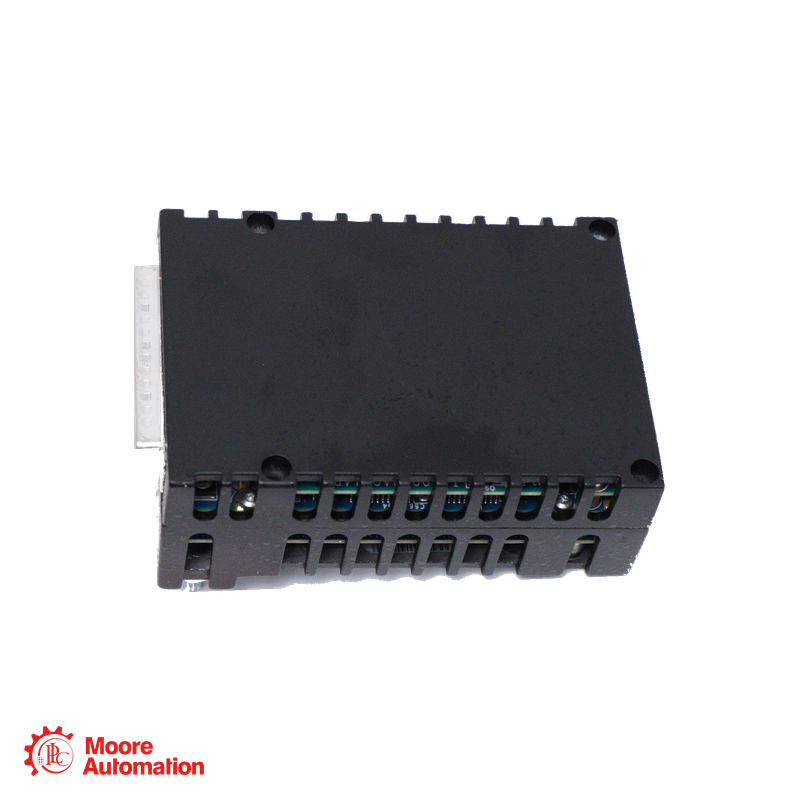

IS220PAOCH1B is a GE Mark VIe PAOC analog output pack with eight 0–20 mA current outputs, dual I/O Ethernet connectors and output-current feedback. It connects directly to a compatible analog terminal board.

PRODUCT TYPEANALOG OUTPUT

PLATFORMMark VIe

OUTPUTS8 channels

SIGNAL0–20 mA

MANUFACTURERGE

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

GE ● 8-CHANNEL ANALOG OUTPUT

MARK VIE

IS220PAOCH1B

ANALOG OUTPUT

MARK VIE · PAOC · CURRENT-LOOP OUTPUT

MODULE ROLE

IS220PAOCH1B converts Mark VIe IONet output commands into eight simplex current-loop outputs through a compatible terminal board.

LONG DESCRIPTION

IS220PAOCH1B provides 16-bit current-output conversion and individual output-current monitoring. Two RJ-45 network connections carry I/O data, a three-pin connector receives 28 Vdc power, and a DC-37 connector mates with the field terminal board. This H1B hardware uses the BPPC processor generation.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the IS220PAOCH1B Reference Is Structured

Issuing organizationGE Power, Salem, Virginia

Substance designationLegacy non-RoHS designation

Assembly levelOne or more PCBAs in an enclosure

PAOC

Functional mnemonicAnalog output

Technology codeIncludes surface-mount components

Assembly variantPAOC H1 hardware variant

Compatibility versionBackward-compatibility version B

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗

IS220PAOCH1B ANALOG OUTPUT

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUTS8

CURRENT0–20 mA

CONVERSION16-bit

IONET2 ports

PAOC output function: eight simplex current outputs with 16-bit conversion and individual current feedback.

Module configuration The complete reference IS220PAOCH1B identifies the PAOC H1B analog output pack. The compatible TBAO revision is H1C; earlier TBAOH1A/H1B boards do not provide the specified PAOC accuracy.

GENERAL INFORMATION −

BrandGE

Part numberIS220PAOCH1B

Product typeAnalog Output Pack

Current outputsEight single-ended simplex channels

Output span0–20 mA

Processor generationBPPC

NETWORK & CONNECTIONS ＋

I/O networkTwo RJ-45 Ethernet connectors

Terminal connectorDC-37 pin

Power connectionThree-pin, 28 Vdc input

OUTPUT PERFORMANCE ＋

D/A resolution16-bit

Current feedbackIndividual channel monitoring

Compliance voltage18 V

Output enableMechanical disconnect relay per output

Terminal board compatibilityTBAOH1C; STAOH1A or STAOH2A

OPERATING CHARACTERISTICS ＋

Output control: Eight simplex 0–20 mA loops with current feedback and output-disconnect relays. Apply the documented load and thermal derating for the installed hardware.

Source: GEH-6721T, Volume II, PAOC Analog Output Module, chapter 6; GEH-6721 Volume I, BPPC migration table; GEH-6725R, section 3.3 for H1B electrical ratings.

FAQ

Questions Buyers Ask Most

How many outputs are provided by IS220PAOCH1B?＋

IS220PAOCH1B provides eight single-ended simplex 0–20 mA current-loop outputs.

What terminal boards work with IS220PAOCH1B?＋

IS220PAOCH1B is used with TBAOH1C or compatible STAO boards. The PAOC manual excludes earlier TBAOH1A/H1B revisions from full-accuracy operation.

How does IS220PAOCH1B connect to IONet?＋

IS220PAOCH1B provides two RJ-45 Ethernet connectors and a separate three-pin power input. Its DC-37 connector mates directly with the terminal board.

Does IS220PAOCH1B monitor the current outputs?＋

IS220PAOCH1B includes current feedback for each output and a relay that can disconnect that output from its field load.

Which processor generation applies to IS220PAOCH1B?＋

IS220PAOCH1B is the BPPC-based H1B hardware form. Use the matching firmware and site migration procedure when changing hardware generation.

Other Available Revisions for the IS220PAOCH1B＋

GE lists PAOCH1B as the BPPC successor to PAOCH1A. For IS220PAOCH1B, confirm the installed ControlST version, pack firmware and terminal board before applying that migration.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Product Information for
IS220PAOCH1B

Official manufacturer-manual PDF status for GE IS220PAOCH1B.

Official datasheet status

A direct GE-hosted instruction-manual PDF covering IS220PAOCH1B was not confirmed in the public manufacturer library. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

GEH-6721T, Volume II, PAOC Analog Output Module, chapter 6; GEH-6721 Volume I, BPPC migration table; GEH-6725R, section 3.3 for H1B electrical ratings.

GE MARK VIE SYSTEM RELATIONSHIP

How IS220PAOCH1B Fits Mark VIe Control

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PAOCH1B is the analog output pack used for simplex current-loop output.

GE · BRAND

GE Mark VIeAnalog Output Pack

SYSTEM ROLE

Analog Output Pack

Generates current-loop output signals from IONet commands.

MODULE / CONFIGURATION

8 outputs · 0–20 mA

A 16-bit DAC drives each output, with separate current-feedback monitoring.

I/O ROLE

IS220PAOCH1B · Analog Output Pack

Dual Ethernet connections link the pack to the configured Mark VIe controller network.

System relationship: PAOC processes network output commands; TBAO or STAO provides the field wiring connections.

APPLICATION AREAS

Application map for IS220PAOCH1B

Current-Loop ControlGenerate analog output commands for configured field equipment

Simplex Analog OutputsProvide eight individual current-output channels

MARK VIE ANALOG OUTPUT IS220PAOCH1B IS220PAOCH1B · Analog Output Pack

IONet IntegrationReceive controller commands through the I/O Ethernet network

Output MonitoringReturn output-current status to the Mark VIe control application
