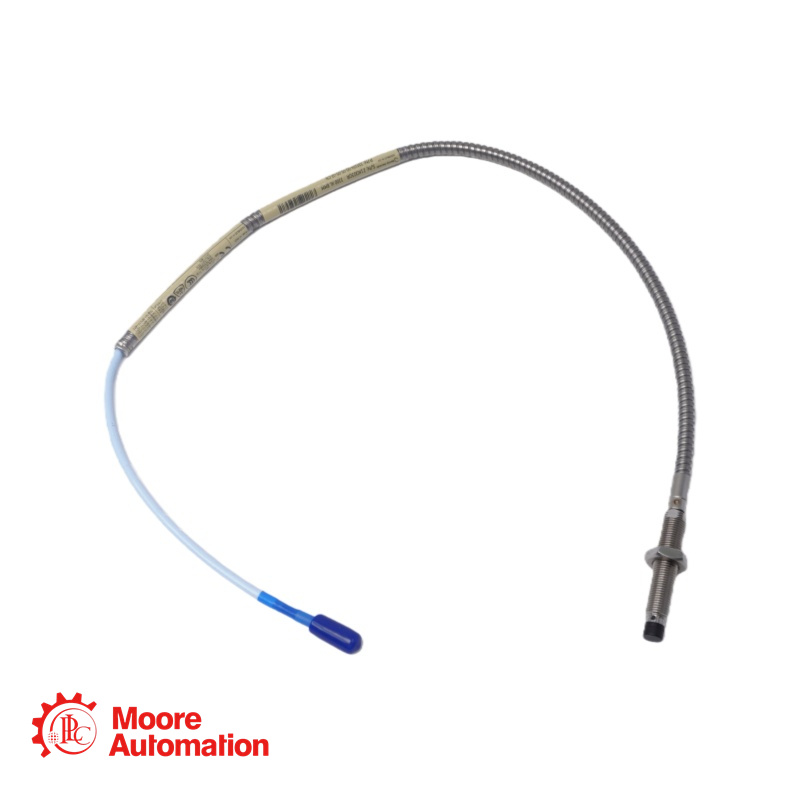

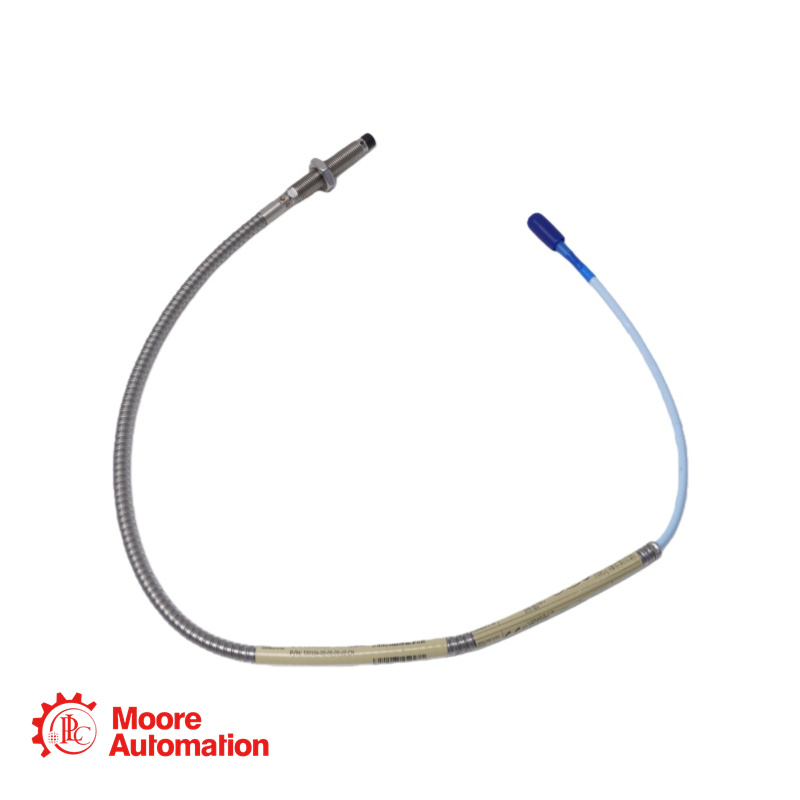

Bently Nevada 330104-00-05-05-01-05 Proximity Probe, Metric

Contact Us

Sales:

Phone/
WhatsApp:

Email:

Address:

Frida

+86 15359408275

sales5@mooreplc.com

Siming District, Xiamen, Fujian, China

Specification

Product Type: 3300 XL 8 mm Proximity Probe
Thread Type: M10 x 1 metric thread
Armor: Yes, with stainless steel armor (AISI 302/304) with FEP outer jacket
Case Type: Standard mount
Unthreaded Length (Option AA): 00 = 0 mm (Must be at least 20 mm less than case length)
Overall Case Length (Option BB): 05 = 50 mm
Total Probe Length (Option CC): 05 = 0.5 meters (1.6 feet) integral cable
Connector and Cable Type (Option DD): 01 = Miniature coaxial ClickLoc connector with connector protector installed, standard FEP-insulated triaxial cable
Agency Approval (Option EE): 05 = CSA, ATEX, and IECEx Approvals for use in hazardous areas
Probe Tip Diameter: 8.0 mm (0.31 in)
Probe Tip Material: Polyphenylene sulfide (PPS)
Probe Case Material: AISI 303 or 304 Stainless Steel (SST)
Cable Specification: 75-ohm triaxial, fluoroethylene propylene (FEP) insulated. Standard (non-ETR) temperature rating.
Cable Armor: Flexible AISI 302 or 304 SST with FEP outer jacket
Connector Material: Gold-plated brass or gold-plated beryllium copper ClickLoc type
Operating Temperature Range (Standard): -52°C to +177°C (-62°F to +350°F)
Tensile Strength (Probe case to cable): 330 N (75 lbf) maximum rated
Electrical Resistance (R_PROBE) for 0.5m cable: 7.45 ± 0.50 Ohms (center conductor to outer conductor)
System Compatibility: Electrically and physically interchangeable with other non-XL 3300 series 5 mm and 8 mm system components. Part of the 3300 XL 8 mm Proximity Transducer System.
Wrench Flats: 8 mm for M10 threads

Product FAQ

Q:We have existing non-XL 3300 series 8 mm probes and cables. Can we use the new 3300 XL Proximitor sensor with them without any system recalibration or performance loss?

A: Yes, the 3300 XL components are fully backward compatible and interchangeable with non-XL 3300 5 mm and 8 mm components. You can connect your existing probes and extension cables to a new 3300 XL Proximitor sensor. However, note that mixing XL and non-XL components limits the overall system performance to the specifications of the older non-XL 3300 system. For optimal performance (meeting API 670 specs, better interchangeability), it is recommended to use a complete 3300 XL system.

Q:Our application involves measuring radial vibration on a steam turbine. The probe mounting location is very tight, and an 8 mm probe body might not fit. Can we use a 5 mm probe with the 3300 XL 8 mm system?

A: Yes, you can use a 3300-series 5 mm probe with the 3300 XL 8 mm Proximitor sensor and cables, as they are electrically compatible. However, critically, the 5 mm probe does not reduce the required side-view clearance or tip-to-tip spacing compared to an 8 mm probe; it only has a smaller diameter body. If your constraint is radial space (side view), you should consider the 3300 NSV (Narrow Side View) Proximity Transducer System.

Q:We need to monitor thrust position, and two probes will be mounted very close to each other axially. What is the minimum tip-to-tip spacing to avoid signal interference (cross-talk)?

A: For axial position measurements, you should maintain a minimum separation of at least 40 mm (1.6 in) between the tips of two separate transducer systems to limit cross-talk to 50 mV or less when each probe is gapped at the center of its linear range. For radial vibration measurements, the minimum spacing is 38 mm (1.5 in).
