ABB TU531 1SAP217200R0001 120/230 V AC Terminal Unit
ABB TU531 1SAP217200R0001 120/230 V AC Terminal Unit
ABB TU531 1SAP217200R0001 120/230 V AC Terminal Unit

ABB TU531 1SAP217200R0001 120/230 V AC Terminal Unit

ABB AC500 / S500 · TERMINAL UNIT

TU531

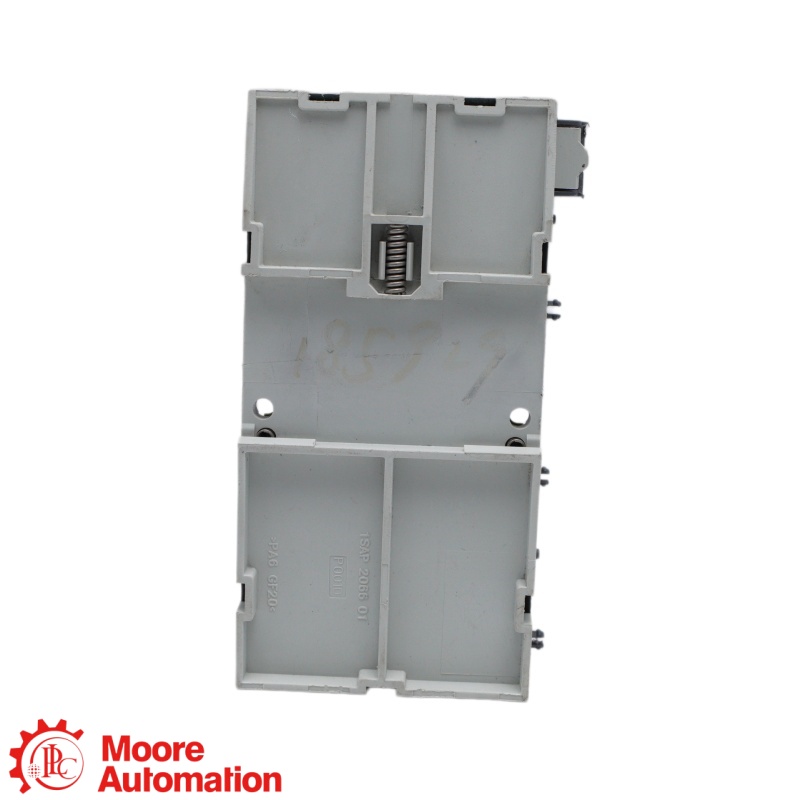

The ABB TU531 is a 40-screw-terminal unit for compatible 120/230 V AC relay I/O modules in ABB AC500/S500 stations; hot swapping is not supported.

VOLTAGE120 / 230 V AC
MODULE TYPERelay I/O modules
TERMINALS40 screw terminals
HOT SWAPNot supported
MANUFACTURERABB
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
Inquire Now
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
ABB ↗ABB AC500 / S500 · TERMINAL UNIT
AC500 / S500 TERMINAL UNIT

TU531

1SAP217200R0001

Terminal unit · 120 / 230 V AC relay modules · 40 screw terminals · hot swap not supported.

PRODUCT ROLE

TU531 provides the field-wiring and module-mounting interface for compatible ABB relay I/O modules operating with 120/230 V AC circuits.

CONFIGURATION NOTE

Confirm order number 1SAP217200R0001, the exact plug-in relay I/O module, 120/230 V AC circuit, 40-terminal wiring, isolation, fuse strategy and non-hot-swap replacement procedure.

👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the TU531 order number is structured

TU
Terminal-unit familyField wiring and module base
531
Model designation120/230 V AC relay use
1SAP217200R0001
ABB order numberComplete article reference
VERIFIED ABB TECHNICAL DATA

Technical Specifications

ABB TU531 ↗
General Information−
BrandABB
ModelTU531
Order number1SAP217200R0001
Product typeTerminal unit
Product familyAC500 / S500
Terminal configuration40 screw terminals
Terminal and Module Compatibility+
Rated circuit class120/230 V AC relay circuits
Compatible module typeSpecified ABB relay I/O modules
Terminal technologyScrew terminals
Terminal count40
Primary functionField wiring and plug-in module interface
Hot-swap capabilityNot supported
Replacement identifierOrder number 1SAP217200R0001
Wiring and System Integration+
Automation platformABB AC500 / S500 I/O
Field circuits120/230 V AC relay wiring
Module interfaceMatch the exact supported relay I/O module
Terminal numberingFollow the ABB TU531 wiring diagram
Isolation planMaintain documented circuit separation
Fuse strategyMatch the connected relay circuit and ABB instructions
Project checkConfirm the plug-in module hardware entry
Installation and Replacement+
Shutdown requirementDe-energize before module or terminal-unit replacement
Hot swapNot supported
Wire identificationLabel all 40 terminal positions
Voltage verificationConfirm absence of 120/230 V AC before work
Mechanical checkInspect terminal torque and connector seating
Compatibility checkMatch order number and plug-in relay module
CommissioningVerify each relay circuit after controlled re-energization
Safety and Compatibility+
Circuit class120/230 V AC
Field interface40 screw terminals
Compatible functionRelay I/O module connection
Replacement conditionPower off and match module, wiring and order number

Source: ABB TU531/TU532 Data Sheet 3ADR010074. Values apply to TU531 order number 1SAP217200R0001 under ABB’s stated operating conditions.

FAQ

Questions Buyers Ask Most

What is TU531 used for?+
TU531 is an ABB AC500/S500 terminal unit that provides 40 screw terminals and the mounting interface for compatible 120/230 V AC relay I/O modules.
Can TU531 be used with standard 24 V DC S500 modules?+
No, not as a general substitute. TU531 is intended for specified 120/230 V AC relay-module applications, so the plug-in module, circuit voltage, terminal assignment and isolation requirements must all match.
What is the difference between TU531 and TU532?+
TU531 belongs to the same ABB terminal-unit documentation as TU532, but the exact terminal arrangement and compatible plug-in modules must be checked by order number and wiring diagram before substitution.
Does replacing the electronic module require rewiring TU531 ?+
The field wiring can remain on TU531 only when the replacement plug-in module is explicitly compatible and the existing terminal assignment, voltage and circuit function are unchanged. Power must be isolated because hot swap is not supported.
What must be checked before replacing TU531?+
Before replacing TU531 confirm order number 1SAP217200R0001, the installed relay I/O module, 120/230 V AC circuit, all 40 terminal assignments, isolation, fusing and shutdown procedure.
What installation condition applies to TU531 ?+
De-energize TU531 and verify absence of AC voltage before installation or replacement. Label every conductor, use the specified tightening procedure and test each relay circuit after controlled re-energization.
What information should be included in a TU531 inquiry?+
TU531 A
CONTACT PRODUCT SPECIALIST

Confirm your TU531 terminal-unit compatibility with Frida

Share the complete order number, plug-in relay module, AC circuit voltage and terminal wiring for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
图
OFFICIAL DATASHEET

ABB TU531 Product Information

Official ABB product and technical data for TU531, order number 1SAP217200R0001.

TU531 Technical Data

The ABB TU531 is a screw-terminal I/O terminal unit for AC500/S500 modules using 120/230 V AC inputs or relay outputs. Confirm order number 1SAP217200R0001, the exact plug-in I/O module, 120/230 V AC or relay circuit, screw-terminal wiring, isolation and hot-swap requirements before replacement.

OFFICIAL DATASHEET ↗

Contact to Get Support

Send the complete model, order number, quantity, hardware revision, installed controller or interface and your technical or purchasing question.

Source: ABB TU531/TU532 Data Sheet 3ADR010074 from ABB official documentation.

ABB SYSTEM RELATIONSHIP

How TU531 fits into the AC500 / S500 I/O system

ABB ↗ is the manufacturer, AC500 / S500 I/O is the platform context, TU531 is the complete model and I/O terminal unit is the product role.

BRAND / PLATFORMABB · AC500 / S500 I/O
→
COMPLETE MODELTU531
→
PRODUCT ROLEI/O terminal unit
VOLTAGE

120 / 230 V AC

OUTPUT TYPE

Relay modules

TERMINALS

40 screw terminals

HOT SWAP

Not supported

INSTALLATION AND PROCUREMENT

What to confirm for TU531

Product Function

provides the field-wiring base and I/O-bus connection for compatible high-voltage AC and relay S500 electronic modules.
