KJ4110X1-EA1 12P1878X032 Power Supply Unit - EMERSON

BRAND/ MANUFACTURER:

PART NUMBER

CONDITION:

COUNTRY OF ORIGIN

EMERSON

KJ4110X1-EA1 12P1878X032

Brand New Factory Sealed - Original

Name：Frida

Email：sales5@mooreplc.com

Whatsapp：+86 15359408275

Welcome to Inquire

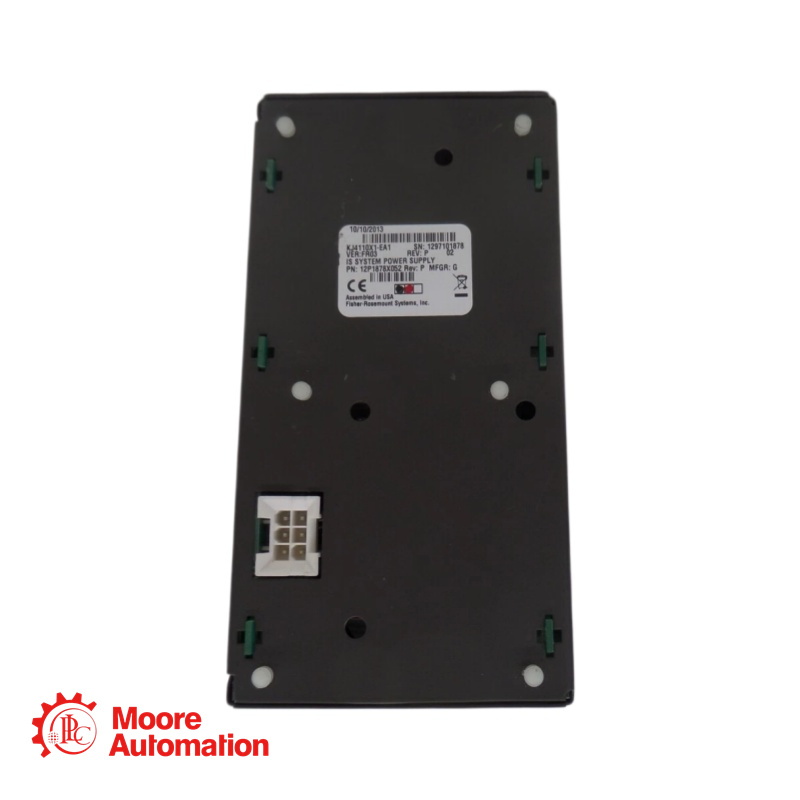

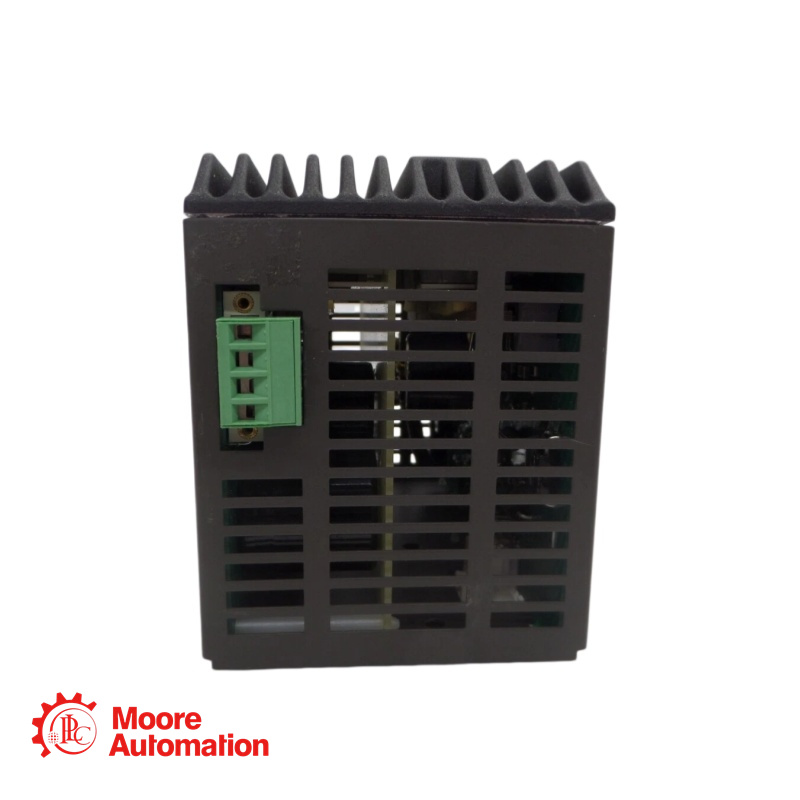

The Emerson DeltaV KJ4110X1-EA1 (Part Number: 12P1878X032) is an intrinsically safe (IS) system power supply unit used in DeltaV Distributed Control Systems. It accepts an input voltage of 18-36 VDC and converts it to a 12 VDC output. This specific module is discontinued by the manufacturer, Emerson.

     Pin connectors CON 1 and CON 3 are strictly restricted to interface with:

o KJ4101X1-BA1 (IS 8-Slot Carrier, via Con1 or Con3).

o KJ4110X1-CA1 (Right-hand IS Extension Module, via Con1 only).

o KJ4110X1-CB1 (Left-hand IS Extension Module, via Con3 only).

o KJ4101X1-BB1 (Local Bus Isolator Carrier, via Con3 only).

· Input Voltage: 18 to 36 VDC (24 VDC nominal standard industrial supply).

· Output Voltage: 12 VDC.

· Maximum Current: 5 A.

· Overload Protection: Integrated overcurrent and overvoltage limits optimized for intrinsic safety containment.

· Maximum Safe Voltage (\(U_{m}\)): Input terminals must not contain or generate voltages exceeding 250 Vrms or 250 VDC under any operational condition.

· Operating Temperature: -40°C to +70°C (-40°F to 158°F).

· Storage Temperature: -40°C to +85°C (-40°F to 185°F).

· Relative Humidity: 5% to 95%, non-condensing.
