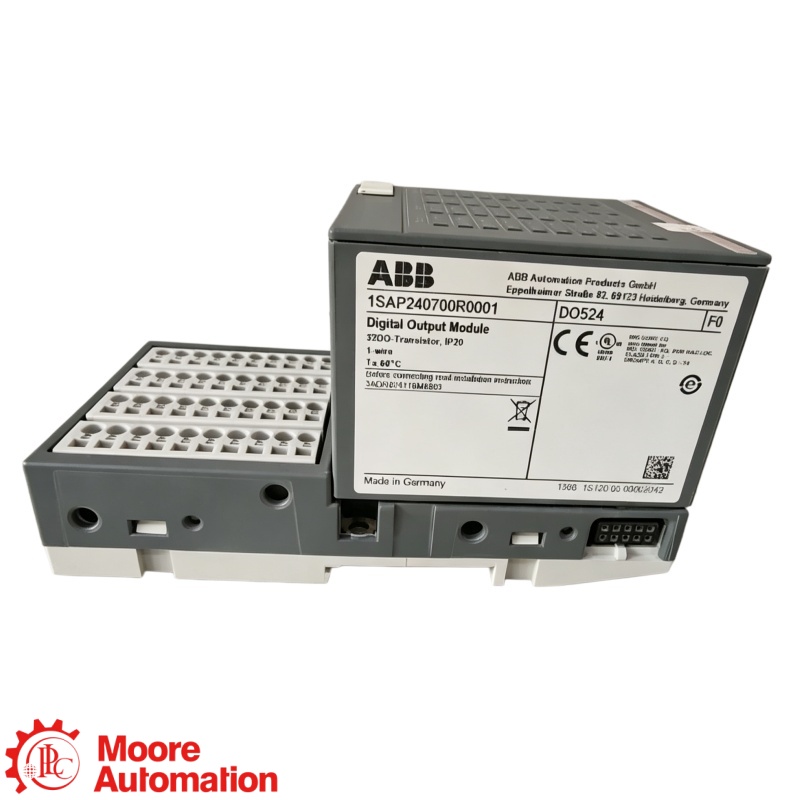

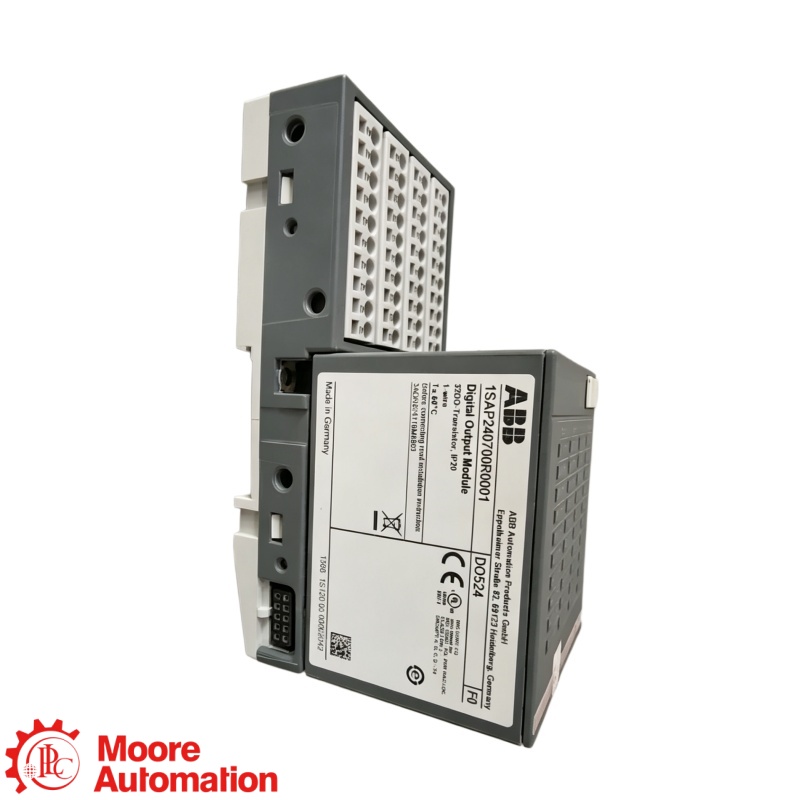

The ABB DO524 is an AC500/S500 digital output module with 32 protected transistor outputs arranged in four groups. Each channel switches a 24 V DC load at up to 0.5 A and the module connects through a TU515 or TU516 terminal unit.
32 transistor outputs · 24 V DC · 0.5 A per channel · four protected output groups.
DO524 provides 32 high-side transistor outputs for switching 24 V DC field loads in an ABB AC500/S500 I/O station. The outputs are organized in four groups and each channel has short-circuit and overload protection.
Confirm order number 1SAP240700R0001, standard or XC version, TU515/TU516 terminal unit, 24 V DC process supply, group wiring, load current and AC500/S500 project compatibility before replacement.
Source: ABB DO524 Data Sheet, ABB AC500 hardware documentation and ABB product page for order number 1SAP240700R0001. Values apply under ABB’s stated operating and derating conditions.
Official ABB product and technical data for DO524, complete order number 1SAP240700R0001, with the manufacturer’s current PDF data sheet.
ABB documents DO524 as an AC500/S500 digital output module with 32 protected transistor outputs in four groups. The outputs switch 24 V DC loads at up to 0.5 A per channel and use a TU515 or TU516 terminal unit.
OFFICIAL DATASHEET ↗Send the complete order number, quantity, standard or XC version, terminal-unit requirement, load information and your technical or purchasing question.
Source: ABB official DO524 Data Sheet 3ADR010052 and ABB product page for order number 1SAP240700R0001.
ABB ↗ is the brand, AC500/S500 is the automation platform, DO524 is the complete module model, digital output module is the product type, and 1SAP240700R0001 is the standard order configuration used with a TU515 or TU516 terminal unit.
Local or remote S500 I/O bus through a compatible AC500 CPU or interface.
TU515 screw connection or TU516 spring connection.
32 transistor outputs in four groups with individual channel protection.
24 V DC with load and mounting limits verified for the installation.
Receives controller output data through the S500 I/O bus.
Switches 32 separate 24 V DC loads at up to 0.5 A per channel.
Four groups provide short-circuit and overload-protected channels.
Uses a TU515 or TU516 terminal unit and a verified 24 V DC process supply.
