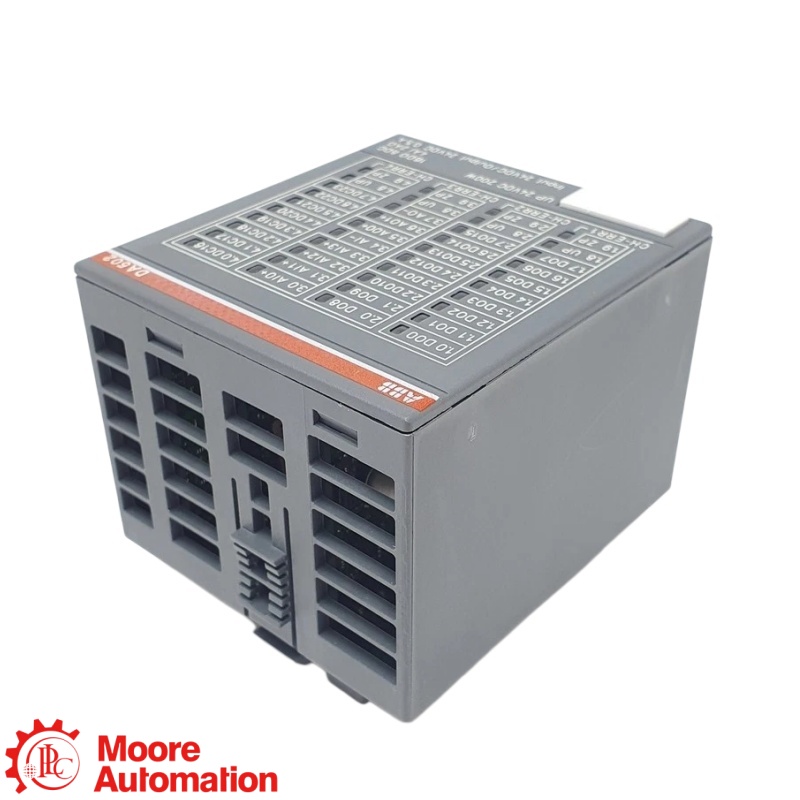

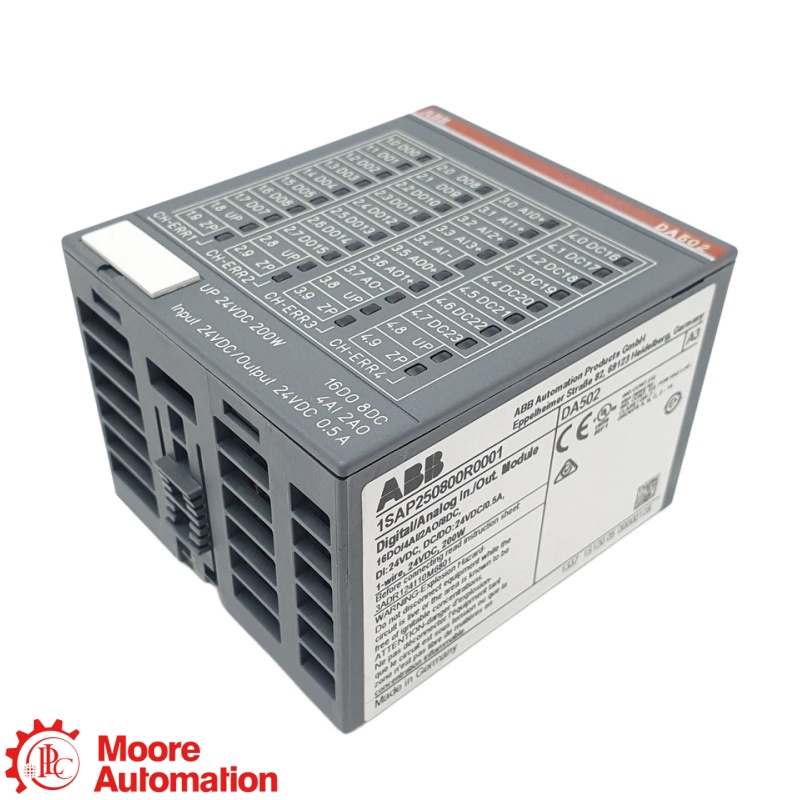

The ABB DA502 is a mixed I/O module with 16 digital outputs, 8 configurable digital input/output channels, 4 analog inputs and 2 analog outputs.
Mixed digital and analog I/O · 16 DO · 8 configurable DI/DO · 4 AI · 2 AO.
DA502 combines digital switching and analog measurement or command channels in one ABB AC500/S500 I/O station.
Confirm order number 1SAP250800R0001, the required DI/DO direction, analog ranges, terminal wiring, process supply, field loads and controller hardware configuration before replacement.
Source: ABB DA502 Data Sheet 3ADR010040. Values apply to order number 1SAP250800R0001 under ABB’s stated operating conditions.
Official ABB product and technical data for DA502, order number 1SAP250800R0001.
The ABB DA502 combines 16 digital outputs, eight configurable digital I/O channels, four analog inputs and two analog outputs in one S500 module. Confirm order number 1SAP250800R0001, standard or XC version, TU515/TU516 terminal unit, 24 V DC process supply, every channel mode and the Automation Builder hardware entry before replacement.
OFFICIAL DATASHEET ↗Send the complete model, order number, quantity, hardware revision, installed controller or interface and your technical or purchasing question.
Source: ABB DA502 Data Sheet 3ADR010040 from ABB official documentation.
ABB ↗ is the manufacturer, AC500 / S500 I/O is the platform context, DA502 is the complete model and Digital/analog I/O module is the product role.
16 DO + 8 DI/DO
4 AI U/I/RTD
2 AO U/I
24 V DC · 0.5 A
concentrates digital switching, configurable digital channels and analog measurement and control in a single AC500/S500 I/O position.
1SAP250800R0001
Confirm order number 1SAP250800R0001, standard or XC version, TU515/TU516 terminal unit, 24 V DC process supply, every channel mode and the Automation Builder hardware entry before replacement.
Provide order number, quantity, revision, installed hardware and application details.
A clear workflow for sourcing, verification, shipment preparation, delivery and product assurance.
Include the complete part number, quantity and delivery destination.
