ABB ↗ABB AC500 · DEVICENET MASTER

AC500 DEVICENET COMMUNICATION MODULE

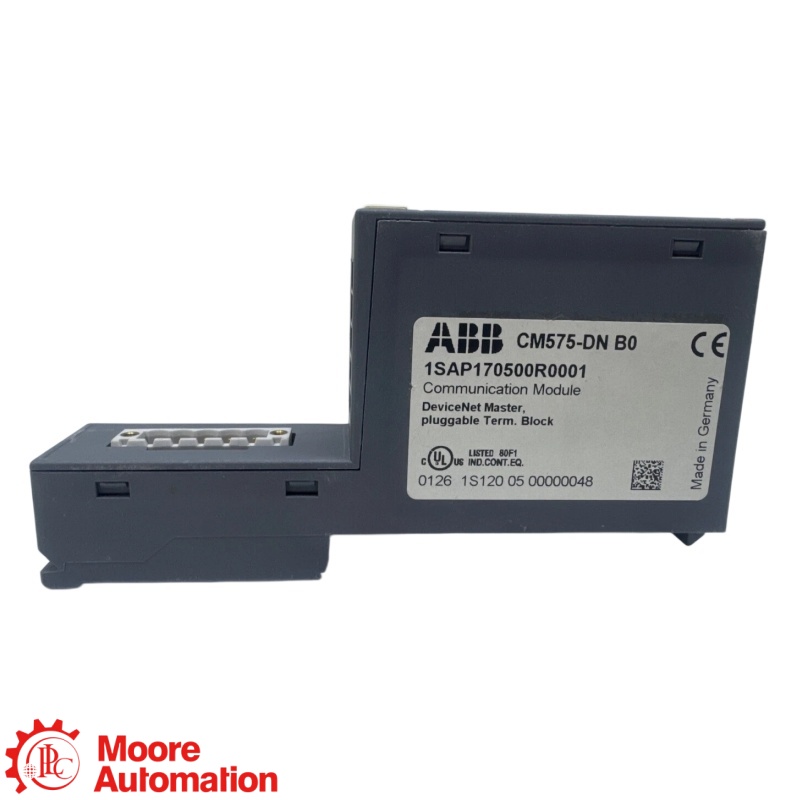

CM575-DN

1SAP170500R0001

DeviceNet master · up to 64 nodes · 125 / 250 / 500 kbit/s · 5-pin COMBICON connector.

PRODUCT ROLE

CM575-DN connects an ABB AC500 controller to DeviceNet slave devices and manages cyclic network communication as the master.

CONFIGURATION NOTE

Confirm order number 1SAP170500R0001, the DeviceNet node plan, baud rate, scanner configuration, 5-pin network wiring, termination and AC500 project before replacement.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the CM575-DN order number is structured

CM575

Communication moduleDeviceNet master

Network variantDeviceNet

1SAP170500R0001

ABB order numberComplete article reference

VERIFIED ABB TECHNICAL DATA

Technical Specifications

ABB CM575-DN ↗

General Information−

BrandABB

ModelCM575-DN

Order number1SAP170500R0001

Product typeDeviceNet master module

Product familyAC500

Supported network sizeUp to 64 nodes

DeviceNet Communication Data+

Network roleDeviceNet master

Maximum network nodes64

Selectable data rates125, 250 or 500 kbit/s

Network connector5-pin COMBICON

Physical networkDeviceNet trunk/drop cabling

Controller interfaceABB AC500 communication module

Replacement identifierOrder number 1SAP170500R0001

Network Configuration+

Master functionScans configured DeviceNet slave devices

Node addressesMust be unique in the network plan

Baud rateAll nodes must use the same selected rate

Scanner listMust match installed slave devices and I/O sizes

EDS dataUse device files matching each slave revision

TerminationInstall at both ends of the DeviceNet trunk

Project backupSave the AC500 and scanner configuration

Power and Installation+

Network wiringUse the documented 5-pin DeviceNet pinout

Shield and groundFollow the DeviceNet installation rules

Trunk powerConfirm network supply and current budget

Cable lengthMust suit the selected DeviceNet data rate

Connector check5-pin COMBICON seated and labeled

Pre-energization checkPolarity, shield, termination and node addresses

CommissioningVerify every slave enters the expected state

Compatibility and Diagnostics+

Controller compatibilitySupported ABB AC500 CPU and firmware required

Network compatibilityDeviceNet slaves with matching EDS and I/O data

Diagnostic basisModule and network status plus AC500 diagnostics

Replacement conditionProject, baud rate, node plan and wiring must be restored

Source: ABB AC500 Communication Interfaces Manual 2CDC125017M0202 for CM575-DN order number 1SAP170500R0001.

FAQ

Questions Buyers Ask Most

What is CM575-DN used for?+

CM575-DN is an ABB AC500 DeviceNet master module that exchanges cyclic I/O data with a configured network of slave devices. It supports up to 64 nodes at one common selected baud rate.

Can CM575-DN communicate with EtherNet/IP devices?+

No. CM575-DN is a DeviceNet master and uses DeviceNet cabling, addressing and scanner configuration. EtherNet/IP devices require a compatible Ethernet communication interface.

Which data rates does CM575-DN support?+

CM575-DN supports 125, 250 and 500 kbit/s. Every DeviceNet node must use the same rate, and the permitted cable length depends on that selection.

How does CM575-DN differ from CM576-PNIO?+

Unlike the PROFINET-oriented CM576-PNIO designation, CM575-DN is documented as a DeviceNet master. The network protocol, connector, project data and compatible field devices are therefore different.

What must be checked before replacing CM575-DN?+

Before replacing CM575-DN confirm order number 1SAP170500R0001, AC500 CPU and firmware support, node addresses, baud rate, scanner list, EDS revisions, network power and termination.

What installation condition applies to CM575-DN ?+

Install CM575-DN with the documented 5-pin DeviceNet wiring, shield and two end terminators. Verify cable length, network power and unique node addresses before enabling the master.

What information should be included in a CM575-DN inquiry?+

CM575-DN A

CONTACT PRODUCT SPECIALIST

Confirm your CM575-DN network configuration with Frida

Share the complete order number, AC500 CPU, node plan, baud rate, scanner list and DeviceNet wiring for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

✉ sales5@mooreplc.com ◉ +86 153 5940 8275
