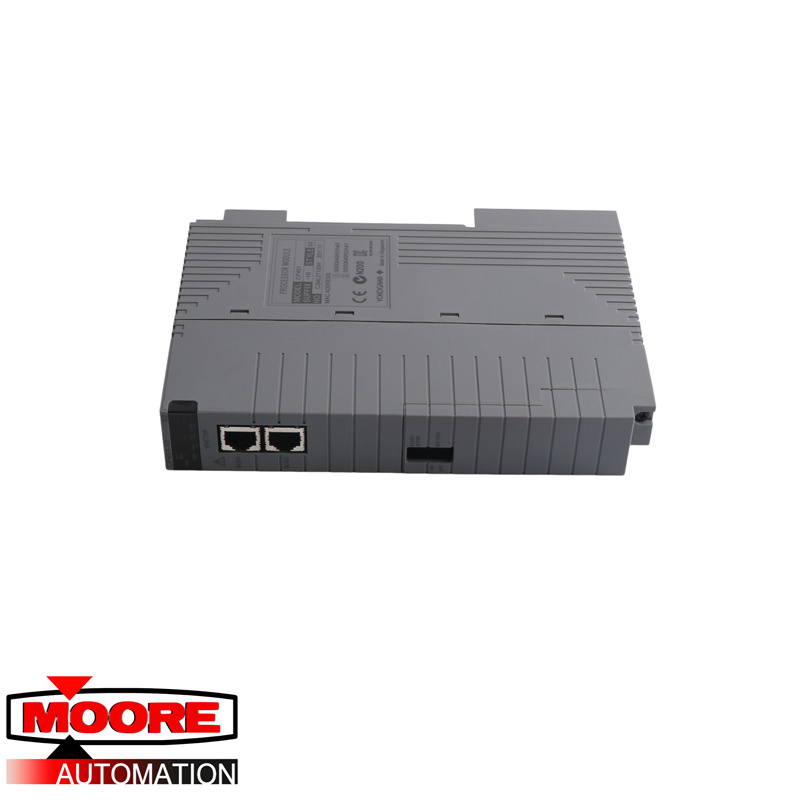

YOKOGAWA | CP451-10 S2 | Processor Module

Product Description:

The module is programmable, so the functionality depends on the loaded application program. Various standard application programs are available and specified in separate documents. The loaded program and its version can be read from the LCD front panel display and from the labels located on both CPUs. For a compact FCS for FIO, a duplexed (dual-redundant) FCS is provided. For this FCS, the processor module, V net coupler, and power module are all dual-redundant. If an FIO node unit is added, install an ESB-bus coupler module or an ER bus interface module. Dual-redundant use in either module is also possible. (For a duplexed FCS, the ESB bus interface modules need to be dual-redundant.) Even if one side of the module becomes defective, the control right can be switched without any interruption in control.

In the
case of single configuration, processor module is mounted in a slot on the left side and dummy cover is mounted on the right side. Power supply modules are always used in dual-redundant configuration. When connecting a safety node unit, ESB bus coupler modules are used in dualredundant configuration.
