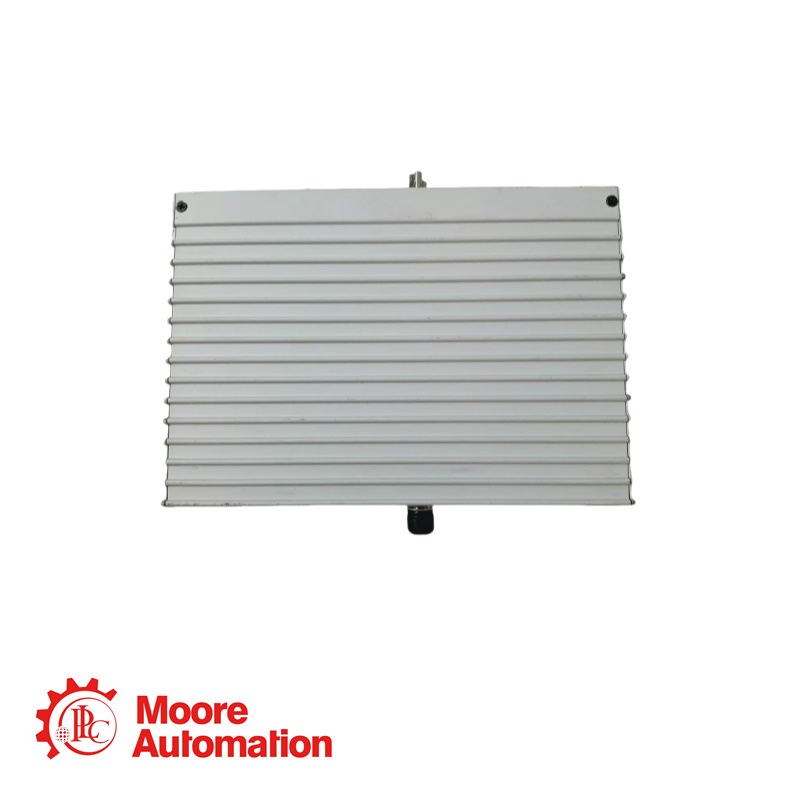

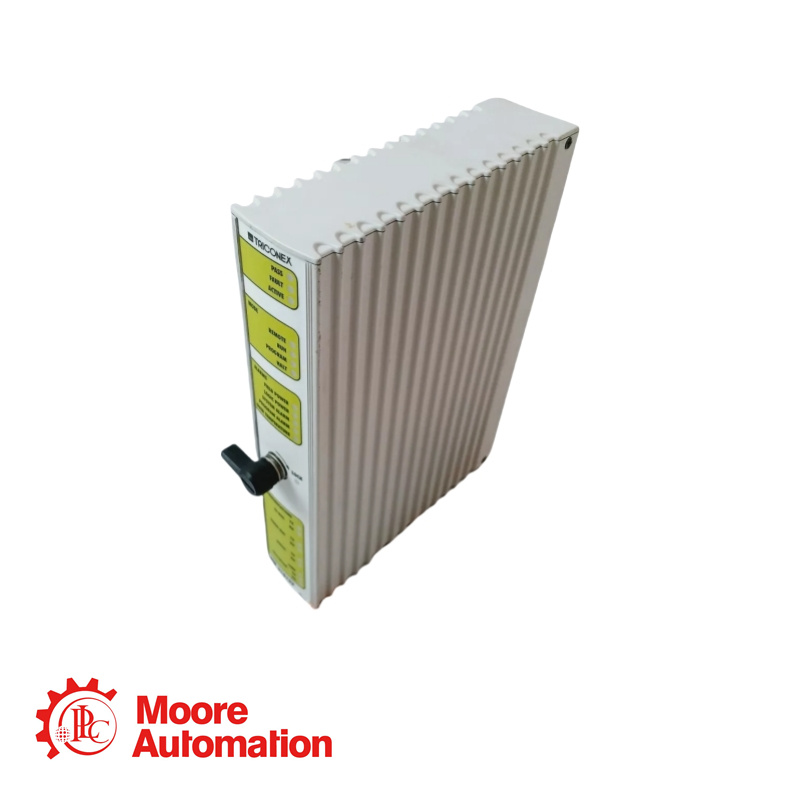

TRICONEX DI 3301S2 Digital input module

 Contact: ChloeEmail: plc@mvme.cnMobile(WhatsApp):  +86 18030170117

Describtion

TRICONEX DI 3301S2 Digital Input module DI3301S2 24V.The TRICONEX DI 3301S2, identifled as the 3301 Digital Input Module, is a component of Schneider Electric's EcoStruxure Triconex Safety Systems. This module is designed for use in safety-critical applications, providing digital inputs with a nominal voltage of 24VDC.

This module is capable of accepting a wide range of input types, including dry contact and active signals. It is engineered to operate in harsh industrial environments and offers robust protection features to safeguard against voltage surges and other electrical anomalies.

Information

Number of points: 32 commoned (all 32 points share a common connection)

Nominal input voltage: 24VDC

Operational voltage range: 15-30 VDC

Absolute maximum input voltage: 33 VDC

Input delay: Less than 10 ms for transitions from On to Off or Off to On

Input impedance: Greater than 30 kΩ without baseplate, 3 kΩ with baseplate

ADC scan time: Less than 1 ms for scanning all 32 points
