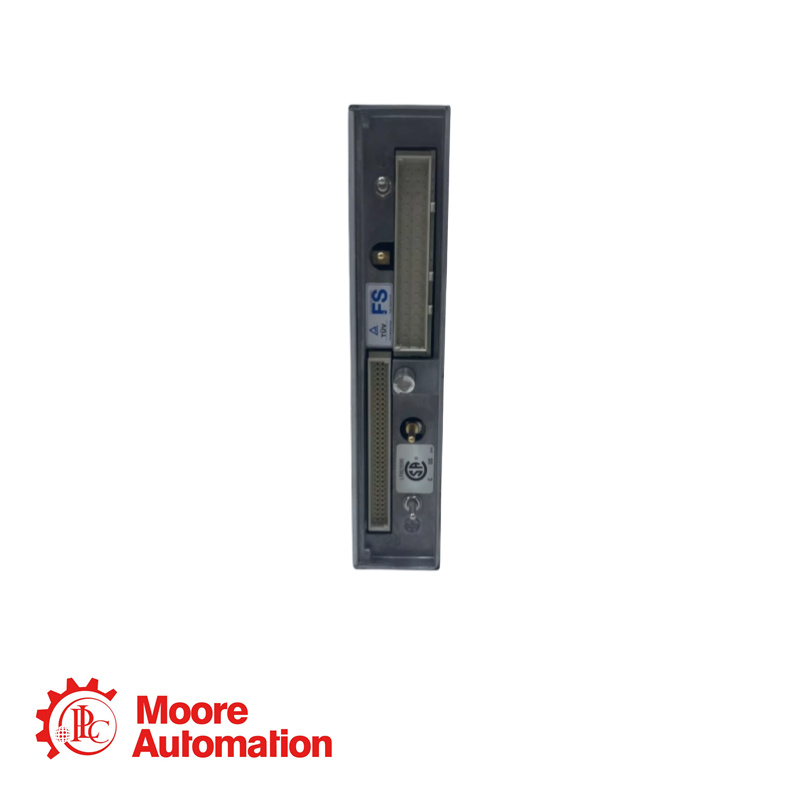

TRICONEX AO 3481S2 Analog Output Module

Contact: John Yang Email: sales3@askplc.comMobile(WhatsApp):  86-18150117685

Describtion

TRICONEX AO 3481S2 Analog Output Module | TRICON3481S2 | AO3481S2.The TRICONEX AO 3481S2 is an analog output module designed for use in Tri-GP (TriGuard Plus) safety systems manufactured by Invensys. These systems are typically employed in hazardous environments to monitor and control processes safely. The AO 3481S2 module is specifically designed to provide analog outputs for interfacing with external devices such as indicators, recorders, or other control systems.

Information

Output Current Range: The module provides a 4- -20 mA output

Accuracy: The output accuracy is less than 0.25% of the full scale range (FSR) within the operating

temperature range:0°C to 70°C.

Resolution: With a resolution of 12 bits

Power Requirements: The nominal voltage is 24 VDC, but it can operate up to 32 VDC

Diagnostic Capabilities: The module includes forced-switch diagnostics (FSD)

Switch Time on Leg Failure: The module has a switch time of 1 ms, typical, and up to 3 ms,maximum, on leg failure.
