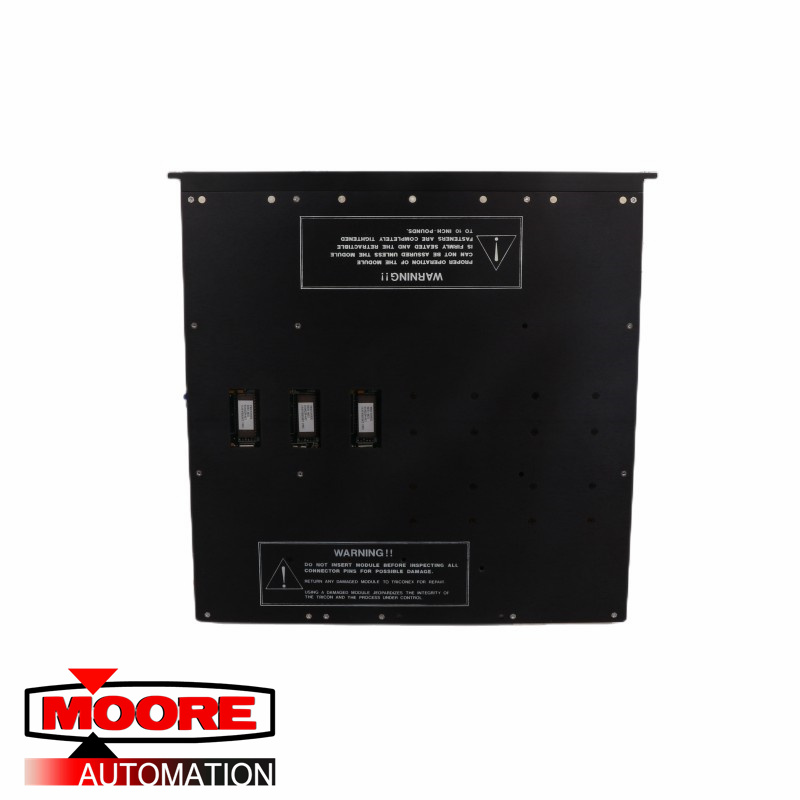

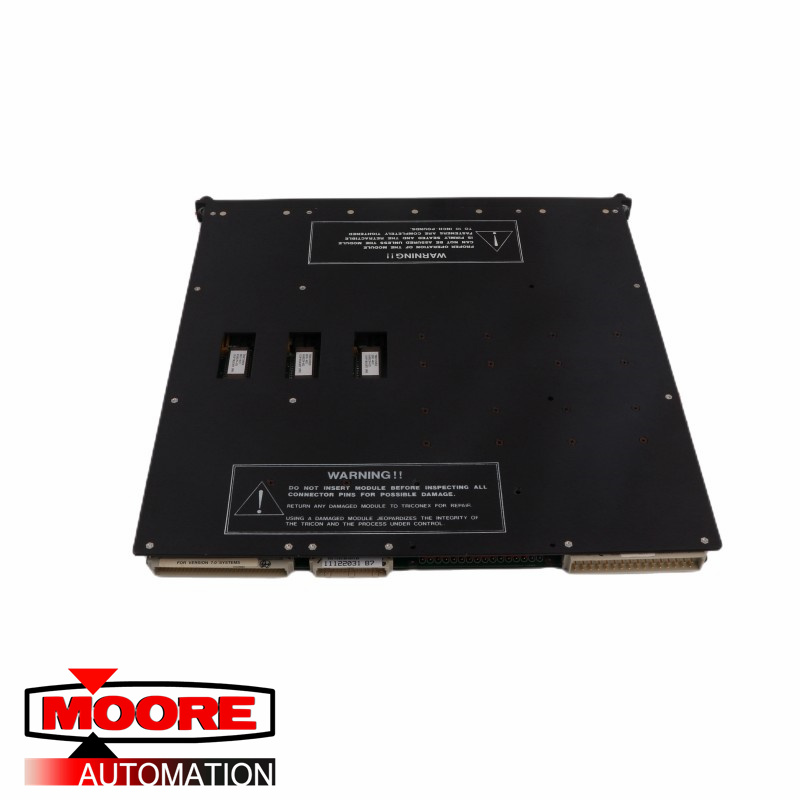

TRICONEX 3604E Digital Output Module

General Information：

-------------------------------------------------------------

ABOUT 3604E :

TRICONEX  3604E  Digital Output Module
A TMR digital output (DO) module receives output signals from the main processors on each of three channels. Each set of three signals is then voted by special quadruplicated output circuitry on the module. The circuitry produces one voted output signal and passes it to the field termination. The quadruplicated voter circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability.

Each TMR digital output module has a voltage-loopback circuit which verifies the operation of each output switch independently of the presence of a load and determines whether latent faults All TMR digital output modules support hot-spare capability, and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis. Digital outputs are designed to source the current to field devices, so field power must be wired to each output point on the field termination. exist. Failure of the detected field voltage to match the commanded state of the output point activates the LOAD/FUSE alarm indicator.

ABOUT Moore Automation Limited

Moore Automation Limited is a professional manufacturer of global famous brand modules and spare parts. Our main products are: distributed control system (DCS), programmable logic controller (PLC), large servo control system. The spare parts we sell are guaranteed for one year and are rigorously tested and certified. We are now a global manufacturer of industrial automation spare parts and components.

1.Allen-Bradley(AB) Series 2.Schneider(Schneider Electric) Series 3.General electric(General Electric) Series 4.Westinghouse Series 5.SIEMENS Series 6.Bosch Rexroth:Indramat, I/O module,PLC controller, Driver Module 7.Westinghouse: OVATION System, WDPF System, MAX1000 system spare parts 8.Siemens:Siemens MOORE, Siemens Simatic C1, Siemens CNC system 9.Invensys Triconex: Redundant fault-tolerant control system, Most modern fault-tolerant controller based on Triple Modular Redundancy (TMR) architecture.

RFQ--please contact sales manager John Yang

Mobile：+86 18150117685 WhatsApp: +86 18150117685
