/Siemens A5E00714561 FS300R12KE3 Converter Driver Board

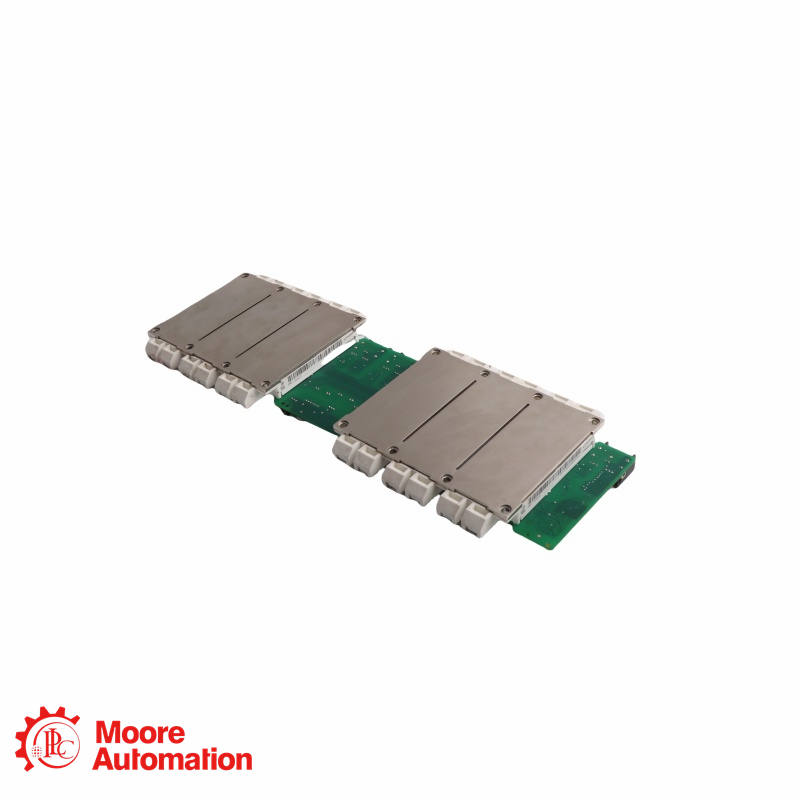

Siemens A5E00714561 FS300R12KE3 Converter Driver Board
Siemens A5E00714561 FS300R12KE3 Converter Driver Board
Siemens A5E00714561 FS300R12KE3 Converter Driver Board

Siemens A5E00714561 FS300R12KE3 Converter Driver Board


  • Brand :

    Siemens
  • Part Number :

    A5E00714561 FS300R12KE3
  • Weight :

    0.04 kg
  • Dimension :

    1.5x4x5.8cm
  • Country of Origin :

    Germany
  • HS Code :

    8537101190
  • Description :

    Converter Driver Board

Welcome to contact the Sales manager

Sales manager : Chloe

Email:plc@mvme.cn

Whatsapp: +86 18030170117


Basic Information

Function: Gate-driver and protection PCB for two IGBT positions (half-bridge)
Typical use: SINAMICS S120/G120/G150 book-size/power-modules, 400…690 V AC drives
Interface: 15-way flat-cable (PWM, fault, temperature, DC-bus sensing)
Isolation: 2.5 kV RMS basic insulation (class 1, IEC 61140)
Supply: +15 V / –7.5 V gate drive, ≤ 2.7 µC gate charge per switch
On-board NTC: 5 kΩ @ 25 °C, B25/50 = 3375 K
Mounting: M5 screws, 3.0–6.0 Nm; PCB dimensions & weight follow EconoPACK+ outline
Operating temperature: –40 … +125 °C (Tvj)

IGBT power stage (Infineon FS300R12KE3)


Product details

The Siemens A5E00714561 FS300R12KE3 is a converter driver board, specifically a SINAMICS POWER BLOCK REPAIR PART IGD2/R4 MODULE, associated with Siemens AC inverter drives. It features an IGBT module, FS300R12KE3, and is designed for use in SINAMICS S120, G120, and G150 drive systems.
