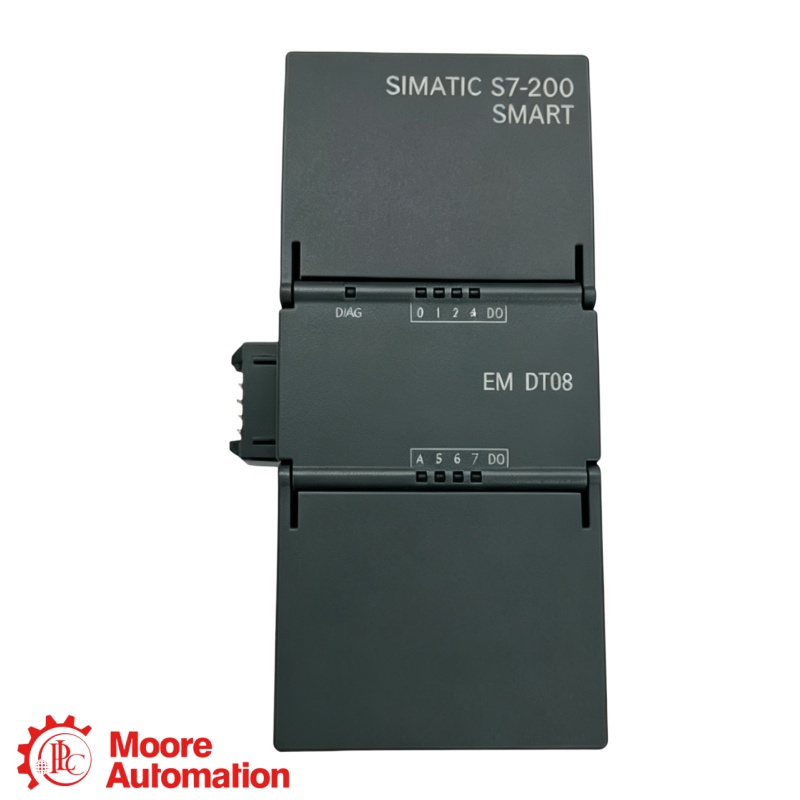

/Siemens 6ES7288-2DT08-0AA0 SIMATIC S7-200 SMART EM DT08 Transistor Output Module

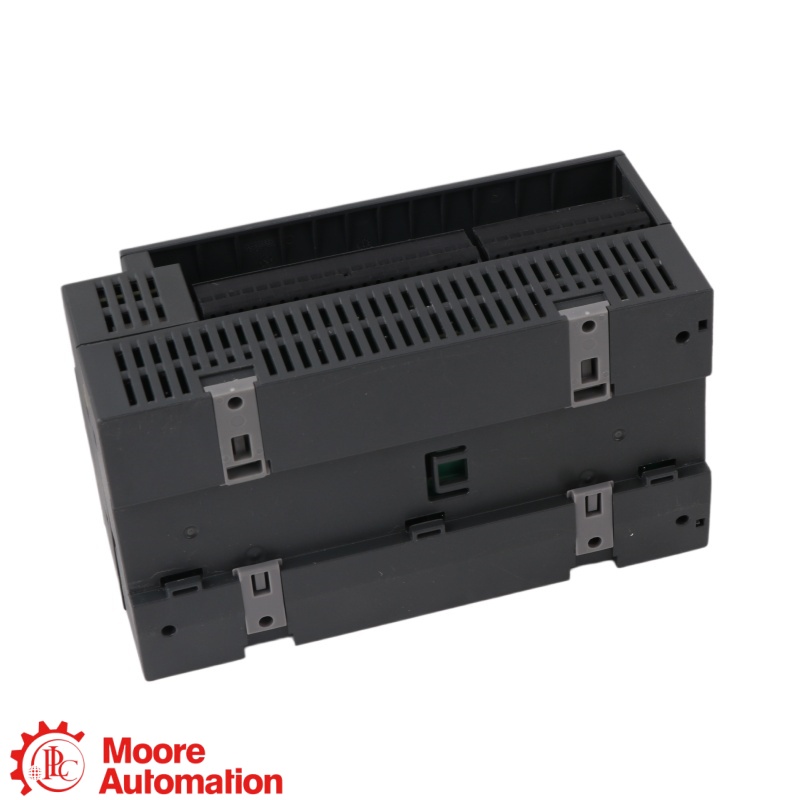

Siemens 6ES7288-2DT08-0AA0 SIMATIC S7-200 SMART EM DT08 Transistor Output Module

SIMATIC S7-200 SMART · EM DT08

6ES7288-2DT08-0AA0

The 6ES7288-2DT08-0AA0 is a Siemens SIMATIC S7-200 SMART EM DT08 expansion module with eight 24 V DC sourcing transistor outputs for fast solid-state load control.

OUTPUTS8 DQ

OUTPUT TYPEMOSFET Sourcing

OUTPUT VOLTAGE20.4–28.8 V DC

POWER1.5 W

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● EXPANSION MODULE

SIMATIC S7-200 SMART PLC

6ES7288-2DT08-0AA0

EM DT08

Digital Transistor Output Expansion Module

MEASUREMENT ROLE

6ES7288-2DT08-0AA0 is a SIMATIC S7-200 SMART EM DT08 expansion module providing eight 24 V DC sourcing MOSFET outputs for valves, lamps and interface relays.

CONFIGURATION NOTE

For 6ES7288-2DT08-0AA0, Siemens official data specifies 8 sourcing transistor outputs, 0.75 A per point, 3 A per common, 120 mA SM-bus current and approximately 1.5 W power consumption.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the order number identifies this expansion module

6ES7288

Product familySIMATIC S7-200
SMART

2DT08

Module code

0AA0

Order suffix

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

SIMATIC S7-200 SMART ↗

S7-200 SMART EXPANSION MODULES

Engineering data at a glance

Click “+” to expand more specifications.

LENGTH4.5 cm

WIDTH10 cm

HEIGHT8.1 cm

WEIGHT0.147 kg

Official Siemens product data.

Official product verification Verify the complete order number 6ES7288-2DT08-0AA0and electrical version against the current official Siemens datasheet before ordering.

General Information −

BrandSiemens

Part number6ES7288-2DT08-0AA0

Product typeDigital Transistor Output Expansion Module

Product familySIMATIC S7-200 SMART

Mounting styleDIN rail

Configuration softwareSTEP 7 Micro/WIN SMART

Digital Transistor Output Specifications ＋

Output voltage8 sourcing outputs

Output voltage20.4 to 28.8 V DC

Rated current0.75 A per point

Electrical and Installation ＋

SM bus current120 mA

Maximum per common3 A

Leakage current10 µA per point

Power consumption1.5 W

Lamp load / inrush5 W DC / 8 A for 100 ms

Environment and Certification ＋

Install and wire the module according to the Siemens IM60 System Manual, observing 24 V DC sourcing polarity, the 3 A common-group limit, inductive-load suppression and cabinet conditions.

Source: Siemens official SIMATIC ET 200 SMART IM60 System Manual for 6ES7288-2DT08-0AA0.

FAQ

Questions Buyers Ask Most

What type of outputs does 6ES7288-2DT08-0AA0 provide?＋

6ES7288-2DT08-0AA0 provides 8 sourcing MOSFET digital outputs for 24 V DC loads. It is a transistor module, so it does not provide voltage-free relay contacts.

What supply voltage is required for 6ES7288-2DT08-0AA0 field loads?＋

6ES7288-2DT08-0AA0 output circuits operate from an external supply within 20.4–28.8 V DC. Check polarity carefully because the outputs are sourcing type.

How much current can each 6ES7288-2DT08-0AA0 channel deliver?＋

6ES7288-2DT08-0AA0 is rated up to 0.75 A per output point, with a maximum of 3 A per common group. Both limits must be satisfied simultaneously.

Can 6ES7288-2DT08-0AA0 handle lamp or coil inrush current?＋

6ES7288-2DT08-0AA0 supports a specified inrush capability up to 8 A for 100 ms and a 5 W DC lamp load. Confirm the real device inrush curve before direct connection.

How should inductive loads be protected when using 6ES7288-2DT08-0AA0?＋

When 6ES7288-2DT08-0AA0 drives solenoid valves or relay coils, install a correctly oriented flyback diode or manufacturer-approved suppression at the load to limit turn-off voltage and electrical noise.

What panel allowance is needed for 6ES7288-2DT08-0AA0?＋

6ES7288-2DT08-0AA0 measures 45 × 100 × 81 mm, weighs about 147 g, consumes approximately 1.5 W and draws 120 mA from the SM bus.

What information should be supplied when ordering 6ES7288-2DT08-0AA0?＋

For 6ES7288-2DT08-0AA0, provide the CPU order number, load voltage, running and inrush current per channel, common-group plan, inductive suppression method, quantity and delivery destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
6ES7288-2DT08-0AA0

Official Siemens documentation for the SIMATIC S7-200 SMART EM DT08.

SIMATIC S7-200 SMART EM DT08

Siemens official IM60 system-manual PDF for 6ES7288-2DT08-0AA0, including transistor-output, voltage, current, inrush, current-consumption, dimension and wiring data.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

S7-200 SMART SYSTEM RELATIONSHIP

How EM DT08 Extends a SIMATIC S7-200 SMART System

Siemens is the brand; SIMATIC S7-200 SMART is the PLC family; and 6ES7288-2DT08-0AA0 is the EM DT08 high-speed transistor-output expansion module connected through the SM bus.

Siemens · BRAND

SIMATIC S7-200 SMARTPLC FAMILY · AUTOMATION SYSTEM

EXPANSION ROLE

EM DT08

EM DT08 adds eight solid-state 24 V DC sourcing outputs for repeatable switching without relay contacts.

INPUT / OUTPUT CIRCUITS

24 V DC FIELD SIGNALS

Eight MOSFET outputs deliver up to 0.75 A per point within the 3 A per-common limit.

INSTALLATION DATA

45 × 100 × 81 mm

The 45 × 100 × 81 mm module draws 120 mA from the SM bus and requires a properly sized external 24 V DC load supply.

System relationship: verify CPU support, available expansion position, sourcing-load polarity, per-point current, common-group current and suppression before wiring.
