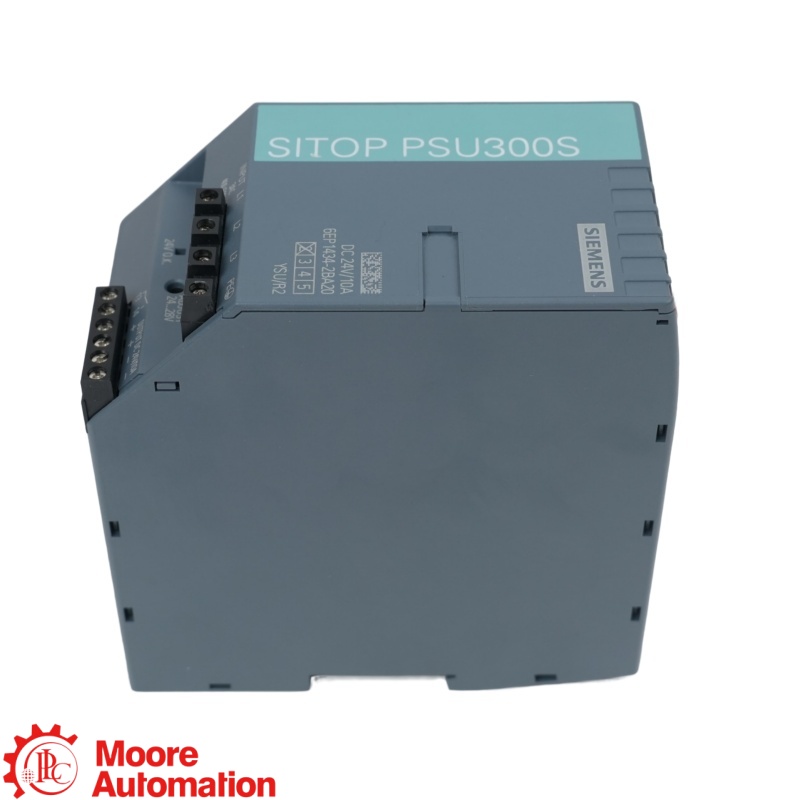

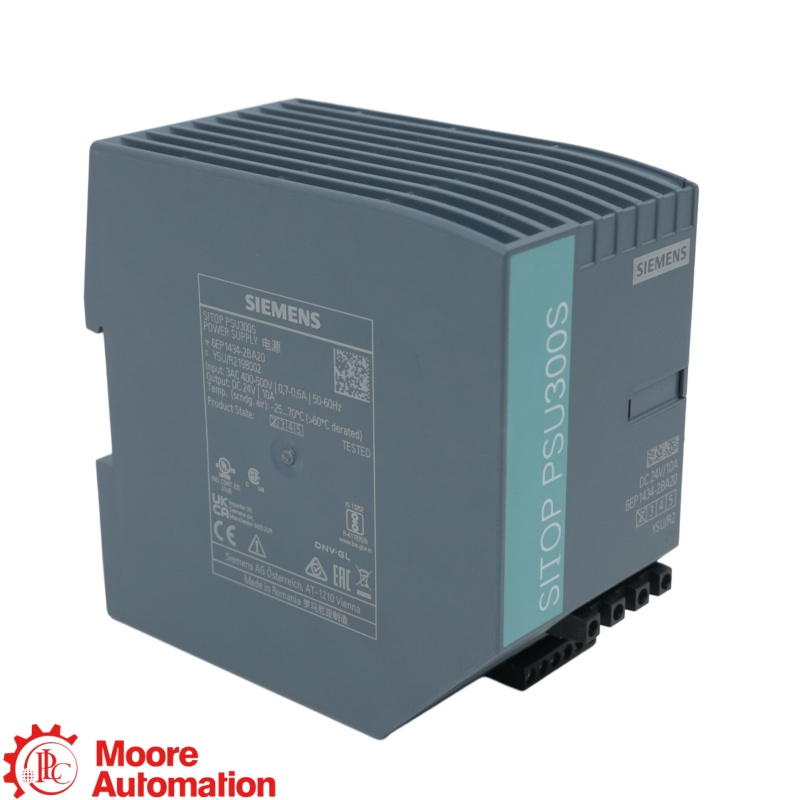

Siemens 6EP1434-2BA20 SITOP PSU300S 24 V DC 10 A Power Supply

Siemens SITOP PSU300S · SITOP PSU300S 24 V / 10 A

6EP1434-2BA20

The 6EP1434-2BA20 is a Siemens SITOP PSU300S stabilized three-phase power supply with 400-500 V 3 AC input and 24 V DC, 10 A, 240 W output.

INPUT VOLTAGE400-500 V 3 AC

OUTPUT VOLTAGE24 V DC

OUTPUT CURRENT10 A

RATED POWER240 W

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● STABILIZED POWER SUPPLY

Siemens SITOP PSU300S

6EP1434-2BA20

400-500 V 3 AC · 24 V DC

10 A · 240 W OUTPUT

MODULE ROLE

6EP1434-2BA20 is a Siemens SITOP PSU300S stabilized three-phase power supply that converts 400-500 V 3 AC input to regulated 24 V DC at 10 A for compatible industrial control loads.

CONFIGURATION NOTE

For 6EP1434-2BA20, Siemens specifies 400-500 V 3 AC nominal input with a 340-550 V 3 AC operating range, 24 V DC output, 10 A rated current, 240 W output power, 47–63 Hz input frequency and operation from -25 to +70 °C with temperature derating.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the SITOP PSU300S reference is identified

SITOP PSU300S

Model

6EP1434-2BA20

Order number

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens SITOP PSU300S ↗

SITOP PSU300S 24 V / 10 A STABILIZED POWER SUPPLY

Engineering data at a glance

Click “+” to expand more specifications.

INPUT VOLTAGE400-500 V 3 AC

OUTPUT VOLTAGE24 V DC

OUTPUT CURRENT10 A

MOUNTINGDIN RAIL

Official Siemens product data.

Official product verification Verify the complete order number 6EP1434-2BA20and its 400-500 V 3 AC input, 24 V DC output, 10 A rating, 240 W output power, mounting clearances and protective-device requirements against the current official Siemens datasheet before ordering.

General Information −

BrandSiemens

Part number6EP1434-2BA20

Product typeSITOP PSU300S 24 V / 10 A Stabilized Power Supply, 24 V DC / 10 A

Product familySiemens SITOP PSU300S

Mounting styleDIN rail

Engineering softwareNo engineering software required

Input and Output Ratings ＋

Input voltage400-500 V 3 AC nominal; 340-550 V 3 AC operating range

Output voltage24 V DC stabilized

Rated output10 A; 240 W

Module and Ordering Data ＋

Input frequency47–63 Hz

Product family3-phase, 24 V DC power supplies for SITOP PSU300S

Article statusPM300: Active Product

Packaging quantity1 piece

Lifecycle statusActive product

Environment and Certification ＋

Packaging dimensions and net weight: 13.00 × 13.50 × 7.50 cm; 0.700 kg.

Source: Siemens official SiePortal product data and technical datasheet for 6EP1434-2BA20.

FAQ

Questions Buyers Ask Most

What is 6EP1434-2BA20 used for?＋

6EP1434-2BA20 is a Siemens SITOP PSU300S stabilized three-phase power supply that converts a 400-500 V 3 AC source into regulated 24 V DC at 10 A for compatible industrial control, instrumentation and automation loads.

Can 6EP1434-2BA20 be connected to a single-phase AC supply?＋

6EP1434-2BA20 is configured for a three-phase 400-500 V AC nominal supply, with a published 340-550 V operating range. It should not be treated as a single-phase power supply; the incoming phases, protective earth and upstream protection must match Siemens installation requirements.

What output and overload capability does 6EP1434-2BA20 provide?＋

6EP1434-2BA20 provides a regulated 24 V DC output rated at 10 A and 240 W. Siemens documents 150% overload capability for up to five seconds per minute, while continuous loading and temperature derating must remain within the official technical data.

Can 6EP1434-2BA20 replace 6EP1434-2BA10?＋

6EP1434-2BA20 is identified by Siemens as the successor product for 6EP1434-2BA10. Before replacement, confirm the complete article number, input wiring, dimensions, terminal arrangement, approvals and cabinet conditions rather than assuming a drop-in substitution.

Can two 6EP1434-2BA20 power supplies be connected in parallel?＋

6EP1434-2BA20 supports parallel connection of two units for increased power according to Siemens technical data. Both units must have compatible output settings, wiring, protection, thermal conditions and load-sharing arrangements before they are commissioned together.

What installation conditions must be checked for 6EP1434-2BA20?＋

6EP1434-2BA20 requires a suitable three-phase supply, protective earth, IP20 cabinet protection, correct DIN-rail mounting and adequate ventilation. Its -25 to +70 °C operating range includes output-current derating at elevated temperature, so enclosure temperature and clearance must be verified.

What information should be included when requesting a quote for 6EP1434-2BA20?＋

6EP1434-2BA20 should be quoted with the complete order number, quantity, destination, three-phase mains voltage, total 24 V DC load, cabinet temperature, mounting space and any required approvals so compatibility and availability can be checked independently.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
6EP1434-2BA20

Official Siemens documentation for the Siemens SITOP PSU300S 24 V / 10 A stabilized power supply.

Siemens SITOP PSU300S 24 V / 10 A

Siemens technical datasheet for 6EP1434-2BA20, including AC input ranges, 24 V DC output, 10 A rated current, 240 W output power, operating temperature, dimensions and net weight.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

SITOP PSU300S POWER SUPPLY RELATIONSHIP

How 6EP1434-2BA20 Fits the SITOP PSU300S Power-Supply Family

Siemens is the brand; SITOP PSU300S is the product family; and 6EP1434-2BA20 is the stabilized three-phase 24 V DC / 10 A power supply for compatible industrial control equipment.

Siemens · BRAND

Siemens SITOP PSU300SPOWER SUPPLY FAMILY · INDUSTRIAL DC POWER

POWER MODULE

SITOP PSU300S 24 V / 10 A · 24 V DC

SITOP PSU300S 24 V / 10 A converts 400-500 V 3 AC mains power into regulated 24 V DC at 10 A for compatible industrial control and automation loads.

INPUT SUPPLY

400-500 V 3 AC

The nominal input is 400–500 V 3 AC at 47–63 Hz, with a published 340–550 V operating range; protect the mains circuit according to Siemens data.

OUTPUT SUPPLY

24 V DC · 10 A

The stabilized output supplies 24 V DC at 10 A with 240 W rated power for compatible control-panel loads.

System relationship: verify the input voltage range, total DC load, cabinet temperature, DIN-rail clearances and upstream protective device.

APPLICATION AREAS

Application mind map for 6EP1434-2BA20

SITOP PSU300S Cabinet PowerSupply regulated 24 V DC power to compatible PLC, I/O and control-panel loads

Stabilized 24 V DCPower sensors, interface devices and control loads within the 10 A continuous rating

APPLICATION CENTER 6EP1434-2BA20 Stabilized 24 V DC power supply

Control Cabinet SupplyConvert 400-500 V 3 AC mains input into protected 24 V DC control power

DIN-Rail InstallationMount the 70 mm wide power supply on a compatible DIN rail with the required clearances
