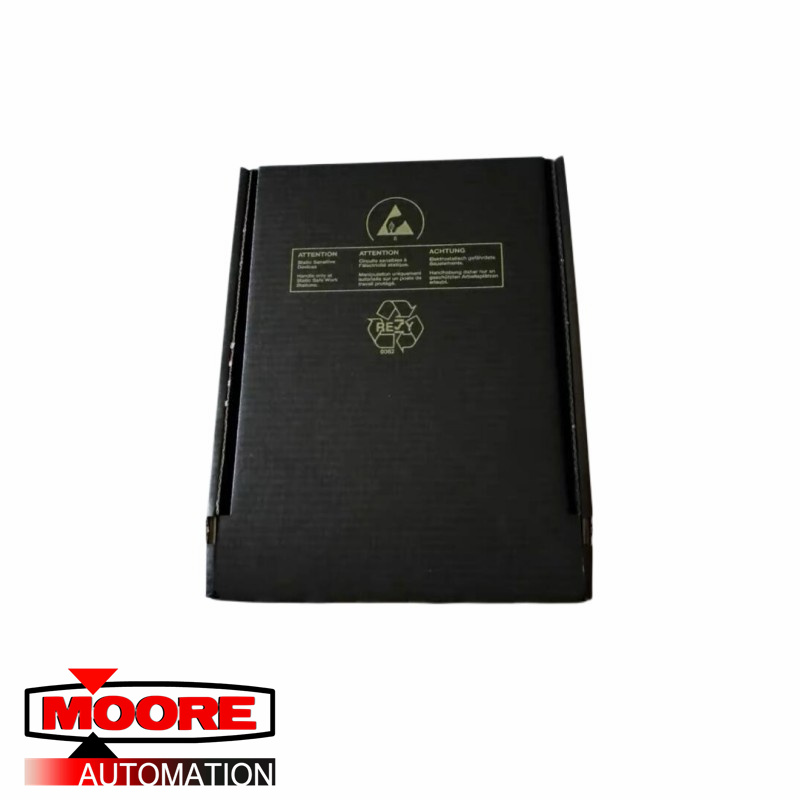

REXROTH VT5035-17 AMPLIFIER CARD

[Part number]：VT5035-17
[Origin]：USA
[Status]: Brand New In Stock
[Year of Production]: 2020-2022 available

[Shipment]: From Xiamen, China to Worldwide

Command value inputs 1 to 4 can be used for calling command values [1] by operating the associated relays (K1 to K4). The command value voltage is provided either directly through the regulated ±9 V voltages of the internal power supply unit [10] or via an external command value po ten tio me ter. The following is valid for these inputs: ± 9 V 100 % 1). If these four command value inputs are connected directly to the regulated ± 9 V voltages, four different command values can be set using po ten tio me ters "w1" to "w4". If external potentiometers are used at these inputs, the internal potentiometers act as attenuators or limiters, unless they are set to maximum.

Command value input 5 is a differential input (0 to ± 10 V). If the command value is provided by external electronics with another reference potential, this input must be used. When switching the command value voltage on or off, care must be taken to ensure that both signal cables are always disconnected from or connected to the input.

The downstream ramp generator [4] creates a ramp-shaped output signal from a step-like input signal. The time constant of the output signal can be adjusted by means of potentiometer "t". The specified ramp rime refers to a command value stepchange of 100 % and can be approx. 1s or 5 s depending on the jumper setting (J5, J6). If a command value step-change of less than 100 % is applied to the input of the ramp generator, the ramp time shortens accordingly.
