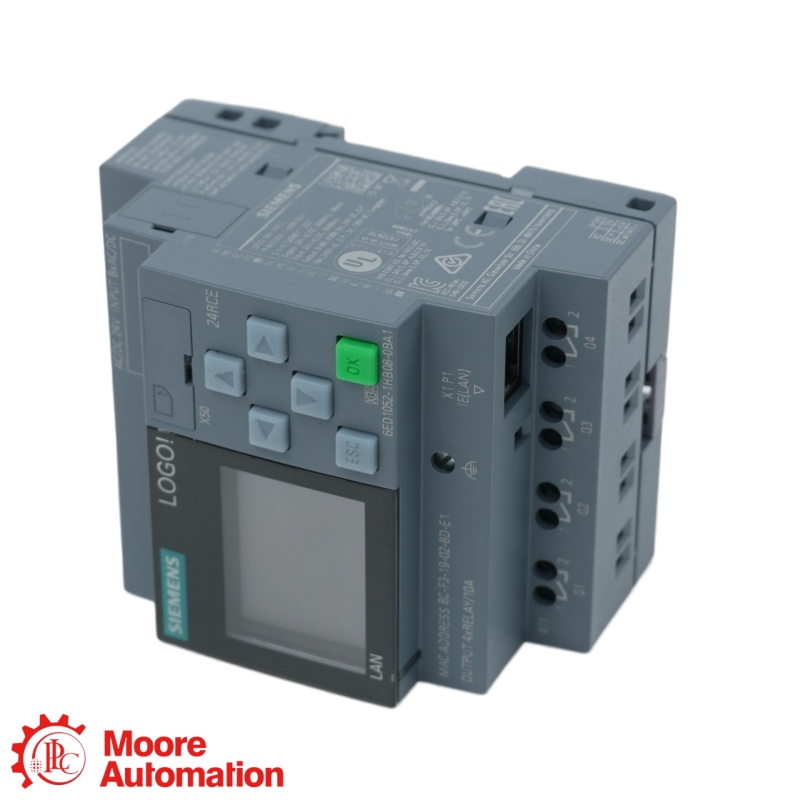

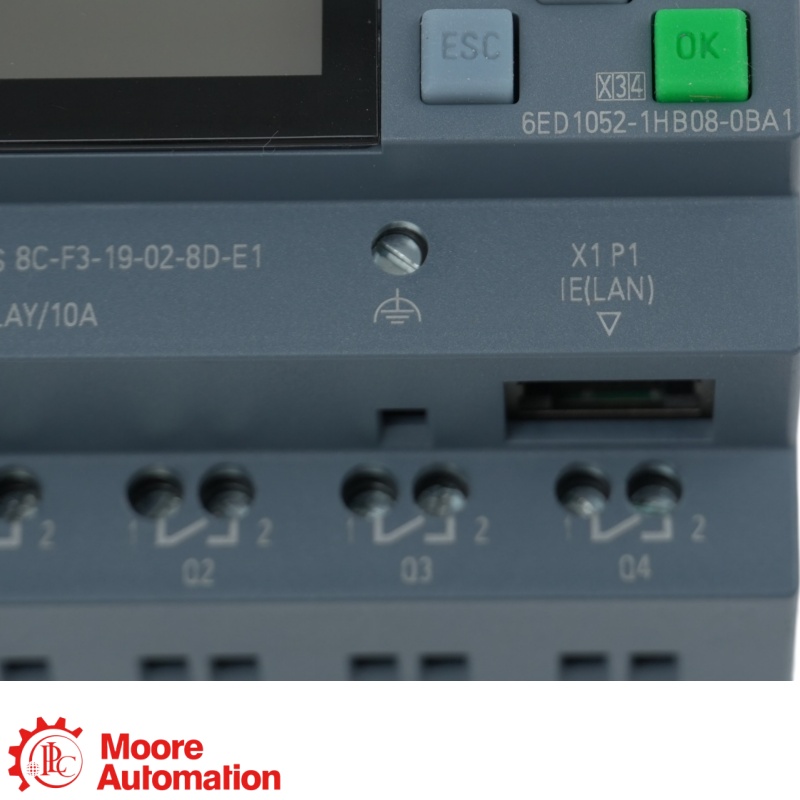

Siemens 6ED1052-1HB08-0BA1 LOGO! 24RCE Logic Module

Siemens LOGO! · 24RCE Logic Module

6ED1052-1HB08-0BA1

The 6ED1052-1HB08-0BA1 is a Siemens LOGO! 24RCE logic module for 24 V AC/DC control applications in the LOGO! 8 family.

MODULE TYPELOGIC MODULE

SUPPLY24 V AC/DC

OUTPUT TYPERELAY

APPLICATIONLOGO! 8 / ETHERNET

MANUFACTURERSiemens

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

SIEMENS ● LOGO! LOGIC MODULE

Siemens LOGO!

6ED1052-1HB08-0BA1

24 V AC/DC · 8 DI · 4 RELAY OUTPUTS

LOGO! 24RCE LOGIC MODULE

MODULE ROLE

6ED1052-1HB08-0BA1 is a Siemens LOGO! 24RCE logic module for 24 V AC/DC control applications in the LOGO! 8 family.

CONFIGURATION NOTE

For 6ED1052-1HB08-0BA1, Siemens identifies a 24 V AC/DC LOGO! 24RCE logic module. Use it with the LOGO! 8 programming, expansion and wiring configuration documented for this order number.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 6ED1052-1HB08-0BA1 Order Number Is Structured

6ED1052

LOGO! family identifier Siemens LOGO! logic-module product-family code

1HB08

24RCE configuration Identifies the 24 V AC/DC LOGO! 24RCE base-module variant

LOGO! 8

Complete LOGO! order-number suffix Retain the full order number when specifying the exact LOGO! module

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

Siemens LOGO! Logic Modules ↗

LOGO! 24RCE LOGIC MODULE

Engineering data at a glance

Click “+” to expand more specifications.

SUPPLY VOLTAGE24 V AC/DC

OUTPUT TYPERELAY OUTPUTS

MODULE FAMILYLOGO! 8

PROGRAMMINGLOGO! Soft Comfort V8.3 or higher

Official Siemens LOGO! documentation.

Official product verification Verify the complete order number 6ED1052-1HB08-0BA1; verify the 24 V AC/DC supply, relay-output configuration and compatibility with the intended LOGO! 8 system against current Siemens documentation before ordering.

General Information −

BrandSiemens

Part number6ED1052-1HB08-0BA1

Product typeLOGO! 24RCE Logic Module, 24 V AC/DC

Product familySiemens LOGO! 8

Module typeLOGO! 8 base module

DisplayIntegrated display

Mounting35 mm DIN rail; 4 spacing units wide

Permissible DC supply range20.4 to 28.8 V DC

AC line frequency47 to 63 Hz

Digital inputs8

Digital outputs4 relay outputs

Program capacityUp to 400 function blocks

EthernetIntegrated

Web serverIntegrated

Data loggingIntegrated

Memory cardStandard microSD card

Relay switching capacity10 A max. resistive load; 3 A max. inductive load

Clock power reserve480 h

Operating temperature−20 to +55 °C; no condensation

Dimensions71.5 × 90 × 60 mm

Supply type24 V AC/DC

Module and Compatibility ＋

Supply voltage24 V AC/DC

Output typeRelay outputs

Compatible systemLOGO! 8 / LOGO! Soft Comfort V8.3 or higher

Ordering and Product Data ＋

EANVerification Required

UPCVerification Required

Article statusDiscontinued product; available as a spare part

Packaging quantity1 base module

Lifecycle statusSuccessor: 6ED1052-1HB08-0BA2

Packaging Data ＋

Packaging dimensions and net weight: Dimensions: 71.5 × 90 × 60 mm; confirm shipping weight.

Source: Siemens official LOGO! 8 system documentation for 6ED1052-1HB08-0BA1.

FAQ

Questions Buyers Ask Most

What is 6ED1052-1HB08-0BA1 used for?＋

6ED1052-1HB08-0BA1 is a Siemens LOGO! 24RCE logic module for 24 V AC/DC control applications in the LOGO! 8 family.

What supply voltage does 6ED1052-1HB08-0BA1 require?＋

6ED1052-1HB08-0BA1 is a LOGO! 24RCE module for 24 V AC/DC supply. Confirm the panel voltage, protective wiring and terminal assignment against the exact Siemens datasheet before installation.

What output type does 6ED1052-1HB08-0BA1 use?＋

6ED1052-1HB08-0BA1 provides four relay outputs. Verify contact ratings, load category, protective devices and terminal wiring in the exact Siemens datasheet before connecting field loads.

Which interfaces and I/O are integrated in 6ED1052-1HB08-0BA1?＋

6ED1052-1HB08-0BA1 integrates eight digital inputs, four relay outputs, Ethernet and a web server. Confirm the I/O wiring, network settings and connected LOGO! expansion configuration before commissioning.

How is 6ED1052-1HB08-0BA1 programmed?＋

Program 6ED1052-1HB08-0BA1 with LOGO! Soft Comfort V8.3 or higher through its Ethernet interface. Back up the existing program and confirm device and network compatibility before transfer.

Is 6ED1052-1HB08-0BA1 interchangeable with newer LOGO! modules?＋

Do not assume direct interchangeability. Siemens lists 6ED1052-1HB08-0BA2 as the successor to 6ED1052-1HB08-0BA1; verify program, expansion, wiring and mounting compatibility before replacement.

What should be checked before ordering 6ED1052-1HB08-0BA1?＋

When ordering 6ED1052-1HB08-0BA1, provide the exact model, quantity, nameplate revision, 24 V AC/DC supply, relay-load details, Ethernet configuration, installed LOGO! system and destination.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
6ED1052-1HB08-0BA1

Official Siemens documentation for the LOGO! 24RCE logic module.

Siemens LOGO! 24RCE Logic Module

Siemens official LOGO! system manual for 6ED1052-1HB08-0BA1, including 8 digital inputs, 4 relay outputs, Ethernet, the integrated web server and LOGO! Soft Comfort V8.3 compatibility.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this product page are based on publicly available official Siemens manufacturer documentation.

LOGO! LOGIC MODULE RELATIONSHIP

How 6ED1052-1HB08-0BA1 Fits the Siemens LOGO! 8 Logic-Module Range

Siemens is the brand; Siemens LOGO! 8 Logic Modules is the product family; and 6ED1052-1HB08-0BA1 is the 24 V AC/DC LOGO! logic module for compatible LOGO! 8 control systems.

Siemens · BRAND

Siemens LOGO! 8 Logic ModulesLOGIC CONTROL · 24 V AC/DC

LOGIC MODULE

24 V AC/DC · 8 DI · 4 RELAY OUTPUTS

6ED1052-1HB08-0BA1 provides LOGO! 8 relay-based control logic from a 24 V AC/DC supply for compatible Siemens automation applications.

CONTROL SYSTEM

LOGO! 8 / LOGO! Soft Comfort V8.3 or higher

Use 6ED1052-1HB08-0BA1 only with the LOGO! 8 system and expansion/programming configuration supported by Siemens documentation.

PROGRAMMING

LOGO! Soft Comfort V8.3 or higher

Program the module with the Siemens LOGO! programming workflow and the software/cable combination applicable to the LOGO! 8 generation.

System relationship: verify the complete order number, 24 V AC/DC supply, relay-output load and the LOGO! 8 compatibility before commissioning or replacement.
