PRODUCT INFORMATION ● distributed I/O ANALOG OUTPUT

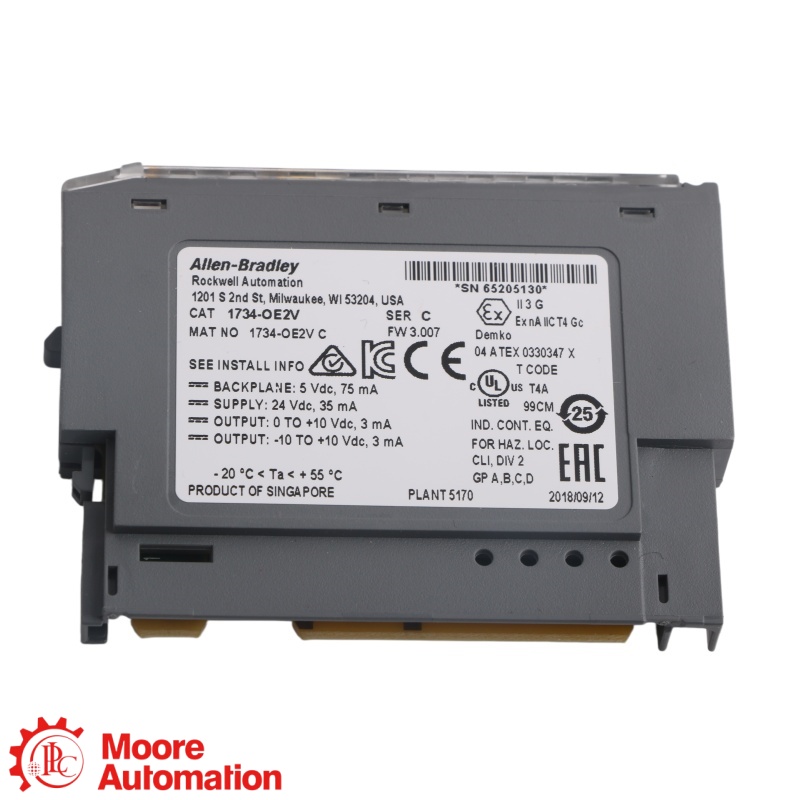

1734 ANALOG OUTPUT MODULE

1734-OE2V

2-CHANNEL VOLTAGE OUTPUT

2 OUTPUTS · 14-BIT RESOLUTION

PRODUCT ROLE

1734-OE2V is a 2-channel analog voltage output module with single-ended, non-isolated outputs. It provides 0…10 V or ±10 V output ranges and requires an external 24 V DC supply.

ORDER CHECK

For 1734-OE2V, confirm the complete catalog number, output range, external 24 V DC supply and connected load requirements before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1734-OE2V order number is structured

1734

Bulletin family1734 distributed I/O family

OE2

Module functionTwo analog outputs

Output signalVoltage-output version

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734 ANALOG OUTPUT MODULE ↗

1734-OE2V

Engineering data at a glance

Click “+” to expand more specifications.

OUTPUT RANGE0…10 V / ±10 V

RESOLUTION14 bit

DIMENSIONS56.6 × 12.1 × 77.5 mm

WEIGHT36 g

Official 1734-OE2V documentation values.

Configuration verification

Confirm the exact catalog number, output range, power supply and connected load before ordering 1734-OE2V.

General Information −

Catalog number1734-OE2V

Product typeTwo analog outputs

Output signal0…10 V / ±10 V

Resolution14 bit

MountingDIN rail within a compatible 1734 assembly

Module constructionOpen-style distributed I/O module

System roleConverts controller output data to analog voltage

Physical and Wiring ＋

Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm (2.23 × 0.48 × 3.05 in.)

Approximate weight36 g (1.27 oz)

External supply24 V DC nominal

Field connectionCompatible removable terminal base

Output channels2

Output isolationNon-isolated channels

Enclosure typeNone (open-style)

Electrical and Isolation ＋

Power supply24 V DC external supply

Maximum currentFollow official load and derating limits

Signal range0…10 V or ±10 V

Resolution14 bit

Channel isolationOutputs are not isolated from each other

Installation checkVerify voltage and current against the official wiring instructions

System requirementUse only with compatible distributed I/O assemblies

Environmental ＋

Operating temperature−20…55 °C (−4…131 °F)

Storage temperature−40…85 °C (−40…185 °F)

Relative humidity5…95%, noncondensing

Vibration5 g at 10…500 Hz

Operating shock30 g

Nonoperating shock50 g

Documentation ＋

Installation instructions1734-IN002

User manual1734-UM001

Selection guide1734-SG001

Country of originUSA

Lifecycle and Compatibility ＋

Lifecycle statusConfirm current availability before ordering

Ordering checkConfirm the exact catalog number, output range, external power and connected load before replacement.

Source: official publications 1734-IN002, 1734-SG001 and the official 1734-OE2V product documentation.

FAQ

Questions Buyers Ask Most

What is 1734-OE2V used for?＋

1734-OE2V provides two single-ended, non-isolated analog voltage output channels for compatible distributed I/O systems.

How many output channels does 1734-OE2V provide?＋

1734-OE2V provides two analog voltage output channels.

What output ranges does 1734-OE2V use?＋

1734-OE2V supports 0…10 V and ±10 V output ranges.

What temperature range is listed for 1734-OE2V?＋

1734-OE2V is listed for −20 to 55 °C (−4 to 131 °F).

Which official instructions cover 1734-OE2V?＋

1734-OE2V is covered by PLC publication 1734-IN002 for the analog output module.

What should be checked before ordering 1734-OE2V?＋

For 1734-OE2V, confirm the catalog number, output range, power supply and connected load before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
1734-OE2V

Official PLC documentation for the 1734-OE2V 2-channel analog voltage output module.

distributed I/O Analog Output Modules

PLC publication 1734-IN002 covering 2-channel analog voltage output modules, installation, wiring and safety information.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this page are based on PLC publication 1734-IN002 and the official 1734-OE2V product page.

1734 ANALOG OUTPUT RELATIONSHIP

How 1734-OE2V Fits into the 1734 Analog Output Family

1734 identifies the distributed I/O platform. Within this platform, an analog output module converts controller data into field voltage signals for compatible loads. 1734-OE2V is the two-channel analog voltage output module with 14-bit resolution.

PLATFORM1734 Distributed I/OModular I/O architecture

MODULE FAMILY1734 Analog OutputTwo-channel voltage output

EXACT MODEL1734-OE2V2-channel analog voltage output module

Selection note: Match the output range, external 24 V DC supply and connected load requirements before replacement.

APPLICATION AREAS

Application mind map for 1734-OE2V

Maintenance ReplacementReplace an analog output module after exact catalog-number and load verification

Spare-Part PlanningHold a model-matched analog output module for planned maintenance

APPLICATION CENTER 1734-OE2V distributed I/O analog voltage output module

Compatibility ReviewCompare catalog number, output range and power requirements before shipment

Documentation CheckUse PLC publication 1734-IN002 for installation reference.
