PRODUCT INFORMATION ● distributed I/O FIELD POWER

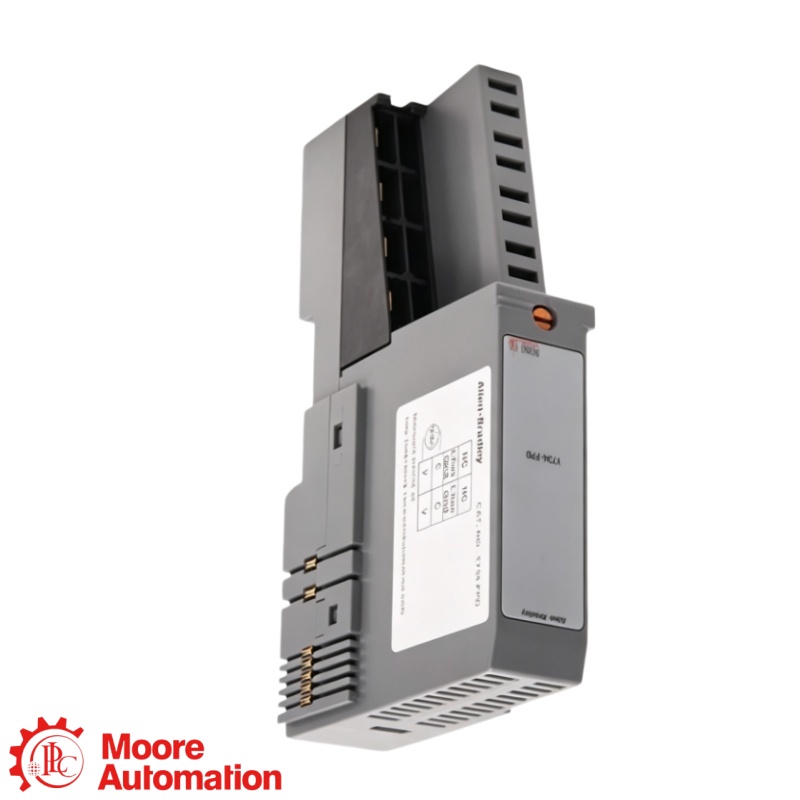

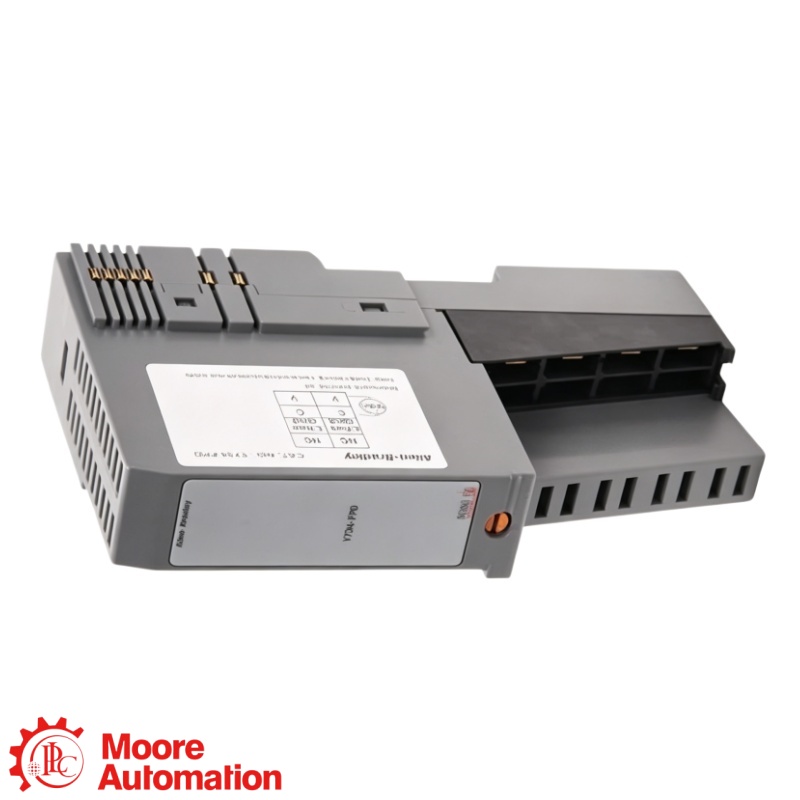

1734 FIELD POTENTIAL DISTRIBUTOR

1734-FPD

FIELD POWER DISTRIBUTOR

10 A MAXIMUM BUS CURRENT

PRODUCT ROLE

1734-FPD is a field potential distributor that breaks the field-power bus and creates a new field-power segment for downstream distributed I/O modules.

ORDER CHECK

For 1734-FPD, confirm the complete catalog number, field-power voltage, maximum bus current and downstream module requirements before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1734-FPD order number is structured

1734

Bulletin family1734 distributed I/O family

FPD

Component functionField potential distributor

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734 FIELD POTENTIAL DISTRIBUTOR ↗

1734-FPD

Engineering data at a glance

Click “+” to expand more specifications.

MAX BUS CURRENT10 A

POWER TYPEAC / DC

DIMENSIONS79.8 × 25.3 × 133.1 mm

WEIGHT0.12 kg

Official 1734-FPD documentation values.

Configuration verification

Confirm the exact catalog number, field-power source, bus current and downstream modules before ordering 1734-FPD.

General Information −

Catalog number1734-FPD

Product typeField potential distributor

Maximum bus current10 A

Field-power typeAC / DC

MountingDIN rail within a compatible 1734 assembly

Module constructionOpen-style field-power distributor

System roleSeparates field-power distribution segments

Physical and Wiring ＋

Dimensions (H × W × D)79.8 × 25.3 × 133.1 mm (3.14 × 1.00 × 5.24 in.)

Approximate weight0.12 kg (4.23 oz)

External supplyMatch the installed AC or DC field-power system

Field connectionCompatible terminal-base assembly

Output channelsDownstream field-power segment

Output isolationField-power segment separation

Enclosure typeNone (open-style)

Electrical and Isolation ＋

Power supplyAC or DC field power, configuration-dependent

Maximum current10 A

Signal rangeField-power distribution

ResolutionNot applicable

Channel isolationSeparates upstream and downstream field-power buses

Installation checkVerify voltage and current against the official wiring instructions

System requirementUse only with compatible distributed I/O assemblies

Environmental ＋

Operating temperature−20…55 °C (−4…131 °F)

Storage temperature−40…85 °C (−40…185 °F)

Relative humidity5…95%, noncondensing

Vibration5 g at 10…500 Hz

Operating shock30 g

Nonoperating shock50 g

Documentation ＋

Installation instructions1734-IN059

User manual1734-UM001

Selection guide1734-SG001

Country of originUSA

Lifecycle and Compatibility ＋

Lifecycle statusConfirm current availability before ordering

Ordering checkConfirm the exact catalog number, field-power voltage, bus current and downstream modules before replacement.

Source: official publications 1734-IN059, 1734-SG001 and the official 1734-FPD product documentation.

FAQ

Questions Buyers Ask Most

What is 1734-FPD used for?＋

1734-FPD breaks the field-power distribution bus and establishes a new field-power segment for downstream modules.

What maximum bus current does 1734-FPD provide?＋

1734-FPD supports a maximum field-power bus current of 10 A.

What field-power types does 1734-FPD use?＋

1734-FPD supports compatible AC or DC field-power configurations.

What temperature range is listed for 1734-FPD?＋

1734-FPD is listed for −20 to 55 °C (−4 to 131 °F).

Which official instructions cover 1734-FPD?＋

1734-FPD is covered by PLC publication 1734-IN059 for field potential distributors.

What should be checked before ordering 1734-FPD?＋

For 1734-FPD, confirm the catalog number, field-power source, bus current and downstream modules before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
1734-FPD

Official PLC documentation for the 1734-FPD field potential distributor.

distributed I/O Field-Power Components

PLC publication 1734-IN059 covering field potential distributors, installation, wiring and safety information.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this page are based on PLC publication 1734-IN059 and the official 1734-FPD product page.

1734 FIELD-POWER RELATIONSHIP

How 1734-FPD Fits into the 1734 Field-Power Family

1734 identifies the distributed I/O platform. Within this platform, a field potential distributor separates the field-power bus and begins a new downstream power segment. 1734-FPD is the field potential distributor with a documented maximum bus current of 10 A.

PLATFORM1734 Distributed I/OModular I/O architecture

COMPONENT FAMILY1734 Field PowerPower-segment distribution

EXACT MODEL1734-FPDField potential distributor

Selection note: Match the field-power voltage, maximum bus current and downstream module requirements before replacement.

APPLICATION AREAS

Application mind map for 1734-FPD

Maintenance ReplacementReplace a field potential distributor after exact voltage and bus-current verification

Spare-Part PlanningHold a model-matched field-power component for planned maintenance

APPLICATION CENTER 1734-FPD distributed I/O field potential distributor

Compatibility ReviewCompare catalog number, field-power voltage and bus-current requirements before shipment

Documentation CheckUse PLC publication 1734-IN059 for installation reference.
