PRODUCT INFORMATION ● distributed I/O ADDRESS RESERVE

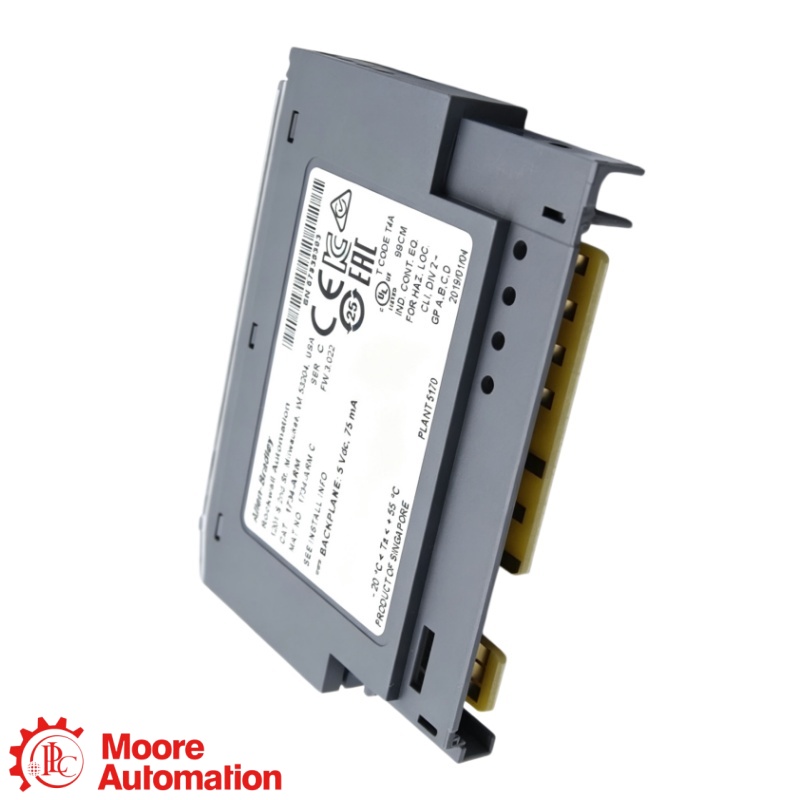

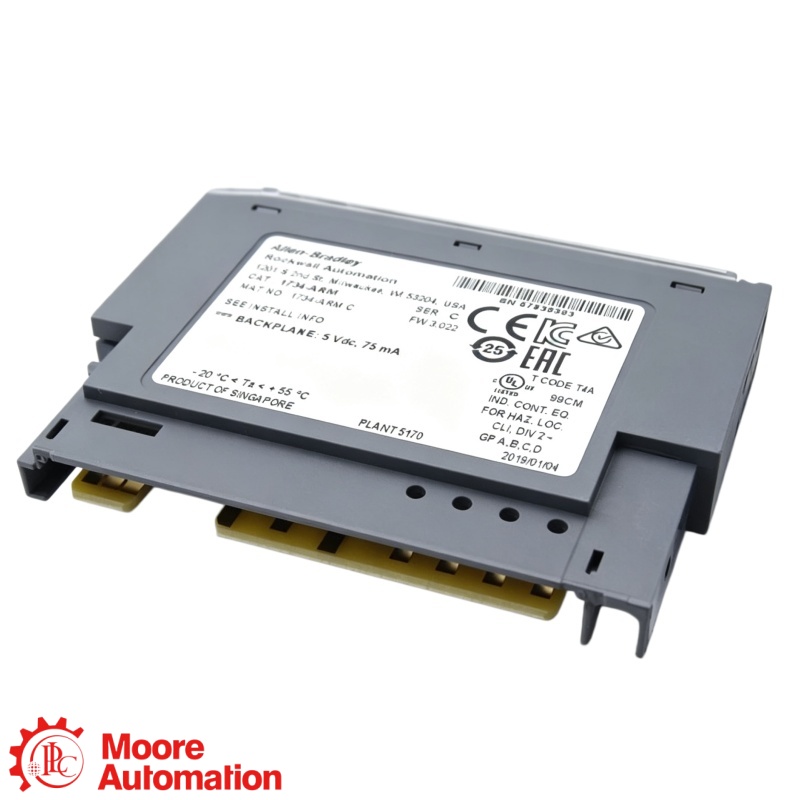

1734 ADDRESS RESERVE MODULE

1734-ARM

ADDRESS RESERVE MODULE

RESERVES ONE NODE ADDRESS

PRODUCT ROLE

1734-ARM is an address reserve module that retains a node address for later insertion of a future option. It requires no external wiring, produces one byte of I/O data and consumes no I/O data.

ORDER CHECK

For 1734-ARM, confirm the catalog number, intended slot, compatible wiring base, keyswitch position and future replacement module before ordering.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the 1734-ARM order number is structured

1734

Bulletin family1734 distributed I/O family

ARM

Module codeAddress reserve module

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

1734 ADDRESS RESERVE ↗

1734-ARM

Engineering data at a glance

Click “+” to expand more specifications.

FUNCTIONAddress reserve

BUS CURRENT75 mA @ 5V DC

DIMENSIONS56.6 × 12.1 × 77.5 mm

WEIGHT23.3 g

Official 1734-ARM documentation values.

Configuration verification

Confirm the exact catalog number, intended slot, wiring base, keyswitch position and future module before ordering 1734-ARM.

General Information −

Catalog number1734-ARM

Product typeAddress reserve module

System roleAddress reserve

External wiringNone required

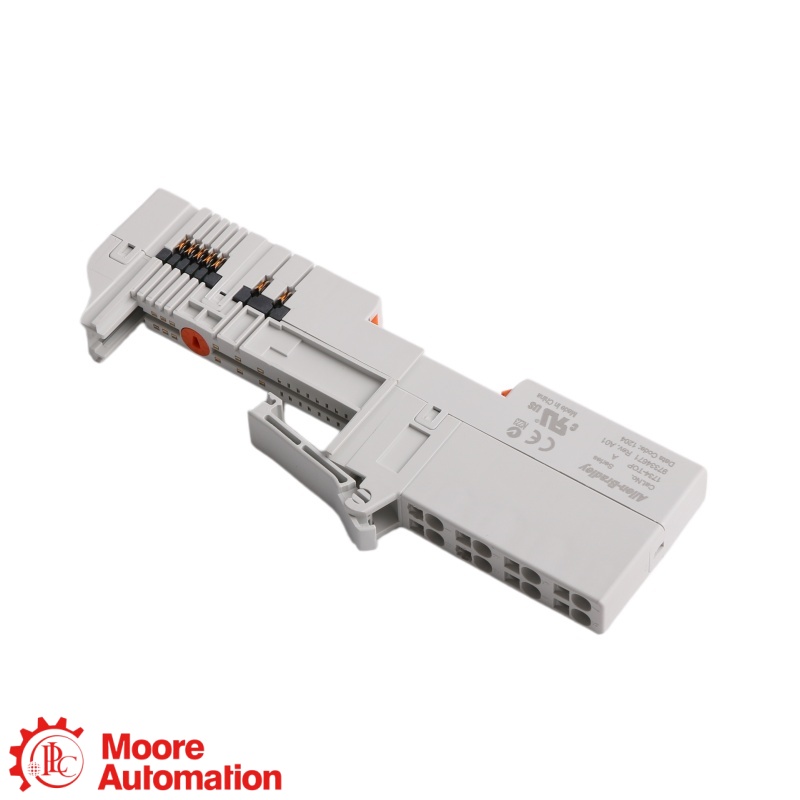

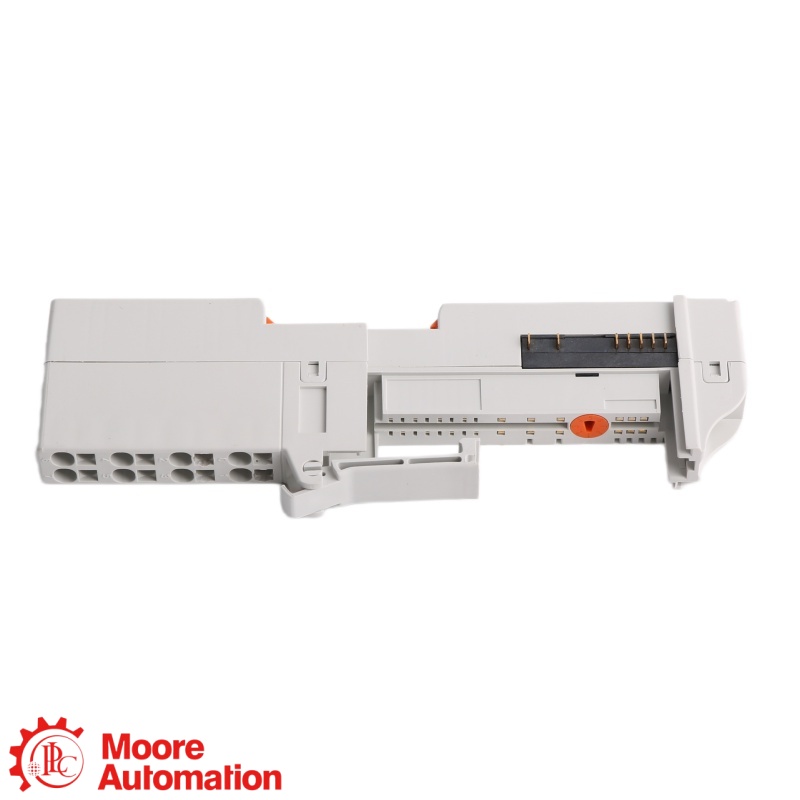

Module location1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS wiring base

Produced I/O data1 byte

Consumed I/O dataNone

Physical and Wiring ＋

Dimensions (H × W × D)56.6 × 12.1 × 77.5 mm (2.23 × 0.49 × 3.05 in.)

Approximate weight23.3 g (1.0 oz)

Keyswitch positionUse the position of the future or removed module

Compatible bases1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS

Status indicatorsModule status and network status

Field wiringNo external wiring required

Enclosure typeNone (open-style)

Electrical and Isolation ＋

local backplane bus current, maximum75 mA @ 5V DC

Power dissipation, maximum0.375 W @ 5V DC

Thermal dissipation, maximum1.3 BTU/hr @ 5V DC

Produced data1 byte

Consumed dataNone

Module statusGreen/red status indicator

Network statusGreen/red network indicator

Environmental ＋

Operating temperature−20…55 °C (−4…131 °F)

Storage temperature−40…85 °C (−40…185 °F)

Relative humidity5…95%, noncondensing

Vibration2 g at 10…500 Hz

Operating shock30 g

Nonoperating shock50 g

Documentation ＋

Installation instructions1734-IN019

User manual1734-UM016

Selection guide1734-SG001

Country of originSingapore

Lifecycle and Compatibility ＋

Lifecycle statusActive

Ordering checkConfirm the exact catalog number, intended slot, wiring base, keyswitch position and future module before replacement.

Source: official publications 1734-IN019, 1734-SG001 and the official 1734-ARM product documentation.

FAQ

Questions Buyers Ask Most

What is 1734-ARM used for?＋

1734-ARM retains a node address so a future option can later be inserted into the reserved slot.

Does 1734-ARM require external wiring?＋

1734-ARM requires no external wiring according to PLC publication 1734-IN019.

How much I/O data does 1734-ARM exchange?＋

1734-ARM produces one byte of I/O data and consumes no I/O data.

Which wiring bases support 1734-ARM?＋

1734-ARM can be installed with 1734-TB, 1734-TBS, 1734-TOP or 1734-TOPS wiring base assemblies.

What is the maximum local backplane bus current for 1734-ARM?＋

1734-ARM has a documented maximum local backplane bus current of 75 mA at 5V DC.

What should be checked before ordering 1734-ARM?＋

For 1734-ARM, confirm the complete catalog number, intended slot, compatible wiring base, keyswitch position and future module before ordering.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Manuals and Official References for
1734-ARM

Official PLC documentation for the 1734-ARM distributed I/O address reserve module.

distributed I/O Address Reserve Modules

PLC publication 1734-IN019 covering distributed I/O address reserve modules, installation, wiring and safety information.

OFFICIAL DATASHEET

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

Technical statements on this page are based on PLC publication 1734-IN019 and the official 1734-ARM product page.

1734 ADDRESS RESERVE RELATIONSHIP

How 1734-ARM Fits into the 1734 Distributed I/O System

1734 identifies the distributed I/O platform. Within this platform, an address reserve module retains a node address so a future option can later be inserted in the same slot. 1734-ARM retains a node address, requires no external wiring, produces one byte of I/O data and consumes no I/O data.

PLATFORM1734 Distributed I/OModular I/O architecture

SYSTEM ROLE1734 Address ReservationRetains the planned node address

EXACT MODEL1734-ARMAddress reserve module

Selection note: Match the reserved slot, compatible wiring base and keyswitch position to the planned future module.

APPLICATION AREAS

Application mind map for 1734-ARM

Maintenance ReplacementReserve a node address for a future distributed I/O option

Spare-Part PlanningMaintain planned slot allocation during staged system expansion

APPLICATION CENTER 1734-ARM distributed I/O address reserve module

Compatibility ReviewCompare catalog number, wiring base and intended slot before shipment

Documentation CheckUse PLC publication 1734-IN019 for installation reference.
