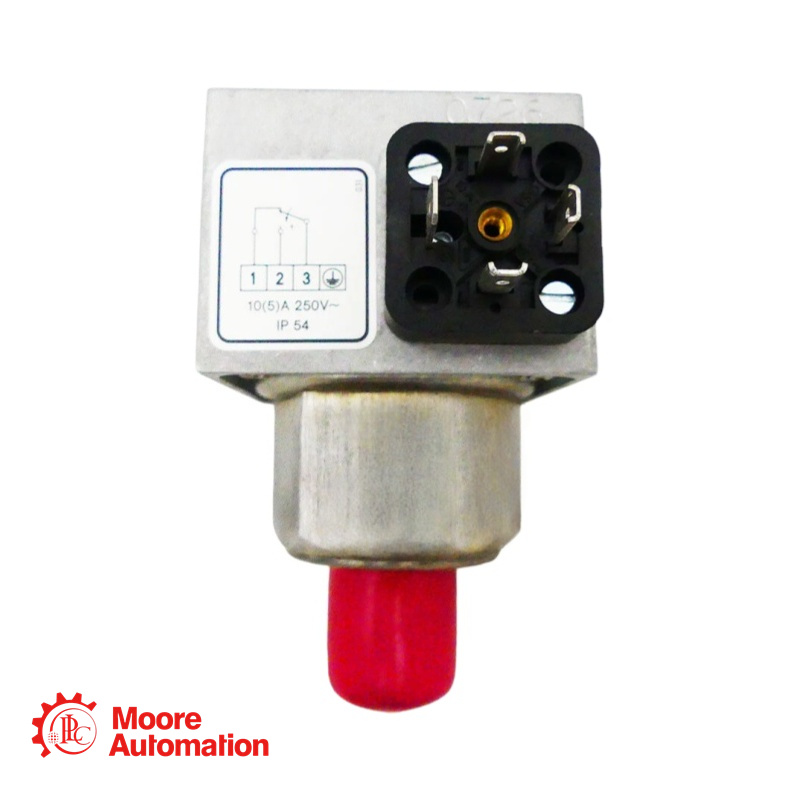

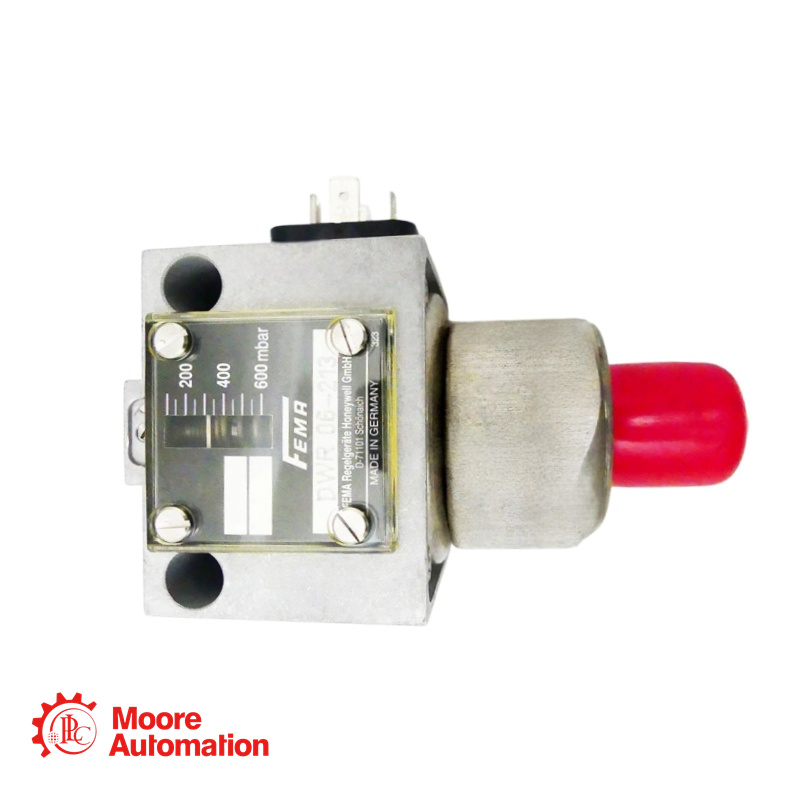

DWR06 Pressure Monitors are especially suitable as a pressure monitor or pressure limiter for fuel gases.
Brand :
HoneywellPart Number :
DWR06Weight :
0.38 kgDimension :
12.2x10.7x3cmCountry of Origin :
USAHS Code :
8537101190Description :
Pressure Monitor
DWR06
Brand:
Part Number:
Short Description:
Origin:
Condition:
Warranty:
Honeywell
DWR06
Pressure Monitor
USA
100% New & Original
12 Months
<DWR06 Description>
DWR06 Pressure Monitors are especially suitable as a pressure monitor or pressure limiter for fuel gases (DVGW Worksheet G 260) and liquid fuels (e.g. fuel oil), as well as for steam systems according to TRD 604 and hot water systems to DIN EN12828, systems in accordance to DIN EN12952-11 and DIN EN12953-9. The DWR is used to monitor maximum and minimum pressures. This pressure switch is "of special construction" and has been tested with 2 million operating cycles. TÜV and DVGW tests exists.It comes with rugged housing made of seawaterresistant die cast aluminium.Switching differential is adjustable with DWR-203 types.
Specification of DWR06
Setting Range: 0.1...0.6 bar
Switching Differential (Tolerance): 35...73 mbar
Maximum Working Pressure: 6 bar
Pressure Connection: External thread G 1/2 (pressure gauge connection) to DIN 16288 and internal thread G 1/4 to ISO 228 Part 1. For gas applications, the internal thread is permissible only up to 4 bar.
Switching Device Housing: Rugged housing made of seawater-resistant die-cast aluminium (GD Al Si 12).
Switching Capacity:
250 VAC (ohmic): 8 A
250 VDC (ohmic): 5 A
24 VDC (ohmic): 0.3 A
Ambient Temperature: -20...+70°C
Medium Temperature: -25...+70°C (can reach 85°C for short periods)
|
DWR06 Application |
|
★Fuel gases (in accordance with DVGW work sheet G 260) |
|
DWR06 |
Sales Manager: |
|
Phone/Whatsapp: |
|
|
Email: |
|
|
Address: |
|
Fast delivery |
Long warranty |
|
Fast shipping to provide you with the best solution to meet your urgent needs If we don't have the stock request quotation you need, we can usually find it for you. |
We provides 12 months warranty for all parts and components.Your satisfaction is how we measure success! |
