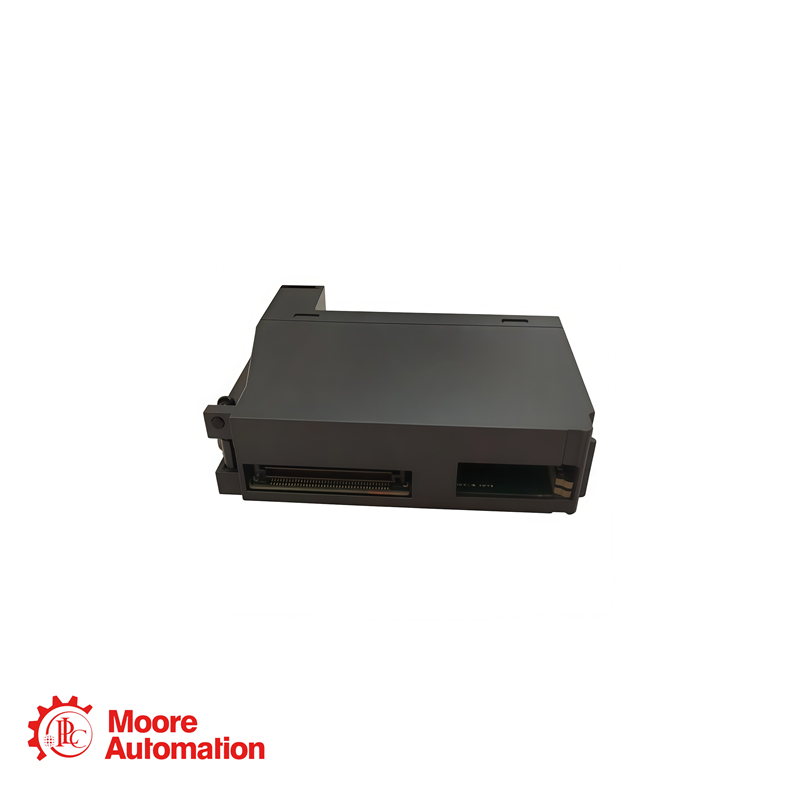

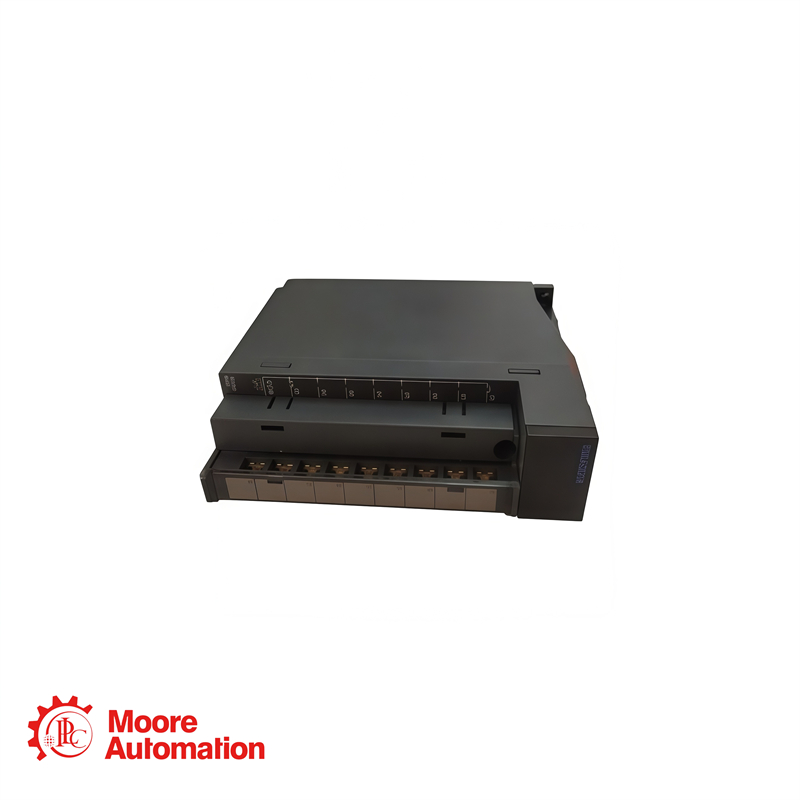

HONEYWELL 2MLI-D21A Digital Input Module

Product Discription

Part number: 2MLI-D21A

Manufacturer: Honeywell

Country of orign: USA

Description: Digital Input Module

CONDITION: Brand New Factory Sealed - Original

Availability: 1

Warranty: 12 Months

Shipping: Worldwide by DHL / Fedex / TNT / UPS

Number of inputs: 8
Rated input voltage: 24 V DC (20.4–28.8 V, ripple < 5%)
Input current: Approximately 4 mA/point (at 24 V DC)
Input impedance: ≈ 5.6 kΩ
Isolation: Optocoupler
Isolation withstand voltage: AC 560 Vrms (3 cycles, 2000 m altitude)
Isolation resistance: ≥ 10 MΩ
Switching time: Configurable: 1 / 3 / 5 / 10 / 20 / 70 / 100 ms, default: 3 ms
Common terminals: 8 / COM
External connection: 9-point detachable terminal block (M3×6 screws)
Wire size: 0.3–0.75 mm² (AWG 22–18)
Recommended crimp terminals: R1.25-3 (ferrule terminals not permitted)
5 V backplane power consumption: 20 mA
Operating temperature: 0–55°C Storage Temperature -25 to +75°C (-25 to +75°C) Relative Humidity 5 to 95% RH, non-condensing
