GE MARK VIE · TURBINE-SPECIFIC PRIMARY TRIP

IS220PTURH1A

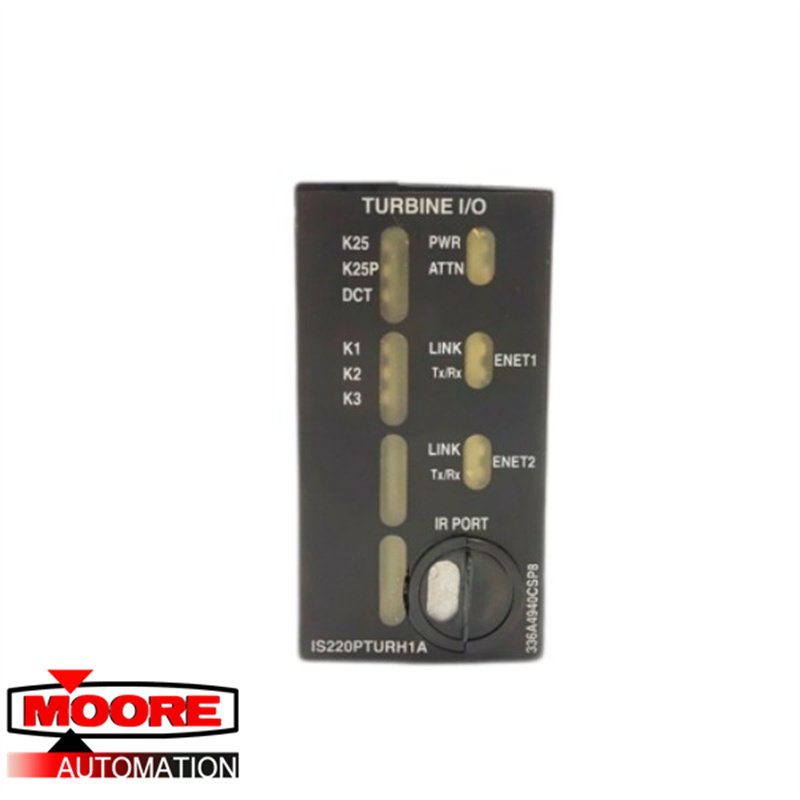

IS220PTURH1A is a GE Mark VIe turbine-specific primary-trip I/O pack. GE lists it with the IS200TRPAH1A terminal board and specifies a nominal 28 V dc supply, 0.41 A maximum supply current, speed inputs, voltage-detection circuits and an E-stop interface.

PRODUCT TYPETURBINE PRIMARY TRIP I/O PACK
PLATFORMMark VIe
SUPPLY28 V dc nominal
ROLEPrimary turbine trip
MANUFACTURERGE
CONDITION / WARRANTYOriginal New · One-Year Warranty
ISO CERTIFICATIONISO-Certified Product
VERIFICATION● Product photos and videos provided after inquiry
REQUEST A QUOTE
MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.
GE ● TURBINE PRIMARY TRIP I/O PACK
MARK VIE

IS220PTURH1A

TURBINE PRIMARY TRIP I/O PACK

MARK VIE · TURBINE PRIMARY TRIP · PTUR

MODULE ROLE
IS220PTURH1A is a turbine-specific primary-trip I/O pack for GE Mark VIe control systems. It connects turbine speed, trip-string monitoring and E-stop circuits through the selected turbine terminal-board arrangement.
LONG DESCRIPTION
IS220PTURH1A is listed by GE with the IS200TRPAH1A turbine primary-trip terminal board. The pack uses a nominal 28 V dc supply with 0.41 A maximum current. The documented TRPA interface includes speed inputs, voltage-detection inputs, E-stop circuits and contact outputs. A TRPA installation requires three PTUR packs, mounted directly or connected through the TTUR arrangement.
👩‍💼
WANT THE BEST PRICE?
Frida
Sales Leader 🏆
EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275
ORDER NUMBER BREAKDOWN

How the IS220PTURH1A Reference Is Structured

IS
Issuing organizationGE Power, Salem, Virginia
2
Substance codeLegacy non-RoHS designation
2
Assembly constructionCircuit-board assembly or assemblies with housing
0
Coating codeNot conformal coated
PTUR
Function mnemonicTurbine-specific primary-trip I/O pack
H
Component technologyIncludes surface-mount components
1
Assembly variantBill of material 1
A
Major revisionMajor revision A
MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗
IS220PTURH1A TURBINE PRIMARY TRIP I/O PACK

Engineering data at a glance

Click “+” to expand more specifications.

SUPPLY28 V dc
CURRENT0.41 A
SPEED±15 V dc
DC INPUT16–140V
PTURH1A ratings: nominal 28 V dc supply, 0.41 A maximum supply current, −15 to +15 V dc speed inputs and 16–140 V dc voltage-detection inputs through TRPA.
TRPA installation arrangement The primary-trip pack IS220PTURH1A is used in a three-pack TRPA arrangement. Direct mounting activates TRPA speed inputs; when TRPA is cabled to packs mounted on TTUR, those speed inputs are not connected.
GENERAL INFORMATION −
BrandGE
Part numberIS220PTURH1A
Product typeTurbine Primary Trip I/O Pack
Associated terminal boardIS200TRPAH1A
Nominal supply28 V dc
Maximum supply current0.41 A dc
INPUT ELECTRICAL RATINGS +
Supply operating range27.4–28.6 V dc
TRPA speed-input voltage−15 to +15 V dc
TRPA voltage-detection inputs16–140 V dc
E-STOP & CONTACT INTERFACE +
TRPA E-stop input18–140 V dc
E-stop open-circuit output28 V dc nominal
E-stop short-circuit current17 mA dc nominal
TRPA contact-output voltage24 V dc nominal; 28 V dc maximum
TRPA contact-output current7 A dc maximum
TRPA SYSTEM ARRANGEMENT +
Three-pack configuration: TRPAH1A works with three PTUR packs. It can carry the packs directly, or connect by three DC-37 cables to packs mounted on TTUR. The TRPA speed inputs are active only in the direct-mounted pack arrangement.
Source: GEH-6725R, section 3.18, page 73: exact PTURH1A/TRPAH1A combination and electrical ratings; GEH-6721Q Volume II, TRPA section, pages 24-38–24-44: installation and operation. No direct manufacturer-hosted instruction-manual PDF was confirmed.
FAQ

Questions Buyers Ask Most

What is the function of IS220PTURH1A?+

IS220PTURH1A is the Mark VIe turbine-specific primary-trip I/O pack. It interfaces with turbine speed and trip circuits through the associated terminal-board arrangement.

Which supply ratings are specified for IS220PTURH1A?+

IS220PTURH1A is listed with a nominal 28 V dc supply, a 27.4–28.6 V dc supply range and a maximum supply current of 0.41 A dc in GEH-6725R.

Which terminal board is listed with IS220PTURH1A?+

IS220PTURH1A is listed with IS200TRPAH1A in the manufacturer's hazardous-location hardware combinations. The TRPA board uses three PTUR packs rather than a single-pack simplex arrangement.

What input ranges are documented for IS220PTURH1A with TRPA?+

For the IS220PTURH1A and TRPA arrangement, the manufacturer lists −15 to +15 V dc speed inputs, 16–140 V dc voltage-detection inputs and an 18–140 V dc E-stop input.

When are TRPA speed inputs active with IS220PTURH1A?+

TRPA speed inputs are active when the three IS220PTURH1A packs mount directly on TRPA. When TRPA is cabled to packs on TTUR, the TRPA speed inputs are not used.

What contact-output rating applies to the TRPA interface used by IS220PTURH1A?+

The TRPA interface listed with IS220PTURH1A has a 24 V dc nominal contact-output voltage, a 28 V dc maximum and a 7 A dc maximum current. Contact outputs are polarity-sensitive and require the manufacturer's specified external suppression arrangement.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD
DATA SHEET

Product Information for
IS220PTURH1A

Official manufacturer-manual PDF status for GE IS220PTURH1A.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS220PTURH1A was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

GEH-6725R, section 3.18, page 73: exact PTURH1A/TRPAH1A combination and electrical ratings; GEH-6721Q Volume II, TRPA section, pages 24-38–24-44: installation and operation. No direct manufacturer-hosted instruction-manual PDF was confirmed.

GE MARK VIE PRIMARY-TRIP RELATIONSHIP

How IS220PTURH1A Fits Turbine Primary Trip

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PTURH1A is the turbine primary trip i/o pack for turbine-specific primary-trip interfaces.

GE · BRAND
GE Mark VIeTurbine Primary Trip I/O Pack
SYSTEM ROLE

Turbine Primary Trip I/O Pack

Interfaces turbine speed, trip-string voltage monitoring and E-stop circuits with the Mark VIe control system.

MODULE / CONFIGURATION

28 V dc nominal · 0.41 A maximum

The listed TRPA interface supports −15 to +15 V dc speed inputs, 16–140 V dc voltage detection and 18–140 V dc E-stop inputs.

TRPA & TURBINE TRIP INTERFACE

IS220PTURH1A · Turbine Primary Trip I/O Pack

Three PTUR packs connect directly to TRPA or use a TTUR-mounted arrangement with three DC-37 cables to TRPA.

System relationship: PTUR processes the turbine-specific primary-trip interface; TRPA terminates the trip circuits and TTUR can provide the alternative pack-mounting arrangement.
APPLICATION AREAS

Application map for IS220PTURH1A

Turbine Speed InputsInterface configured turbine speed pickups
