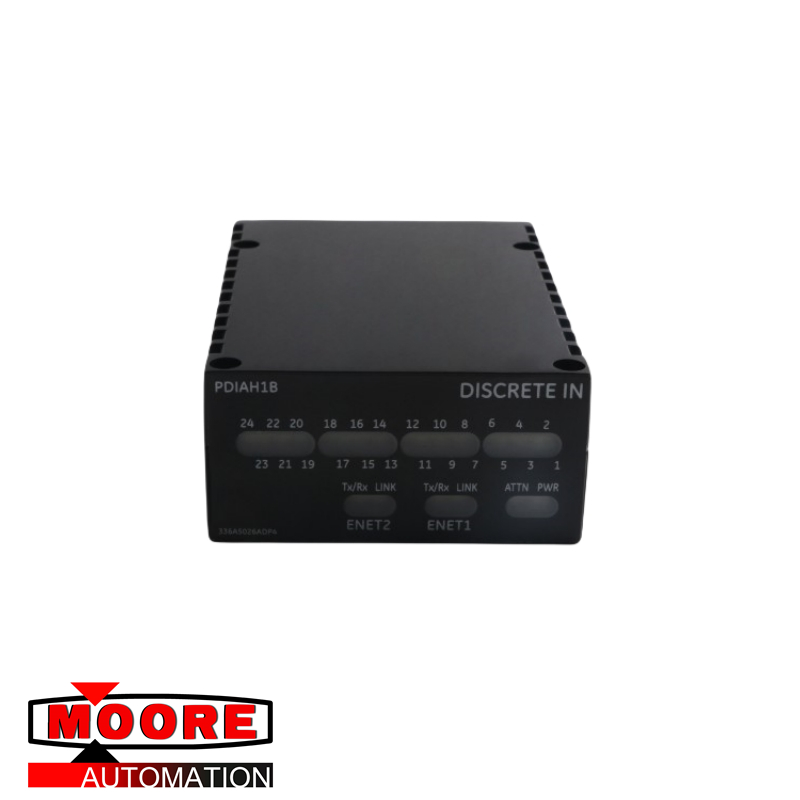

GE IS220PDIAH1B Mark VIe Discrete Input I/O Pack

GE MARK VIE · DISCRETE INPUT I/O PACK

IS220PDIAH1B

IS220PDIAH1B is a GE Mark VIe discrete input I/O pack for 24 contact inputs through an associated terminal board. The manufacturer lists a 24–28 Vdc supply, 0.24 A maximum input current and a 0–32 Vdc contact-input interface for the certified PDIAH1B configurations.

PRODUCT TYPEDISCRETE INPUT I/O PACK

PLATFORMMark VIe

INPUTS24 contact inputs

SUPPLY24–28 Vdc

MANUFACTURERGE

CONDITION / WARRANTYOriginal New · One-Year Warranty

ISO CERTIFICATIONISO-Certified Product

VERIFICATION● Product photos and videos provided after inquiry

REQUEST A QUOTE

✉ EMAIL · sales5@mooreplc.com WHATSAPP · +86 153 5940 8275

Inquire Now

MODEL SEARCHFind a specific part numberOpen the best-matched Moore Automation product page directly.

GE ● DISCRETE INPUT I/O PACK

MARK VIE

IS220PDIAH1B

DISCRETE INPUT I/O PACK

MARK VIE · CONTACT INPUT · PDIA

MODULE ROLE

IS220PDIAH1B is a GE Mark VIe discrete input I/O pack for 24 field-contact inputs. It works with a separate contact-input terminal board to acquire relay-contact or switch signals for the control system.

LONG DESCRIPTION

IS220PDIAH1B is listed with STCIH1A, STCIH2A, STCIH8A, TBCIH2C and TBCIH4C terminal-board variants. The manufacturer-hosted electrical schedule gives a 24–28 Vdc supply, 0.24 A maximum input current and a 0–32 Vdc contact-input interface for the listed configurations. Contact-wetting output ratings depend on the terminal-board variant and input group.

👩‍💼

WANT THE BEST PRICE?

Frida

Sales Leader 🏆

EMAILsales5@mooreplc.com WHATSAPP+86 153 5940 8275

ORDER NUMBER BREAKDOWN

How the IS220PDIAH1B Reference Is Structured

Issuing organizationGE Power, Salem, Virginia

Substance codeLegacy non-RoHS designation

Assembly constructionCircuit-board assembly or assemblies with housing

Coating codeNot conformal coated

PDIA

Function mnemonicDiscrete input I/O pack

Component technologyIncludes surface-mount components

BOM variantAssembly variant 1

Major revisionMajor revision B

MANUFACTURER-REFERENCE CHARACTERISTICS

Technical Specifications

GE Mark VIe ↗

IS220PDIAH1B DISCRETE INPUT I/O PACK

Engineering data at a glance

Click “+” to expand more specifications.

INPUTS24 contacts

SUPPLY24–28 Vdc

CURRENT0.24 A max

CONTACT IN0–32 Vdc

PDIAH1B configuration data: 24 contact inputs, 24–28 Vdc supply, 0.24 A maximum input current and a 0–32 Vdc contact-input interface.

Terminal-board configuration The I/O pack IS220PDIAH1B uses the contact-input terminal board for field wiring and contact wetting. STCIH1A/H2A and TBCIH2C differ from STCIH8A and TBCIH4C in their listed wetting-output current ratings.

GENERAL INFORMATION −

BrandGE

Part numberIS220PDIAH1B

Product typeDiscrete Input I/O Pack

Supply input24–28 Vdc, listed certified configurations

Input current0.24 A maximum

Contact-input voltage0–32 Vdc

CONTACT INPUT INTERFACE ＋

Input quantity24 contact inputs via the associated terminal board

Terminal-board familiesSTCIH1A, STCIH2A, STCIH8A, TBCIH2C and TBCIH4C

STCIH1A / H2A / TBCIH2CContact wetting output: 32 Vdc, 110 mA dc

WETTING & AMBIENT RATINGS ＋

STCIH8A / TBCIH4C, inputs 1–21Contact wetting output: 31 Vdc, 10 mA dc

STCIH8A / TBCIH4C, inputs 22–24Contact wetting output: 31 Vdc, 41 mA dc

Certified ambient temperature−30 to +65 °C for the listed combinations

Component technologySurface-mount components, H designation

Assembly coatingUncoated, IS220 designation

FIELD CONTACT APPLICATION ＋

Input devices: Relay contacts or switches connect through the matching STCI or TBCI terminal board; the selected terminal-board variant determines the contact-wetting arrangement.

Source: GEH-6721 Volume I, I/O Module Types; GEH-6725R, section 3.6; IECEx UL 21.0067X Issue 6, annex pages 1 and 6. Electrical and ambient ratings apply to the listed I/O-pack and terminal-board combinations.

FAQ

Questions Buyers Ask Most

What is the function of IS220PDIAH1B?＋

IS220PDIAH1B is a Mark VIe discrete input I/O pack. It handles 24 field-contact inputs through an associated STCI or TBCI terminal board; it is the I/O pack rather than the field termination board.

What power input is listed for IS220PDIAH1B?＋

IS220PDIAH1B is listed at 24–28 Vdc with a maximum input current of 0.24 A in the manufacturer-hosted IECEx electrical schedule. These values apply to the listed pack and terminal-board combinations.

Which terminal boards are listed with IS220PDIAH1B?＋

IS220PDIAH1B is listed with STCIH1A, STCIH2A, STCIH8A, TBCIH2C and TBCIH4C terminal-board variants. The exact IS200 or IS400 board number and the installed field circuit must match the applicable manufacturer configuration.

What contact-input voltage is documented for IS220PDIAH1B?＋

IS220PDIAH1B has a documented 0–32 Vdc contact-input interface in the listed IECEx configurations. The power-supply input and the field contact-input circuit have separate ratings.

How do the wetting outputs used with IS220PDIAH1B differ?＋

IS220PDIAH1B configurations using STCIH1A, STCIH2A or TBCIH2C list 32 Vdc and 110 mA dc for the contact-wetting output. STCIH8A or TBCIH4C configurations list 31 Vdc, with 10 mA dc for inputs 1–21 and 41 mA dc for inputs 22–24.

What ambient range is listed for IS220PDIAH1B?＋

IS220PDIAH1B appears in the −30 to +65 °C group in IECEx UL 21.0067X. This is the certified ambient range for the listed installation combinations; enclosure and installation conditions remain those specified by the manufacturer.

CONTACT PRODUCT SPECIALIST

Check your configuration with Frida

Share the complete order number and application details for compatibility, availability and lead-time checking.

CHOOSE A DIRECT CONTACT METHOD

sales5@mooreplc.com +86 153 5940 8275

DATA SHEET

Product Information for
IS220PDIAH1B

Official manufacturer-manual PDF status for GE IS220PDIAH1B.

Official manual PDF status

A direct manufacturer-hosted instruction-manual PDF covering IS220PDIAH1B was not located in the public documentation checked. For the applicable manual and product documentation, please contact Product Specialist Frida.

CONTACT FRIDA

Contact to Get Support

Send the complete model, quantity, and your technical or purchasing question.

EMAIL
sales5@mooreplc.com WHATSAPP
+86 153 5940 8275

GEH-6721 Volume I, I/O Module Types; GEH-6725R, section 3.6; IECEx UL 21.0067X Issue 6, annex pages 1 and 6. Electrical and ambient ratings apply to the listed I/O-pack and terminal-board combinations. The manufacturer-hosted IECEx schedule is a certification document, not a product instruction manual.

GE MARK VIE CONTACT-INPUT RELATIONSHIP

How IS220PDIAH1B Fits Mark VIe Contact Input

GE is the manufacturer brand; GE Mark VIe is the product family; and IS220PDIAH1B is the discrete input I/O pack for field-contact acquisition.

GE · BRAND

GE Mark VIeDiscrete Input I/O Pack

SYSTEM ROLE

Discrete Input I/O Pack

Acquires 24 contact inputs through the associated contact-input terminal board for the Mark VIe control system.

MODULE / CONFIGURATION

24 inputs · 24–28 Vdc supply

The listed certified configurations have a 0.24 A maximum input current and a 0–32 Vdc contact-input interface.

TERMINAL-BOARD INTERFACE

IS220PDIAH1B · Discrete Input I/O Pack

STCIH1A, STCIH2A, STCIH8A, TBCIH2C and TBCIH4C are listed associated terminal-board variants.

System relationship: field contacts terminate on the matching STCI or TBCI board; the PDIA I/O pack acquires the corresponding contact states for Mark VIe control.

APPLICATION AREAS

Application map for IS220PDIAH1B

Field Contact AcquisitionAcquire 24 relay-contact or switch inputs

Control-System MonitoringBring discrete field states into Mark VIe control

MARK VIE DISCRETE INPUT IS220PDIAH1B IS220PDIAH1B · Discrete Input I/O Pack

Terminal-Board InterfaceAcquire signals through the associated STCI or TBCI board

Contact-Wetting CircuitUse the matching terminal-board variant and its specified wetting-output arrangement.
