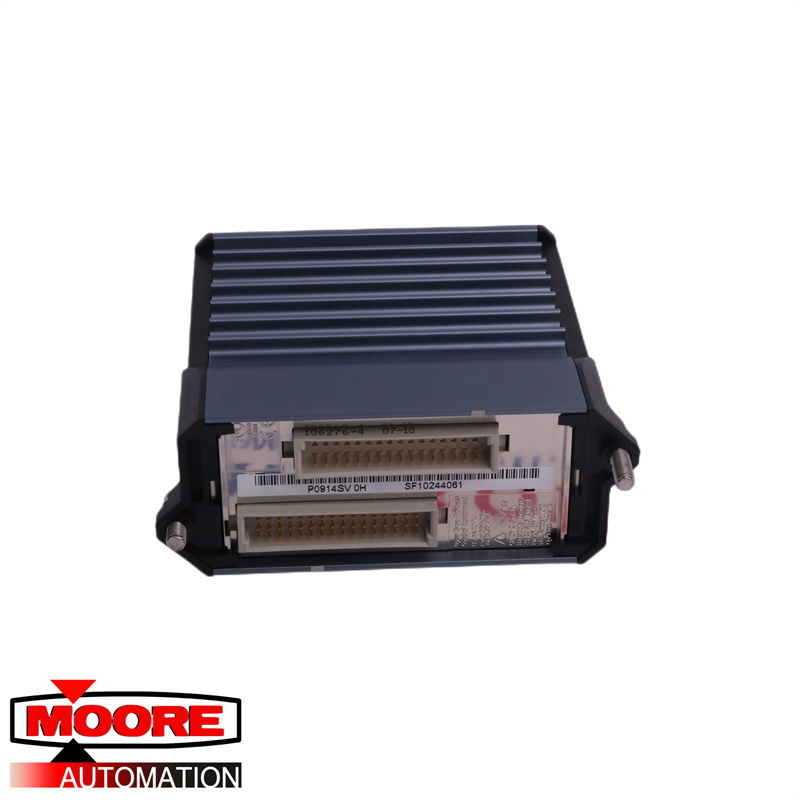

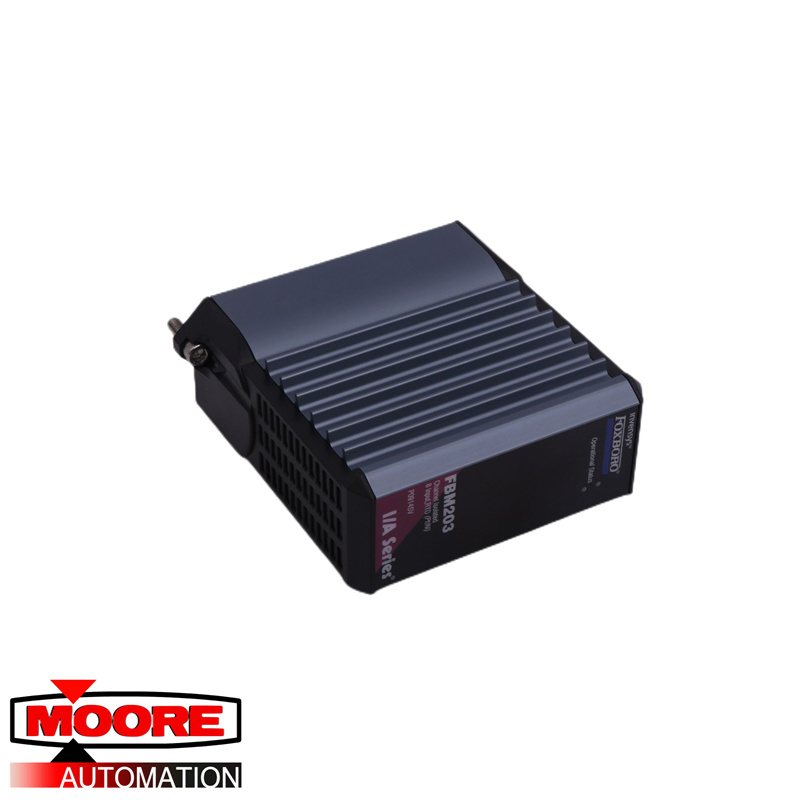

FOXBORO | FBM203 P0914SV | Channel Isolated 8 Input RTD

FBM 203 CHANNEL ISOLATED, 8 INPUT RTD, P/N - P0914SV
Each input channel of the FBM203/b/c modules accept a 2- or 3-wire RTD sensor input, within a 0 to 320 ohm (FBM203), 0 to 640 ohm (FBM203b), or 0 to 30 ohm (FBM203c) resistance range. Each input channel of the FBM203d accepts a 4-wire RTD sensor input, within a 0 to 320 ohm resistance range. Each analog input is galvanically isolated from other channels and ground.
The modules perform the signal conversion required to interface the electrical input signals from the field sensors to the optionally redundant fieldbus.
The FBM203/b/c/d modules execute an analog input application program, which provides conversion time (on a per module basis) and configurable options for Rate of Change Limits.
