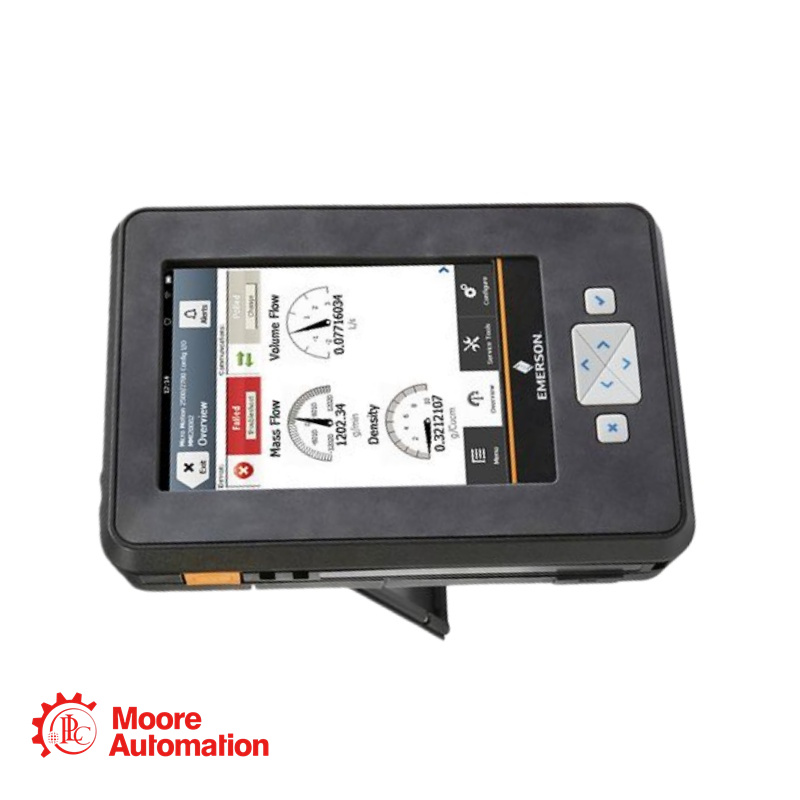

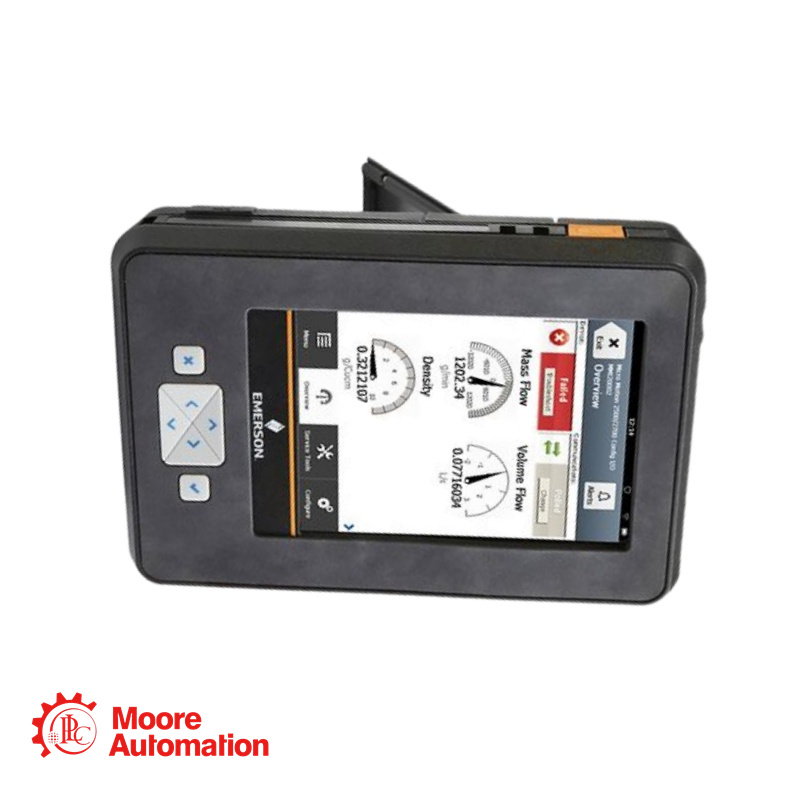

Emerson TREXLHPNAWS1S Device Communicator Plus Communication Module

★Contact for Quoting★

Sales Manager: Frida
Phone: +86 15359408275
Email: sales5@mooreplc.com
Address: Siming District, Xiamen, Fujian, China

Discover This Product

Specification:

Weight: Approximately 2.9 lbs (1330 grams)
Microprocessor: 800 MHZ ARM Cortex A8/NXP
Memory Internal Flash: 2 GB NAND and 32 GB extended flash
RAM: 512 MB DDR3 SDRAM
Display: 5.7 in (14.5 cm) color VGA resistive touchscreen
Battery: Operating Time8+ hours of typical use
Operating Temperature: -20 to 55°C (-4 to 122°F)
Enclosure Rating: IP54
Shock: Tested to survive a 1-meter drop test onto concrete

FAQ:

1. What is the TREXLHPNAWS1S Device Communicator Plus?
The TREXLHPNAWS1S Device Communicator Plus is a handheld, wireless HART communication module designed for field device configuration, diagnostics, and maintenance. It supports wireless communication, advanced diagnostics, and seamless integration with AMS Device Manager.
2. What device types does this communicator support?
The Device Communicator Plus supports HART-enabled field devices, including transmitters, actuators, valves, and control instruments.
3. What are the main advantages of the "power the loop" functionality?
No specialized tools required: The communicator can power the HART loop independently.
Simplifies field work: Eliminates the need for external power supplies or loop power tools.
Saves setup time: Technicians can start testing and configuring immediately without carrying extra accessories.
