Emerson KJ3002X1-BE1 provides eight isolated 4-20 mA HART outputs for reliable DeltaV process control and intelligent field-device integration applications worldwide.
Brand :
EmersonPart Number :
KJ3002X1-BE1 / 12P0682X052Weight :
0.65 kgDimension :
4.1cm x 10.7cm x 10.5cmCountry of Origin :
USAHS Code :
8537101190Description :

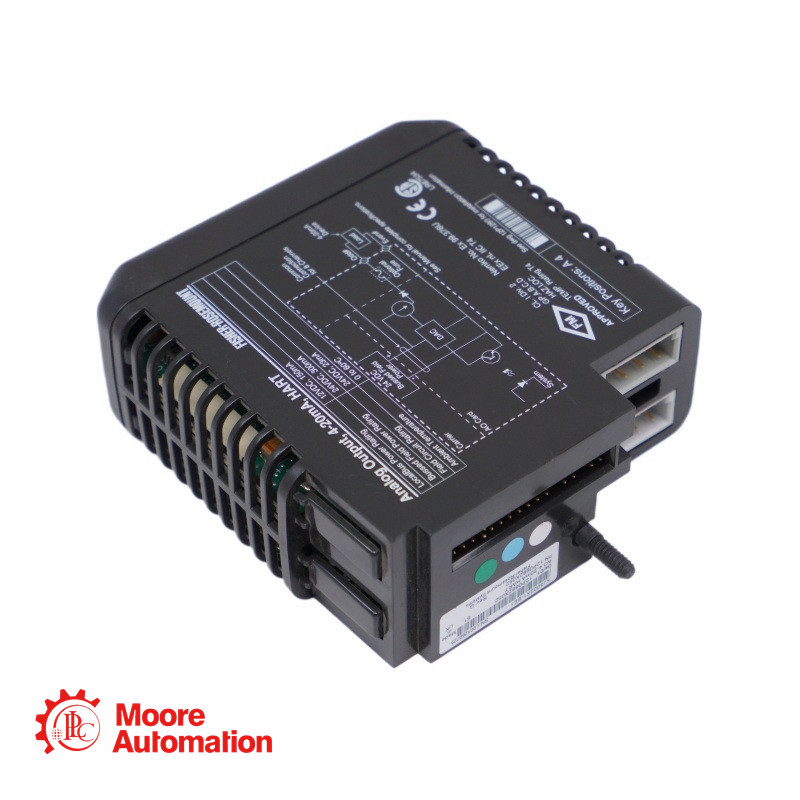

Eight-channel HART analog output module for Emerson DeltaV M-series process control systems
The Emerson DeltaV KJ3002X1-BE1, alternate part number 12P0682X052, is an eight-channel analog output module for M-series distributed control systems. It converts controller commands into isolated 4–20 mA signals for valves, positioners, drives, and other final control elements while supporting HART communication for diagnostics and device management. The module uses 12 VDC LocalBus power and 24 VDC field power and is intended for maintenance, replacement, and lifecycle support in process automation installations.
|
RFQ：please contact sales manager Nina |
||
|
Whatsapp：+86 18030235312 |
Email：sales8@askplc.com |
Address:Xiamen,Fujian,China |
Technical Parameters
Brand
Emerson
Output Signal Range
4–20 mA nominal; 1–23 mA full range
Model / Part Number
KJ3002X1-BE1 / 12P0682X052
LocalBus Power
12 VDC; 100 mA typical, 150 mA maximum
Product Type
Analog Output Module
Field Circuit Power
24 VDC ±10%; 300 mA maximum per card
Control System
Emerson DeltaV M-Series DCS
Accuracy / Resolution
0.25% of span / 12-bit
Number of Channels
8 isolated analog output channels
Isolation / Output Compliance
1500 VDC system isolation; 20 mA into 700 Ω at 21.6 VDC
|
FAQ |
|
Q1: What is the KJ3002X1-BE1 used for? |
|
It sends 4–20 mA control signals from a DeltaV controller to valves, positioners, converters, and other final control devices. |
|
Q2: Does KJ3002X1-BE1 support HART communication? |
|
Yes. It supports HART communication for intelligent field-device configuration, status monitoring, and diagnostic information. |
|
Q3: Can it replace another DeltaV analog output card directly? |
|
Replacement should be confirmed by exact part number, hardware revision, terminal block, keying arrangement, DeltaV software version, and channel configuration. |
|
Q4: What should be checked before installation? |
|
Check the 24 VDC field supply, output wiring, loop resistance, HART device compatibility, grounding, terminal block condition, and saved control-system configuration. |
|
