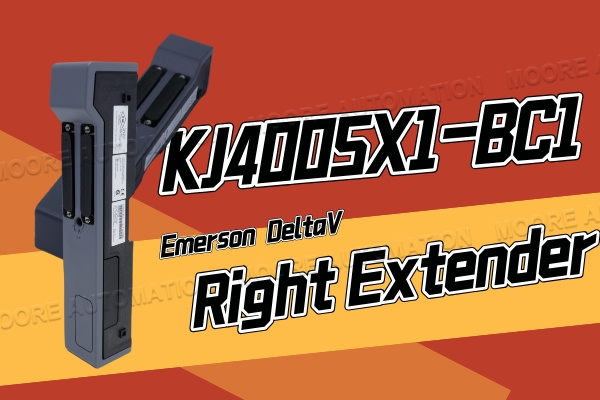

Detailed Analysis of Emerson KJ4005X1-BC1 Right Expander

Apr 23, 2025

Introduction

In the field of industrial automation, accurate power management and stable module expansion are essential. As a high-performance power expansion device, Emerson's KJ4005X1-BC1 right expander provides excellent support for various industrial control systems. This right expander not only optimizes power distribution, but also enhances the expansion capability of the system, helping enterprises to manage their automation systems more efficiently. This article will introduce the main features, parameters and practical applications of Emerson KJ4005X1-BC1 right expander in detail to help you better understand the important role of this product in modern industry.

Power and control parameters of KJ4005X1-BC1 right expander

Emerson KJ4005X1-BC1 right expander has multiple power and control functions, designed to support complex industrial systems. Its power input requires 24V DC power input, supports a maximum current of 8 amps, and can provide stable power for multiple control modules and devices. The backplane current of the expander is 15 amps, which ensures the current transmission stability of the overall system. In terms of design, KJ4005X1-BC1 provides a flexible power supply/controller carrier configuration, supporting two power modules, or a combination of a power module and a controller module.
For the power terminal plug, the maximum current supports 12 amps, which provides sufficient power for applications with high power requirements. At the same time, the power bus plug (with fuse) provides a current limit of 5 amps, further ensuring the safety and reliability of the system.

Bus power distribution capacity of KJ4005X1-BC1 right expander

The bus power distribution capacity of KJ4005X1-BC1 right expander is very powerful, with a power distribution capacity of 12 amps for each main/auxiliary 24V DC bus. This means that each bus can provide sufficient power support for multiple modules, and at the same time, the maximum current of each module does not exceed 3 amps. This design ensures that the system can balance power demand and avoid overload during operation, thereby improving the stability and life of the equipment.
In addition, the right expander supports up to 8 I/O modules and has extremely high expansion capabilities. For automation systems that require a large number of input and output modules, KJ4005X1-BC1 undoubtedly provides an ideal solution. This high degree of scalability allows enterprises to flexibly adjust system configurations according to actual needs.

Reliability and application scenarios of Emerson KJ4005X1-BC1

As an industrial-grade power expander, the design of Emerson KJ4005X1-BC1 fully considers the application requirements in harsh environments. Whether in high temperature, humidity, dusty environments, or in scenarios that require long-term high-load operation, KJ4005X1-BC1 can ensure stable operation.
This reliability makes it the preferred equipment in many fields, especially in petrochemical, power, steel, automobile and other industries. KJ4005X1-BC1 is widely used in automation control systems, data acquisition systems, and production process monitoring. By using KJ4005X1-BC1, enterprises can achieve more efficient power management, reduce system failure rates, and improve production efficiency.

Ease of installation and maintenance of KJ4005X1-BC1

The installation process of the KJ4005X1-BC1 right expander is relatively simple, and it is suitable for rapid deployment in various industrial environments. The modular design makes the expander compatible with different types of control systems, and no complicated adjustments are required during installation, so it can be put into use quickly. In addition, the maintenance of KJ4005X1-BC1 is also very convenient. Regular inspections and simple power supply tests can ensure the long-term stable operation of the equipment.

Cost-effectiveness analysis of KJ4005X1-BC1

Although the initial investment of the KJ4005X1-BC1 right expander may be high, its long-term cost-effectiveness cannot be ignored. The high reliability, excellent expansion capability and low maintenance cost of the equipment enable enterprises to save a lot of maintenance and repair costs. In addition, the modular design of the expander makes future upgrades and expansions easier, thereby extending the life cycle of the system. In summary, KJ4005X1-BC1 can not only help enterprises improve work efficiency, but also effectively reduce long-term operating costs.

Conclusion

Emerson KJ4005X1-BC1 right expander has become an indispensable part of modern industrial automation systems with its powerful power management capabilities, excellent reliability and high scalability. Whether it is used for power distribution, module expansion, or providing stable support in various industrial environments, KJ4005X1-BC1 performs particularly well. For companies pursuing efficient and stable industrial control systems, this right expander is undoubtedly an ideal choice.
