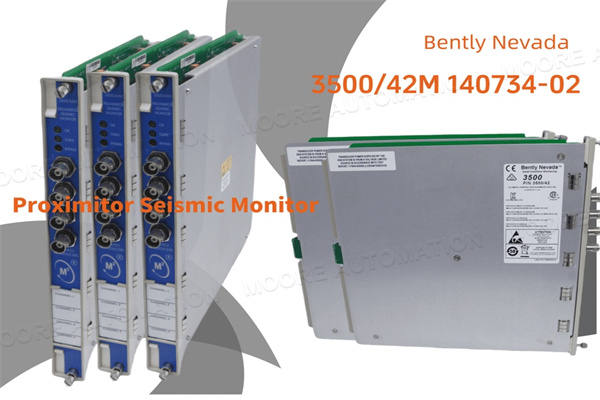

Bently Nevada 3500/42M 140734-02 Proximity Seismic Monitor: A Precision Solution for Industrial Vibration Monitoring

May 08, 2025

Introduction

In heavy industries such as oil & gas and power generation, vibration monitoring of mechanical equipment is critical for preventing failures and ensuring safe operation. The Bently Nevada 3500/42M 140734-02 Proximity Seismic Monitor is a high-precision sensor specifically designed to detect seismic vibrations and displacement, particularly suitable for high-speed rotating equipment like turbines, compressors, and generators. This device provides real-time vibration data to help engineers optimize maintenance strategies, reduce unplanned downtime, and extend equipment lifespan.
This article details the 3500/42M 140734-02's features, technical specifications, applications, and FAQs to help you understand its importance in industrial monitoring.

Role and Advantages of Proximity Seismic Monitors

Seismic Monitors are primarily used to measure low-frequency vibrations and mechanical displacement, making them ideal for base vibration monitoring of large rotating equipment. Unlike standard accelerometers, the 3500/42M 140734-02 offers these key advantages:
✔ High-precision measurement: Detects vibrations from 0.1 Hz to 1 kHz, suitable for both low- and high-speed equipment
✔ Wide dynamic range: Supports ±2g to ±50g vibration measurement for diverse industrial applications
✔ Strong anti-interference: Electromagnetic shielding design minimizes environmental noise impact
✔ Easy integration: Compatible with Bently Nevada 3500 monitoring systems, supporting 4-20mA or Modbus output
Typical applications:
Base vibration monitoring for gas & steam turbines
Mechanical health analysis of large compressors and pumps
Critical equipment protection in power plants and refineries

Detailed Technical Specifications of 3500/42M 140734-02

Electrical Characteristics
Parameter Specification
Measurement Range ±2g / ±10g / ±50g (configurable)
Frequency Response 0.1 Hz – 1 kHz (±3dB)
Output Signal 4-20mA / RS-485 Modbus
Supply Voltage 18-30V DC
Accuracy ±1% FS (Full Scale)
Mechanical & Environmental Specifications
Parameter Specification
Protection Rating IP67 (dust/waterproof)
Operating Temperature -40°C to +85°C
Shock Resistance 100g (11ms half-sine)
Mounting Method Bolt fixation (M8 thread)
Compatibility
Works with Bently Nevada 3500 monitoring framework
Can be paired with 3300XL sensors
Supports integration with third-party PLC/DCS systems

Real-World Applications of Bently Nevada 3500/42M 140734-02

Case 1: Gas Turbine Vibration Monitoring
A power plant installed 3500/42M 140734-02 on 4 gas turbines
Real-time base vibration monitoring predicted bearing wear 3 weeks in advance
Reduced 30% unplanned maintenance costs
Case 2: Oil Pipeline Compressor Protection
Deployed 3500/42M 140734-02 on 10 centrifugal compressors
Integrated with 3500 monitoring system for automatic alarms

Prevented 2 major mechanical failures, saving $500,000+ in repair costs

Installation & Maintenance Recommendations for 3500/42M 140734-02

Installation Guidelines
Location: Install close to vibration sources to avoid structural resonance effects
Cabling: Use shielded cables, keep away from strong EMI sources
Calibration: Perform zero calibration and sensitivity testing after initial installation
Maintenance Tips
✔ Check sensor mounting bolts every 6 months for looseness
✔ Perform calibration verification annually
✔ Monitor data trends and investigate anomalies promptly

Conclusion: Why Choose the 3500/42M 140734-02?

The Bently Nevada 3500/42M 140734-02 is a benchmark product in industrial vibration monitoring. Its high accuracy, strong anti-interference capability, and broad compatibility make it the ideal choice for turbines, compressors, and power generation equipment.
