Bently Nevada 330172-00-08-10-01-05 Armored 3300 5 mm Proximity Probe

330172-00-08-10-01-05 is a Bently Nevada 3300 5 mm noncontacting proximity probe that senses shaft-to-probe distance for radial vibration, axial position, Keyphasor or speed measurement. This armored 1.0 m probe must operate with a compatible extension cable and 330180 Proximitor Sensor.

The code specifies 0.0 in unthreaded length, 0.8 in overall case length, 1.0 m total length, option-01 ClickLoc connector with protector and standard cable, plus option-05 multiple approvals. The 1/4-28 mounting thread, cable route and approval markings must match the installation.

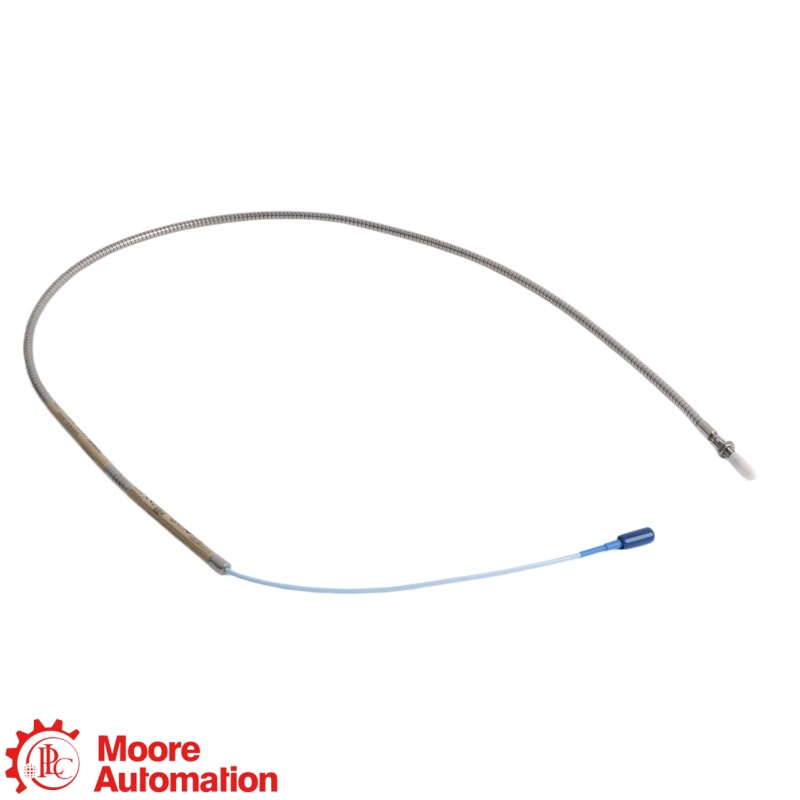

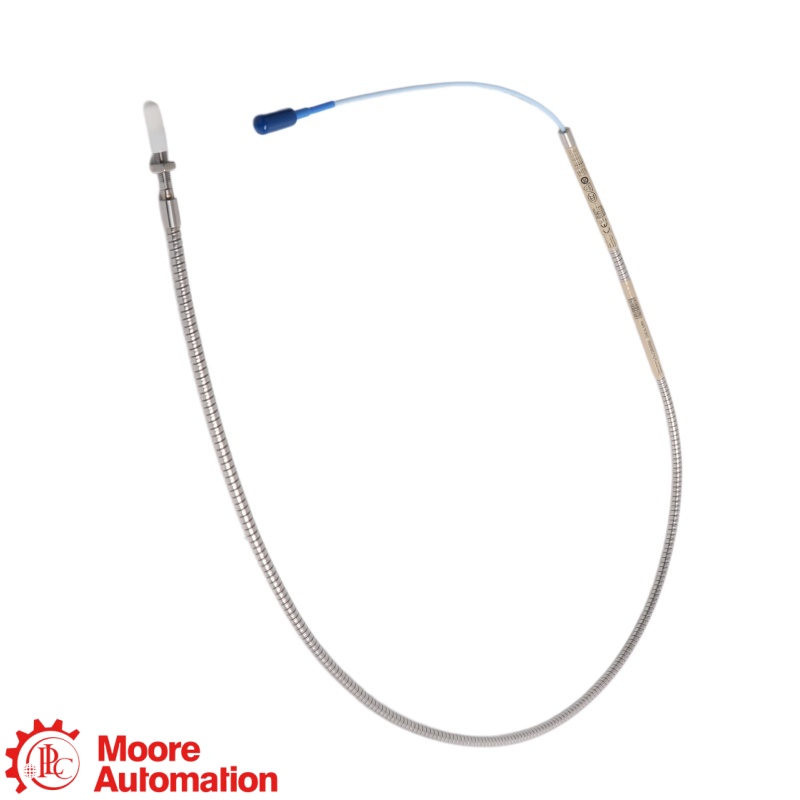

330172-00-08-10-01-05 is the 330172 version with flexible stainless-steel cable armor; 330171 is supplied without armor. The sensing system is otherwise selected by probe geometry, total length, connector, extension cable and Proximitor compatibility, so armor alone is not the only replacement criterion.

No. 330172-00-08-10-01-05 is only the probe component. A complete 3300 5 mm measurement chain requires a matching 3300 XL extension cable and 330180 Proximitor Sensor, with probe plus extension cable totaling the configured 5 m or 9 m system length.

Not automatically. Although the 3300 5 mm system provides a 2 mm linear range similar to an 8 mm system, the probe body, connector, extension cable, Proximitor calibration and installation clearances must match the 3300 5 mm platform. Treat it as a complete-system compatibility decision.

Confirm the full part number, armored construction, 1/4-28 mounting thread, maximum 0.375 in thread engagement, 1.0 m probe length, extension-cable length, 330180 Proximitor, 1.27 mm recommended gap, target material and size, tip spacing, temperature and approval requirements.
